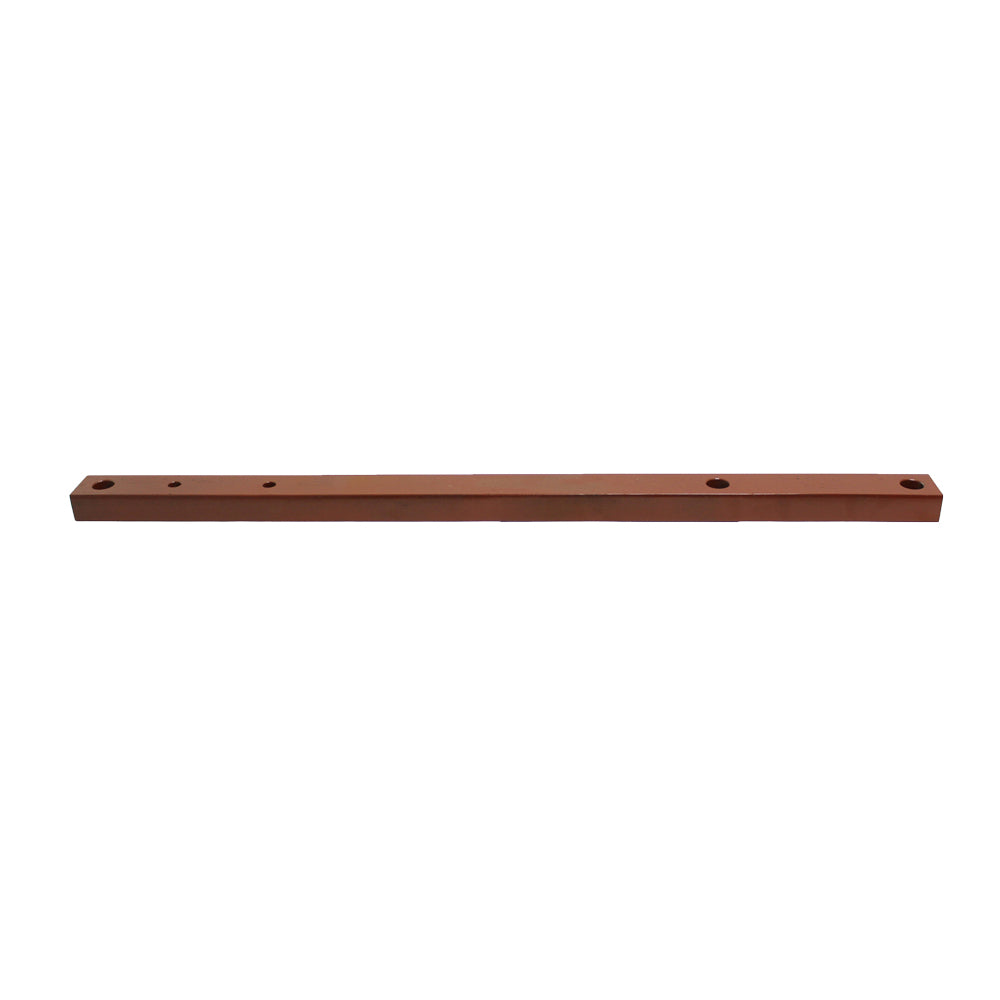

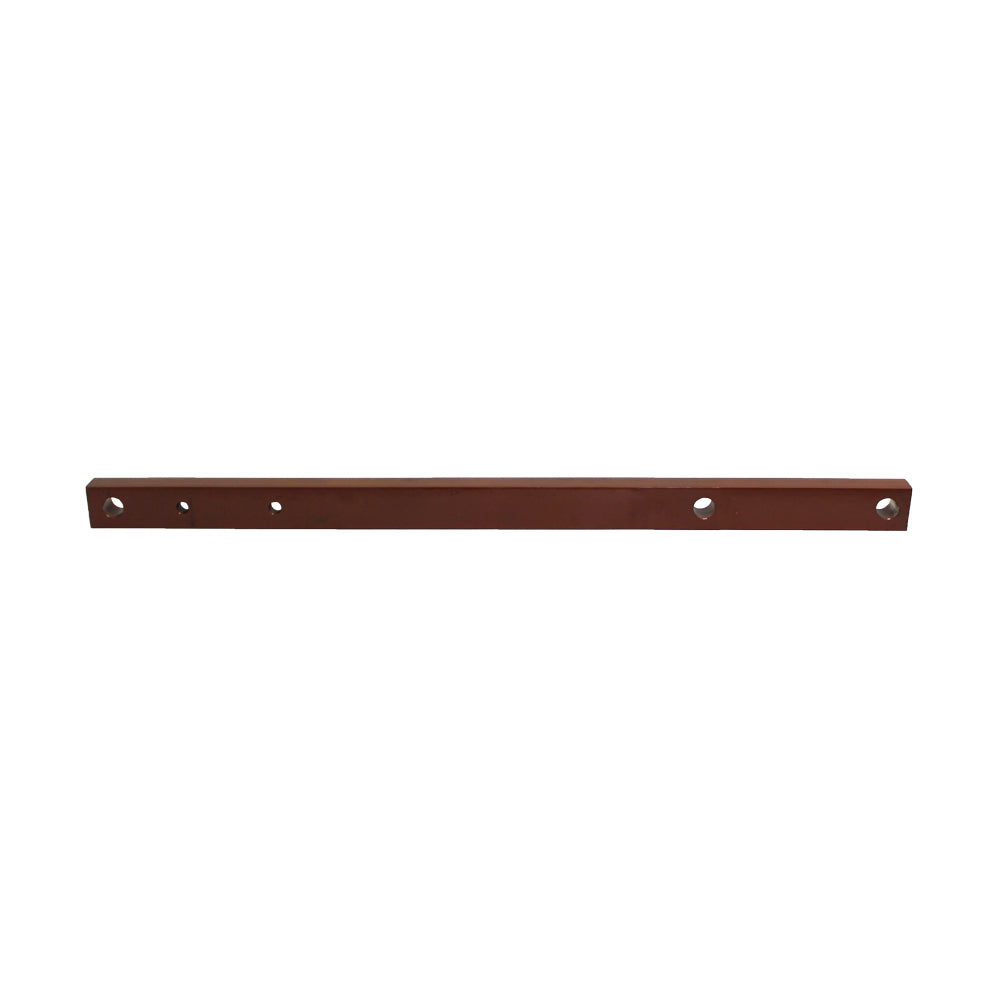

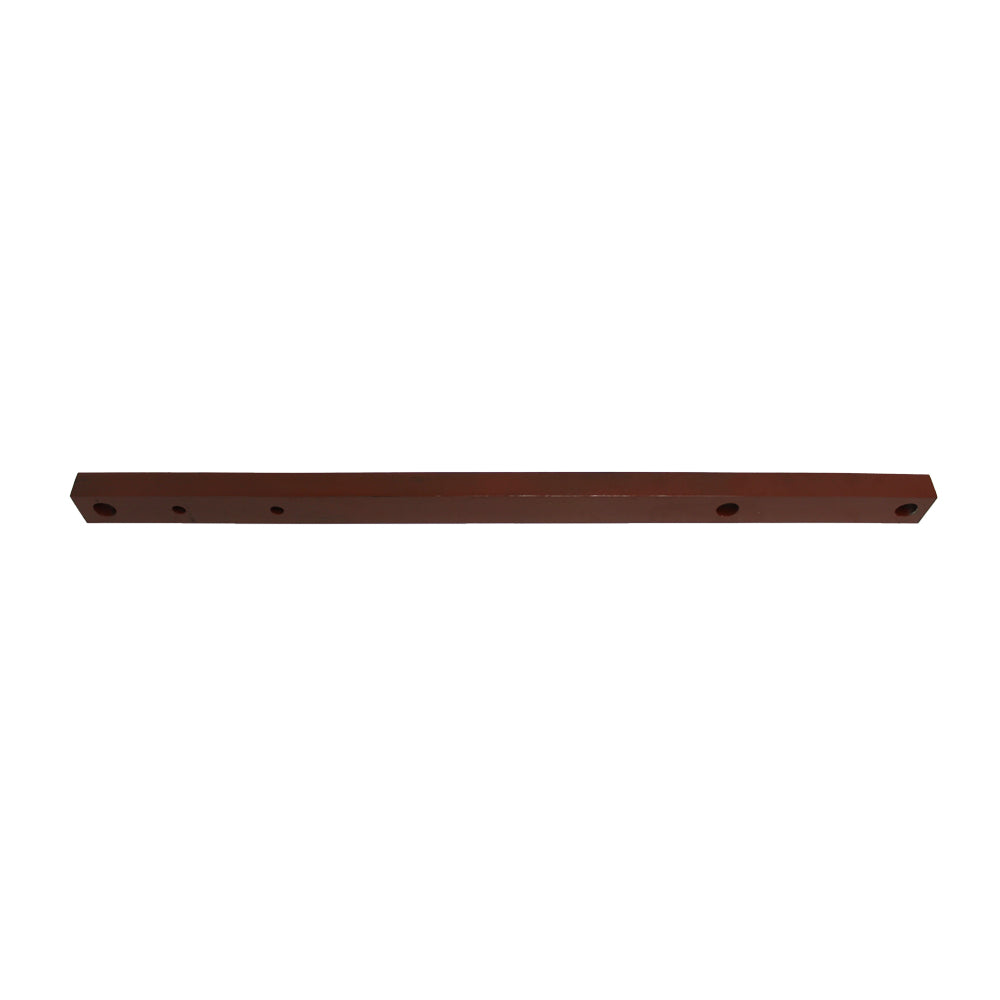

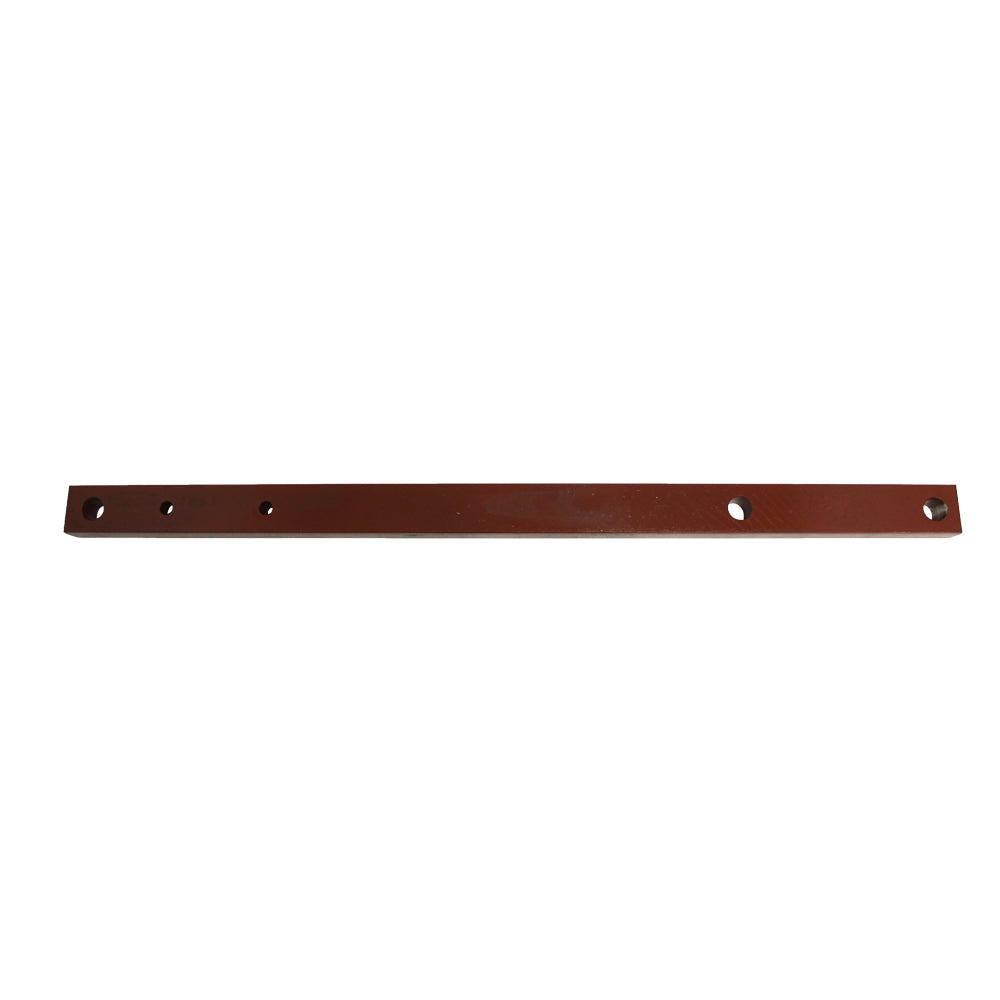

One New Aftermarket Replacement Drawbar for Case IH / International Harvester Tractors

This rear straight drawbar is a direct aftermarket replacement for International Harvester and Case IH tractors. It mounts to the rear hitch assembly and provides the towing and implement-attachment point for the tractor. Note: this single-piece bar can also replace the two-piece assembly (bar 397065R1 and tube 393501R11).

Serial Number Restrictions: Fits International 766 up to SN 13892; fits International/Case IH 966 up to SN 270896.

Specifications

Length: 45-3/4"
Width: 2-1/2"
Height: 1-5/8"
(3) Mounting holes with I.D. of 1-3/16"
(2) Mounting holes with I.D. of 0.665"
(2) Mounting holes located 1-1/2" to center on both ends
(1) Mounting hole located 11-9/16" to center from end

Compatible Models

International Harvester (IH) / Case IH: 706, 756, 766 (SN up to 13892), 806, 826, 856, 966 (SN up to 270896), 1026

Replaces Part Number(s):

381706R2, 381706R1, 393150R1, 393501R11, 397065R1

Aftermarket Interchange Numbers

A-381706R2, 393150R1-A, 393501R11-A, 397065R1-A

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

756, 766, 826, 706, 1026, 806, 966, 856

Additional Information:

Length: 45-3/4" Width: 2-1/2" Height: 1-5/8" (3) of the Mounting Holes have I.D. of 1-3/16" (2) of the Mounting Holes have I.D. of 0.665" (2) of the Mounting Holes are located 1-1/2" to center on both ends (1) of the Mounting Holes is located 11-9/16" to center from end
