90850C92 Disc Opener Assembly 14 Inch X 3.5 MM Fits Case IH 800 900 950 Planters
90850C92 Disc Opener Assembly 14 Inch X 3.5 MM Fits Case IH 800 900 950 Planters
Couldn't load pickup availability

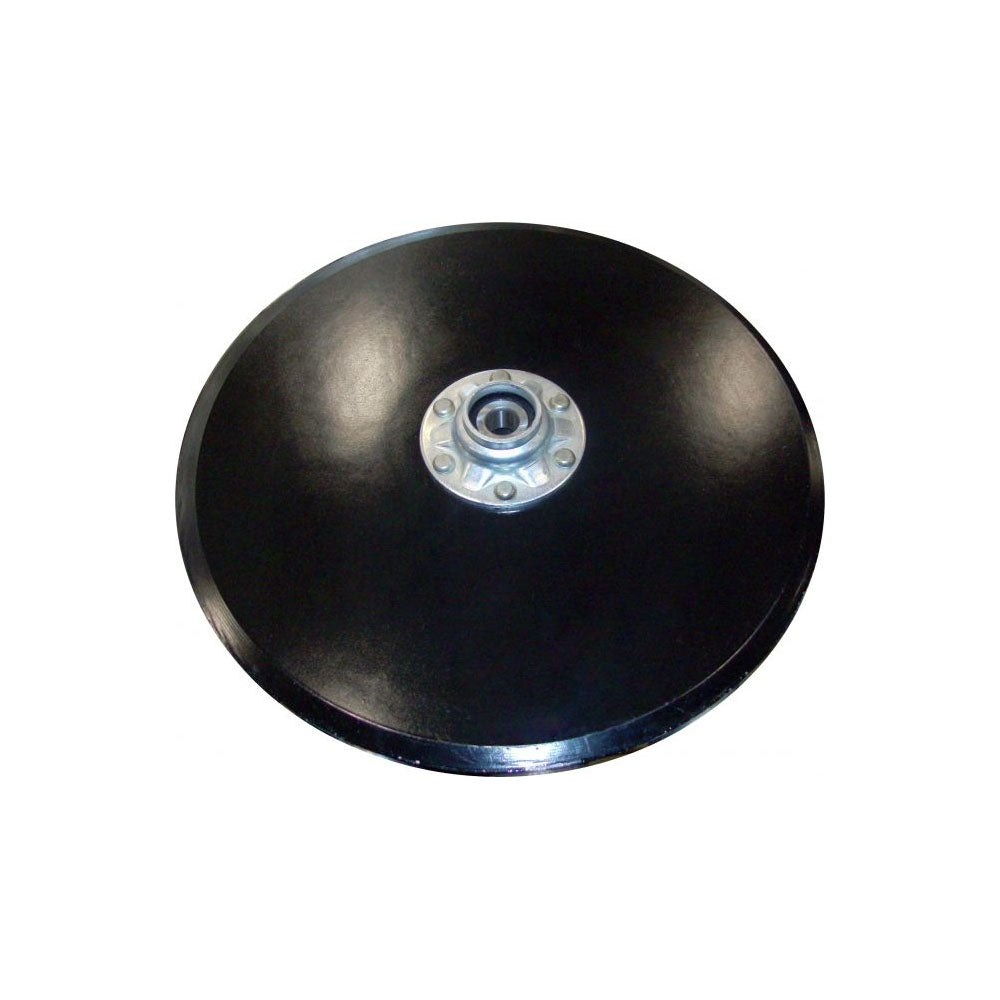

One New Aftermarket Replacement Left-Hand Disc Opener Assembly Fits Case IH (Fits Case/International Harvester) Planters and Grain Drills
This 14-inch x 3.5 mm heavy-duty left-hand (LH) seed disc opener assembly is a direct replacement Fits Case IH (Fits Case/International Harvester) planters and grain drills. The left-hand orientation means the taper is on the same side as the hub. The assembly includes a 3.5 mm thick blade, 204PY3 bearing, bearing retainer/hub, and dust cap (204WC). It mounts with a 5/8 in. x 1-5/8 in. bolt using 5/16 in. diameter rivets.
Specifications
- Blade Diameter: 14 in.
- Blade Thickness: 3.5 mm
- Hand: Left-Hand (LH) -- taper on same side as hub
- Bearing: 204 series single-row (204PY3)
- Dust Cap: 204WC included
- Mount Bolt: 5/8 in. x 1-5/8 in.
- Rivet Diameter: 5/16 in.
Compatible Models
Fits Case IH / Fits Case/International Harvester Planters: 800, 900, 950, 955, 1200, 1200PT, 1210, 1215, 1220, 1225, 1230, 1235, 1240, 1245, 1250, 1255, 1260, 1265, SP280, SP380, SP480, SP580, SP1200
Fits Case IH / Fits Case/International Harvester Grain Drills: 5200 (Soybean Special), 5400 (Soybean Special), 5500 (Soybean Special), 6300 (Soybean Special)
Fits New Holland: Compatible -- verify model with Fits New Holland parts lookup
Replaces Part Number(s):
90850C92, 90850C91, 84389196, 84898916, 84389196, SH90850, SH84196, SMA90850, A600160, 864SMA90850, 864-SMA90850, 2240864-SMA90850, FC801, 514-IH204C, 149171C1, 149171C2, 1344911C3
Aftermarket Interchange Numbers
A600160, FC801, P140IHL, 90850C1, F210L, 14035DIH4LB
New aftermarket replacement part - not remanufactured, not used.
