Disc Opener Assembly for Tye Grain Drills 540-012

Name: Disc Opener Assembly for Tye Grain Drills 540-012
SKU: DPE70-0007
Price: 68.0 USD
Availability: InStock

Disc Opener Assembly for Tye Grain Drills 540-012

£68.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

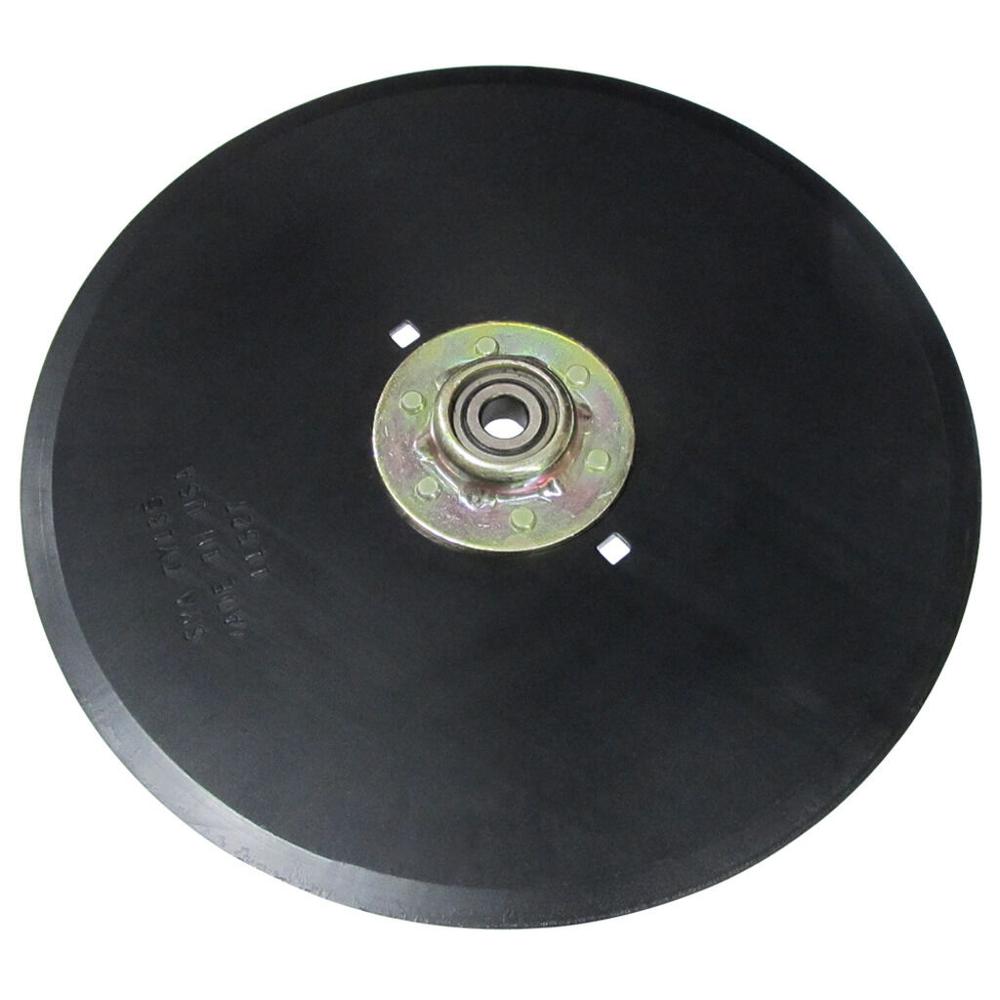

One New Aftermarket Replacement Disc Opener Assembly for Tye and Fits John Deere (Fits JD) Grain Drills

This aftermarket replacement disc opener assembly fits Tye and Fits John Deere (Fits JD) grain drills and planters. The double disc opener cuts a furrow in the soil for precise seed placement, forming the foundation of the seeding system on these drills. Built with a heavy-duty 13-1/2 inch x 3mm flat blade, a 5/8 inch ID ball bearing (204PY2), and 1/4 inch rivets for reliable field performance. Does not use a dust cap.

Specifications

Disc Diameter: 13-1/2 inch (13.5")
Blade Thickness: 3 mm
Bearing: 5/8 inch ID Ball Bearing (204PY2)
Rivets: 1/4 inch
Uses Dust Cap: No
Weight: approx. 5.51 lbs

Compatible Models

Tye Grain Drills: Most Models

Fits John Deere Grain Drills and Planters: 450, 515, 520, 770, 780, 1060, 8000, 8000 Series, 8100, 8200, 8250, 8300, 8350, 8500, 9000, 9000 Series, 9400, 9450, BD1108, BD1110, BD1113

Replaces Part Number(s):

540-012, 550-647, KK254M, KK255M

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

9000, 8200, 8300, 9450, 8100, 450, Multiple, BD1108, 8000, 8250, 8500, BD1110, 1060, 770, 8000 Series, 9000 Series, 515, 9400, 520, 8350, 780, BD1113

Additional Information:

13-1/2 inch x 3mm HD Disc Opener Assembly, 5/8 inch ID Ball Bearing (204PY2) and 1/4 inch Rivets. Diameter: 13-1/2 Inch Thickness: 3 MM Uses Dust Cap: No
