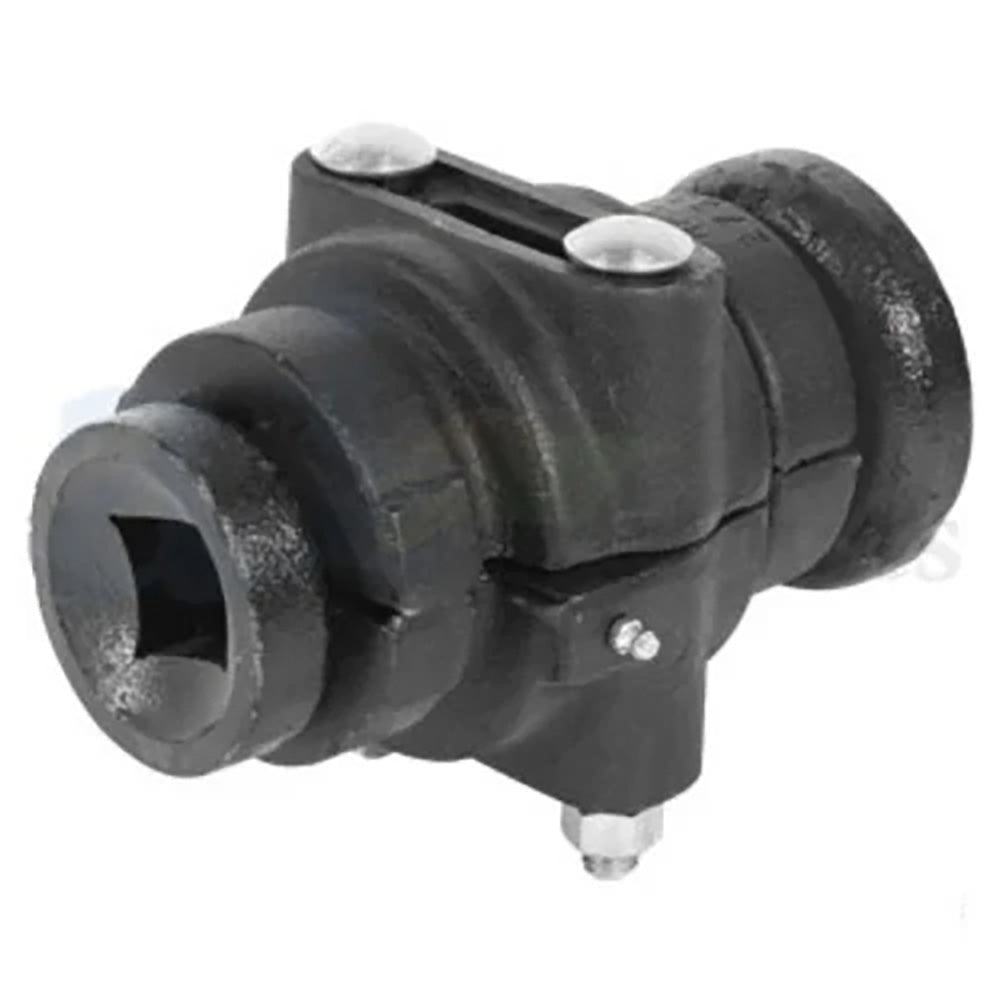

Disc Harrow Bearing Cap and Spool Kit For 1" Square Axles{3013-0515}

One New Aftermarket Replacement Disc Harrow Bearing Cap and Spool Kit for 1" Square Axles

This universal-fit cast steel disc harrow bearing cap and spool kit restores proper disc rotation on tillage equipment equipped with 1" square axles. The kit mounts between disc blades on the axle gang, providing a lubricated bearing surface that keeps blades spinning freely and cutting efficiently through soil. Compatible with King Kutter angle frame disc harrows and most other disc harrows using 1" square axles. Grease before each use and periodically during field operation to prevent premature wear.

Kit Includes

• One (1) ribbed center spool with 1" square bore
• Two (2) cast bearing caps with grease fittings (zerks)
• Two (2) mounting bolts with nuts and washers

Specifications

• Axle Size: 1" square bore
• Spool Length: approximately 7.375" (7-3/8")
• Bolt Spacing: approximately 3.00" center to center
• Material: Cast steel

Compatible Equipment

Universal Fit - Disc Harrows with 1" Square Axles: King Kutter angle frame disc harrows and most disc harrows using 1" square axle gangs. Verify axle size and bolt spacing before ordering.

Replaces Part Number(s):

VLH6710, VLH6710-A

Aftermarket Interchange Numbers

HII90-0006, 3013-0515, King Kutter 504110

New aftermarket replacement part - not remanufactured, not used.
