AM116299 M111489 Deck Gauge Wheel Kit John Deere X300 X320 X340 X350 Mower
AM116299 M111489 Deck Gauge Wheel Kit John Deere X300 X320 X340 X350 Mower
Couldn't load pickup availability
What You Receive

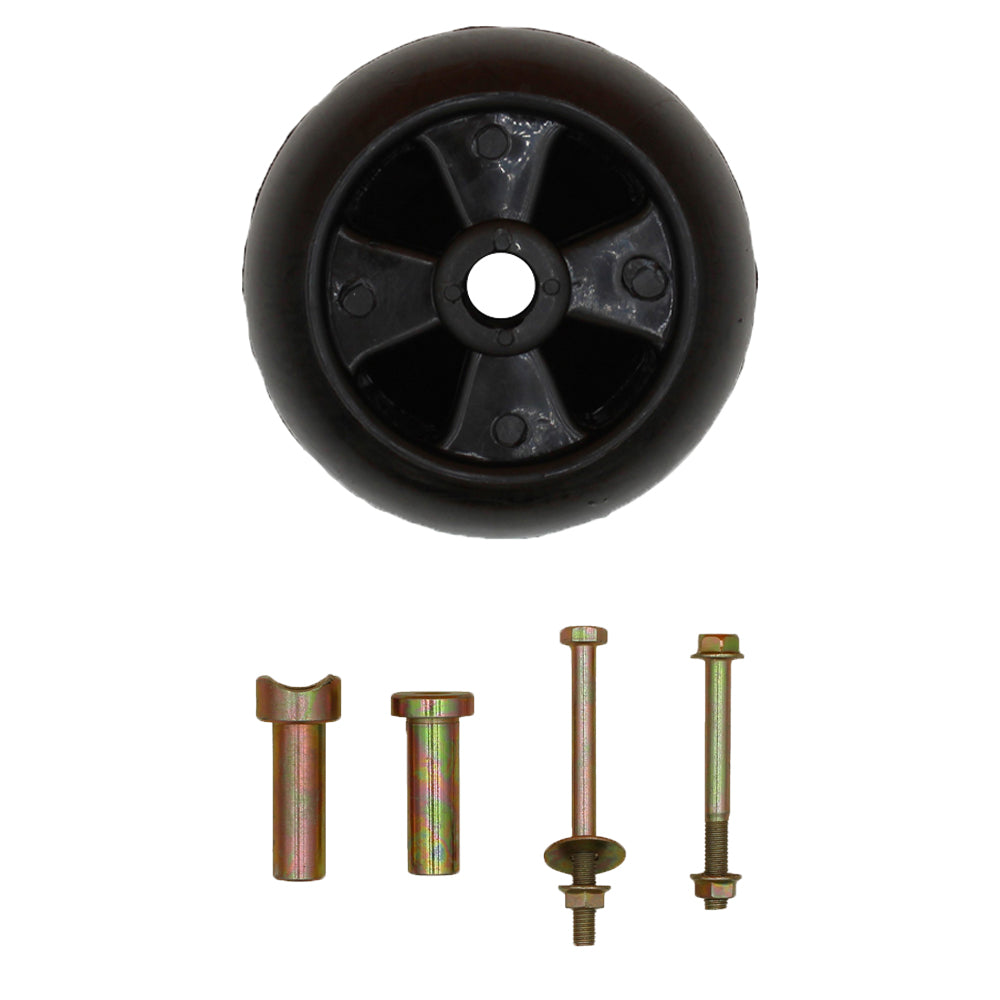

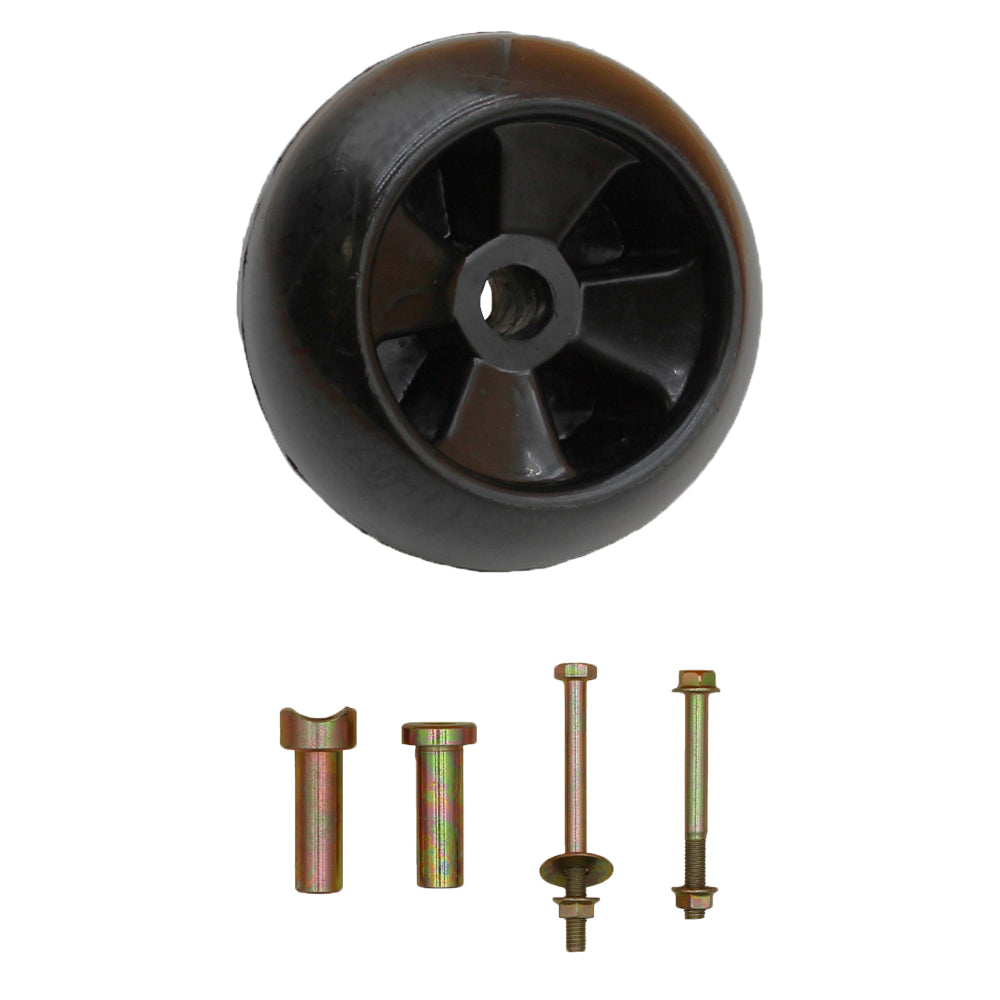

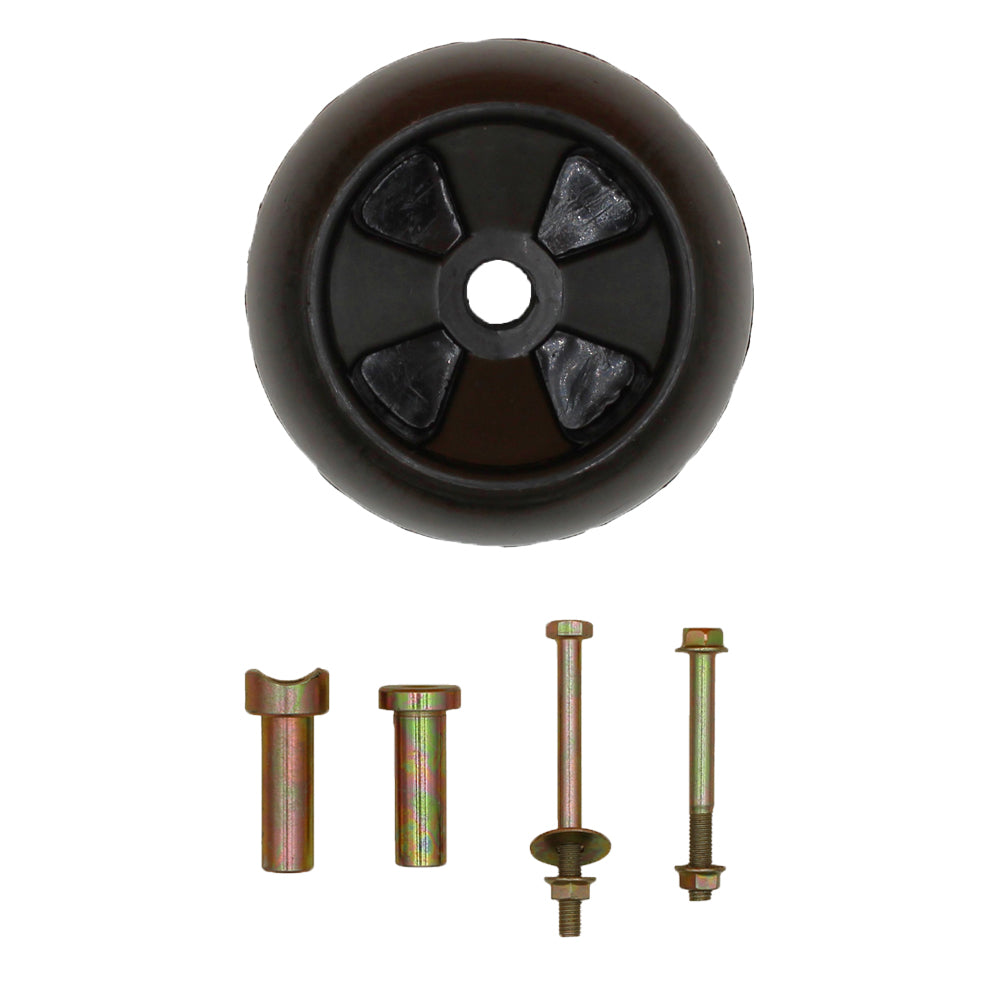

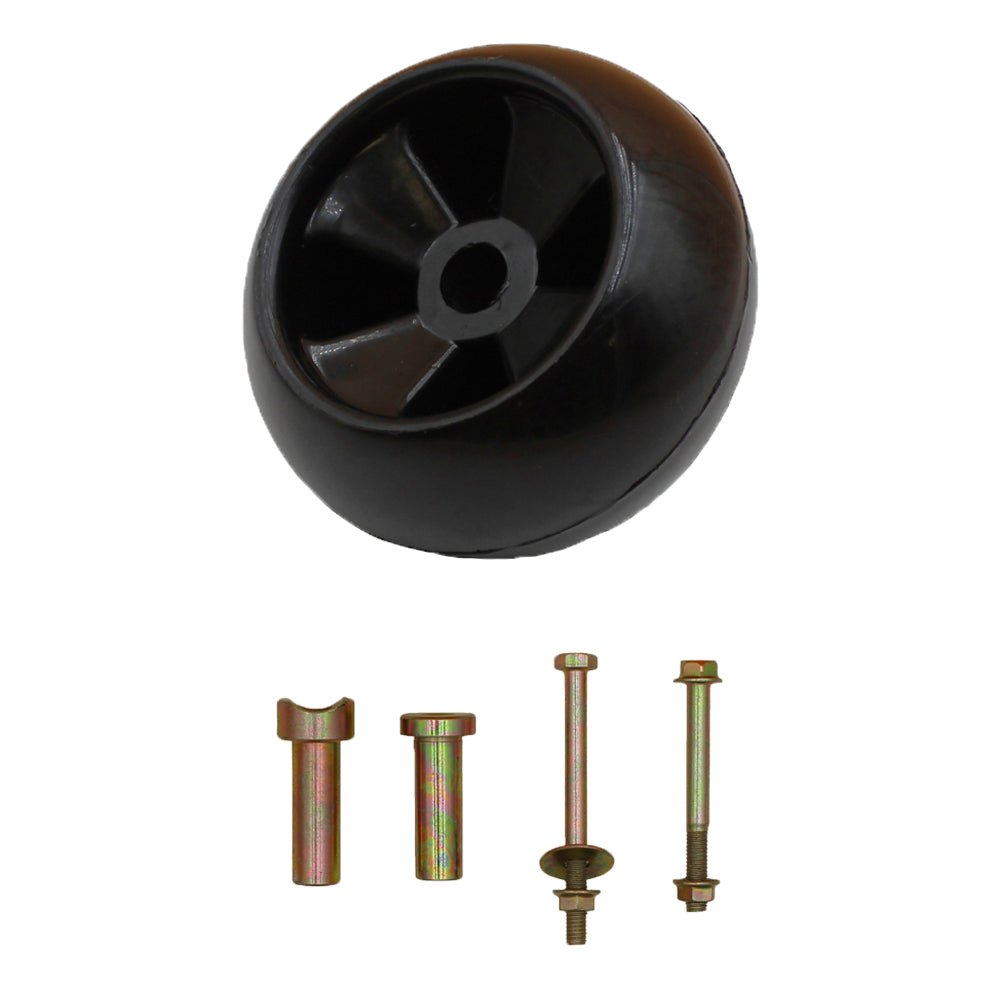

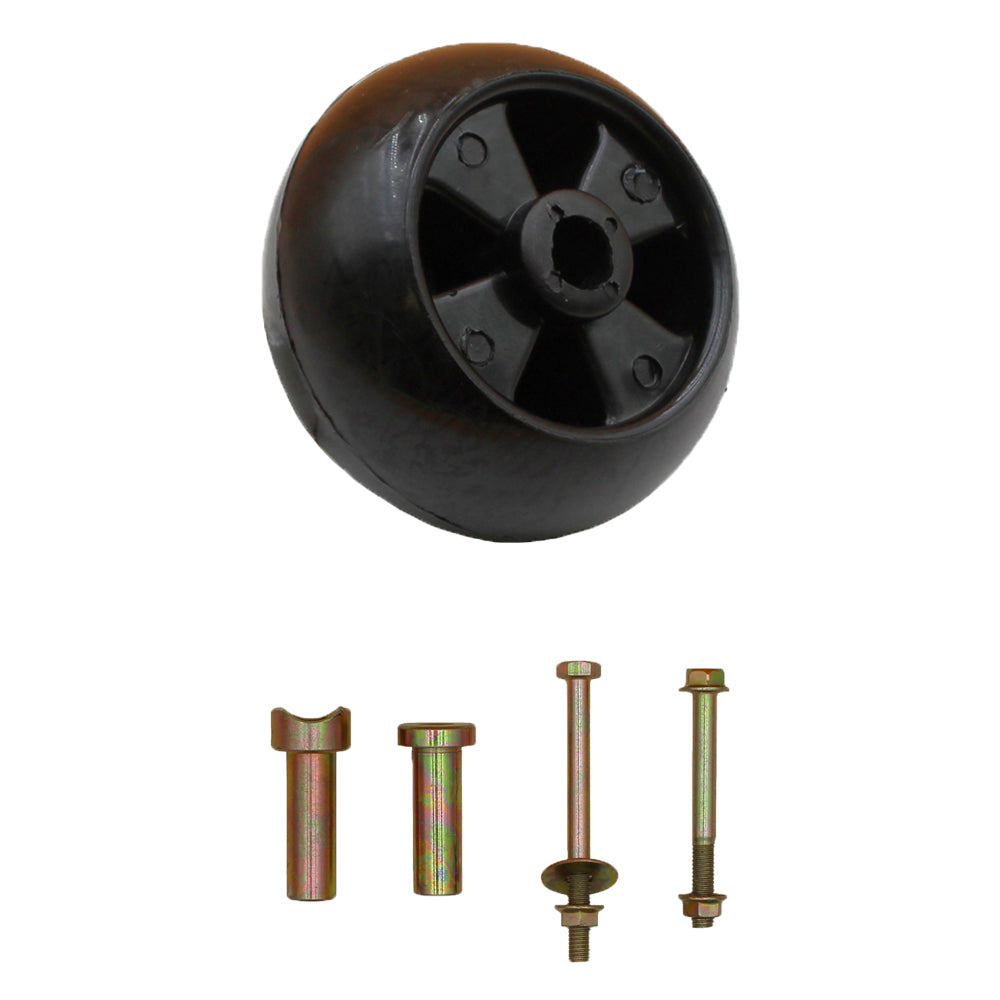

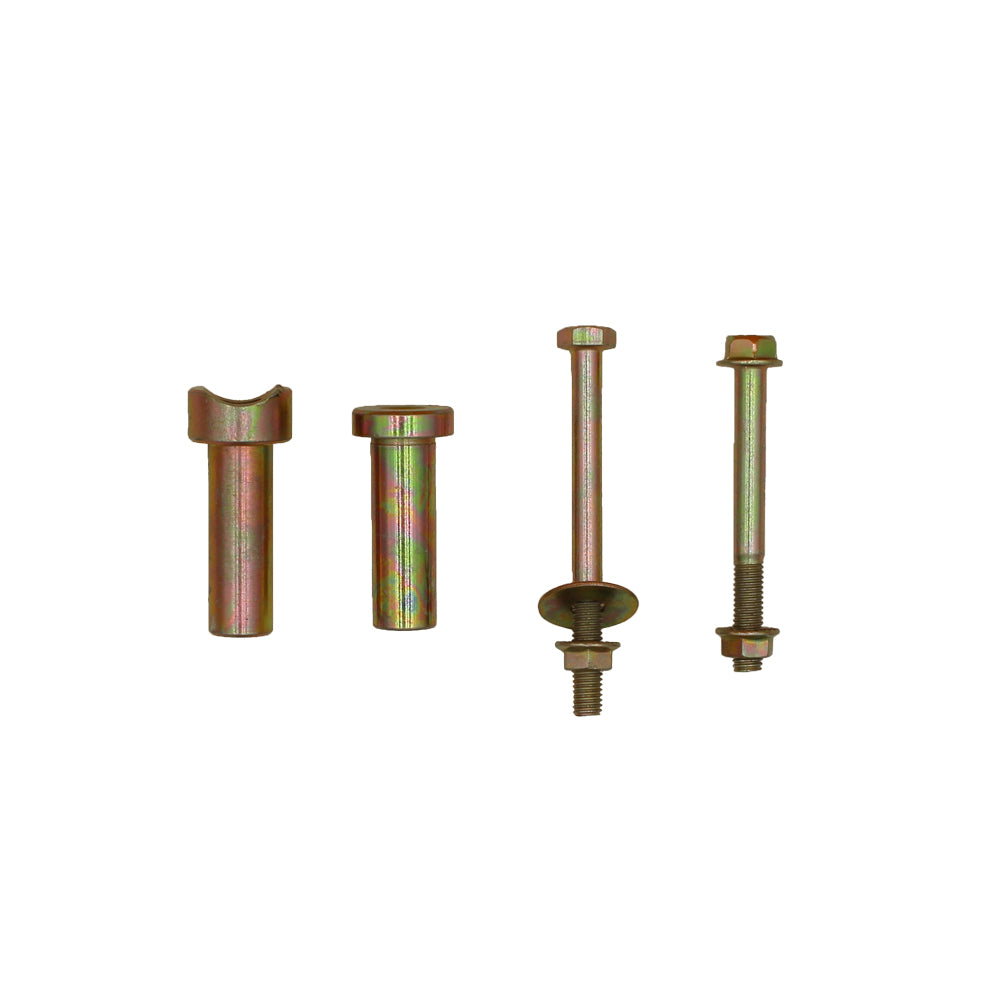

This is one complete deck gauge wheel kit for John Deere mower decks. It includes a single 5 inch gauge wheel along with the mounting bushings and the bolt and nut hardware used to attach it to the deck bracket. It is the aftermarket equivalent of the John Deere AM133602 Service Gauge Wheel Assembly Kit, which supplies the AM116299 and M111489 gauge wheel together with the adapters and bolts needed for the different deck brackets John Deere used across these machines.
What It Does
Gauge wheels, also called anti-scalp or deck leveling wheels, mount at the edge of the mower deck and roll just above the ground. On uneven lawns, dips, and slopes they keep the deck shell and blades from digging into the turf, which protects the grass from scalping and helps hold an even cutting height for a cleaner finish. Worn, cracked, or seized gauge wheels are a common cause of scalped stripes, so replacing them restores a consistent cut.
Fitment
This kit fits John Deere X300, X300R, X304, X305R, X310, X320, X340, and X350 tractors equipped with 42, 48, and 54 inch mower decks. The same 5 inch wheel is used across a much wider range of John Deere riding mowers, lawn tractors, garden tractors, and zero-turn decks in sizes up to 72 inches, so it also serves as a replacement on many other John Deere machines. Match your deck size and the existing wheel before ordering.
Specifications
The wheel is about 5 inches in outer diameter with a 5/8 inch center bore and an offset hub style. It has a smooth tread and a black finish and carries no bearing. Wheel width is listed at roughly 2.5 to 2.75 inches depending on the reference. The kit adds the bushings and the bolt and nut hardware required to mount the wheel.
Cross Reference
Replaces John Deere AM116299, AM133602, and M111489, and crosses to John Deere M84690. The wheel portion also interchanges with Case 25139 and Grasshopper 484225 on equipment that uses this common 5 inch deck wheel.
Ordering Guidance
Because John Deere used more than one bracket and bolt arrangement across these decks, confirm your deck spindle and bolt size against the old wheel assembly before ordering. If your deck uses a flat-faced or different-diameter wheel, verify the measurements above first so the replacement seats and rolls correctly.
