3G8320 New Left Hand LH End Bit Fits Caterpillar Fits CAT Bulldozers D6 815S
3G8320 New Left Hand LH End Bit Fits Caterpillar Fits CAT Bulldozers D6 815S
Regular price
£90.00 GBP
Regular price
Sale price
£90.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

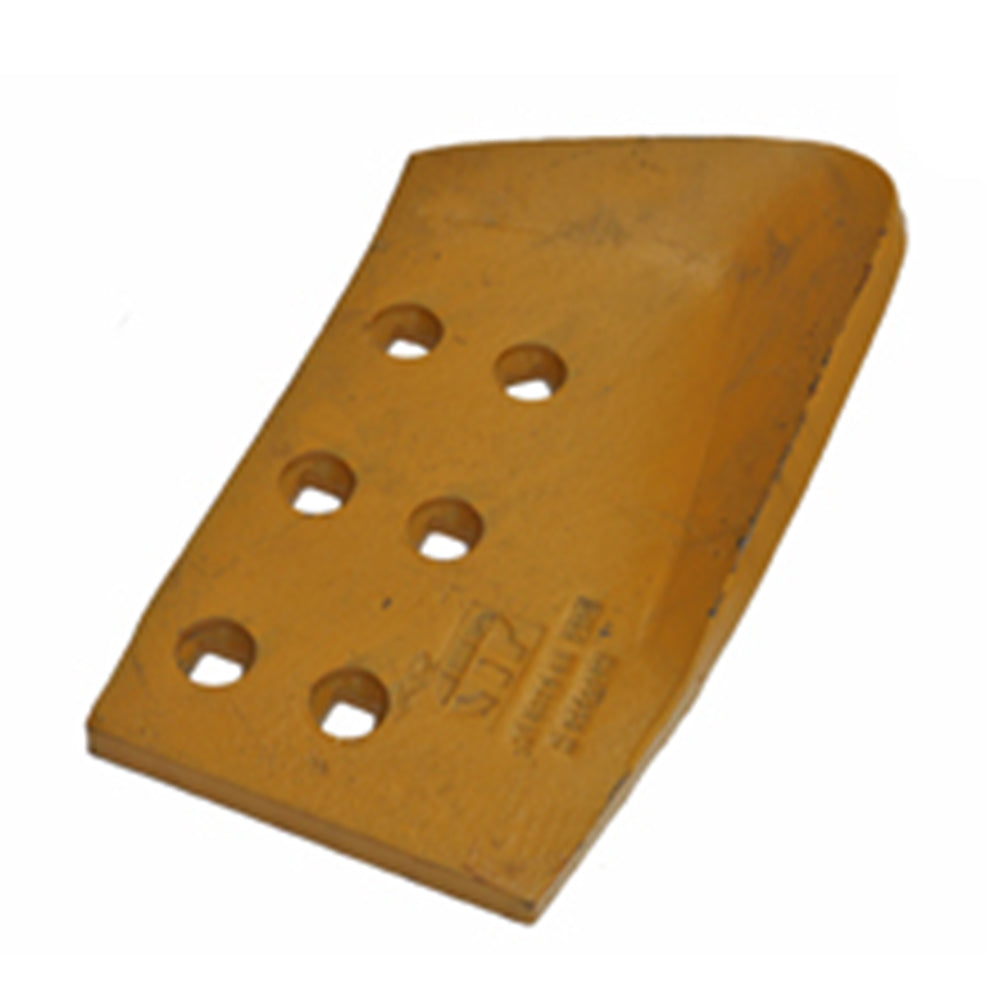

One New Aftermarket Replacement Left Hand (LH) End Bit Fits Caterpillar (Fits CAT) D6 Series Bulldozers and 815S Compactor
This hot cupped left hand (LH) end bit bolts onto the dozer blade moldboard, protecting the outer corners of the cutting edge from wear during dozing, grading, and compacting operations. It is part of the Ground Engaging Tools (GET) system on Fits Caterpillar (Fits CAT) D6 series track-type tractors and 815 series soil compactors.
Specifications
- Type: Hot Cupped End Bit - Left Hand (LH)
- Thickness: 1 in (25 mm)
- Width: 10.25 in
- Length: 17.625 in
- Bolt Holes: 6
- Bolt Size: 3/4 in x 2-1/4 in plow bolt (qty 6) with 3/4 in hex nut (qty 6)
- Bolt Hole Spacing: 4 in center to center; 2.25 in from edge to first hole
- Weight: approx. 32 lbs
Compatible Models
Fits Caterpillar (Fits CAT) Track-Type Tractors (Bulldozers): D6, D6D, D6E, D6E SR, D6G, D6G SR, D6G2 XL, 6A, 6S
Fits Caterpillar (Fits CAT) Soil Compactors: 815S
Replaces Part Number(s):
3G8320, DBL30-0020
Aftermarket Interchange Numbers
3G-8320, 5A7882, 5A-7882, 6J0276, 6J-0276
New aftermarket replacement part - not remanufactured, not used.
