3G9306 Cutting Edge Center Bit Fits CAT Fits Caterpillar D4H
3G9306 Cutting Edge Center Bit Fits CAT Fits Caterpillar D4H
Regular price
£124.00 GBP
Regular price
Sale price
£124.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

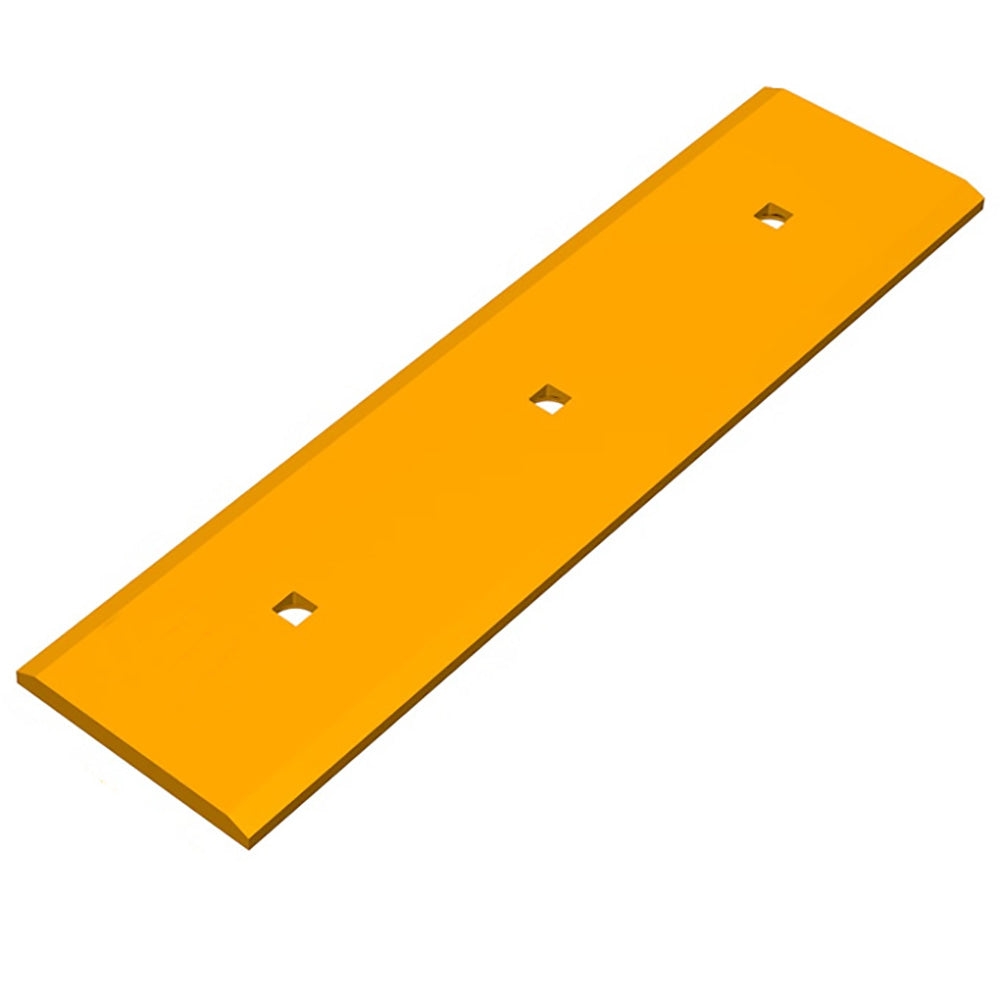

One New Aftermarket Replacement Cutting Edge Center Bit Fits Caterpillar (Fits CAT) Crawler Dozers
This aftermarket replacement center cutting edge fits the dozer blade on Fits Caterpillar D4H series crawler dozers. The bolt-on, double-bevel reversible design allows the edge to be flipped for extended service life, protecting the blade and maximizing uptime on earthmoving and grading applications.
Specifications
- Blade Type: Double Bevel, Reversible
- Thickness: 5/8" (0.625")
- Width: 8"
- Length: 34-3/4" (approx. 34.8125")
- Bolt Holes: 6
- Bolt Hole Size: 3/4"
- Bolt Hole Spacing: 6" center to center
- Hardware: Requires 6x 3/4" x 2-1/2" plow bolts and 6x 3/4" hex nuts (not included)
Compatible Models
Fits Caterpillar D4 Series: D4H, D4H TSK II, D4H TSK III
Fits Caterpillar D5 Series: D5C, D5C III, D5G
Additional: 517
Replaces Part Number(s):
3G9306, DBD90-0034
New aftermarket replacement part - not remanufactured, not used.
