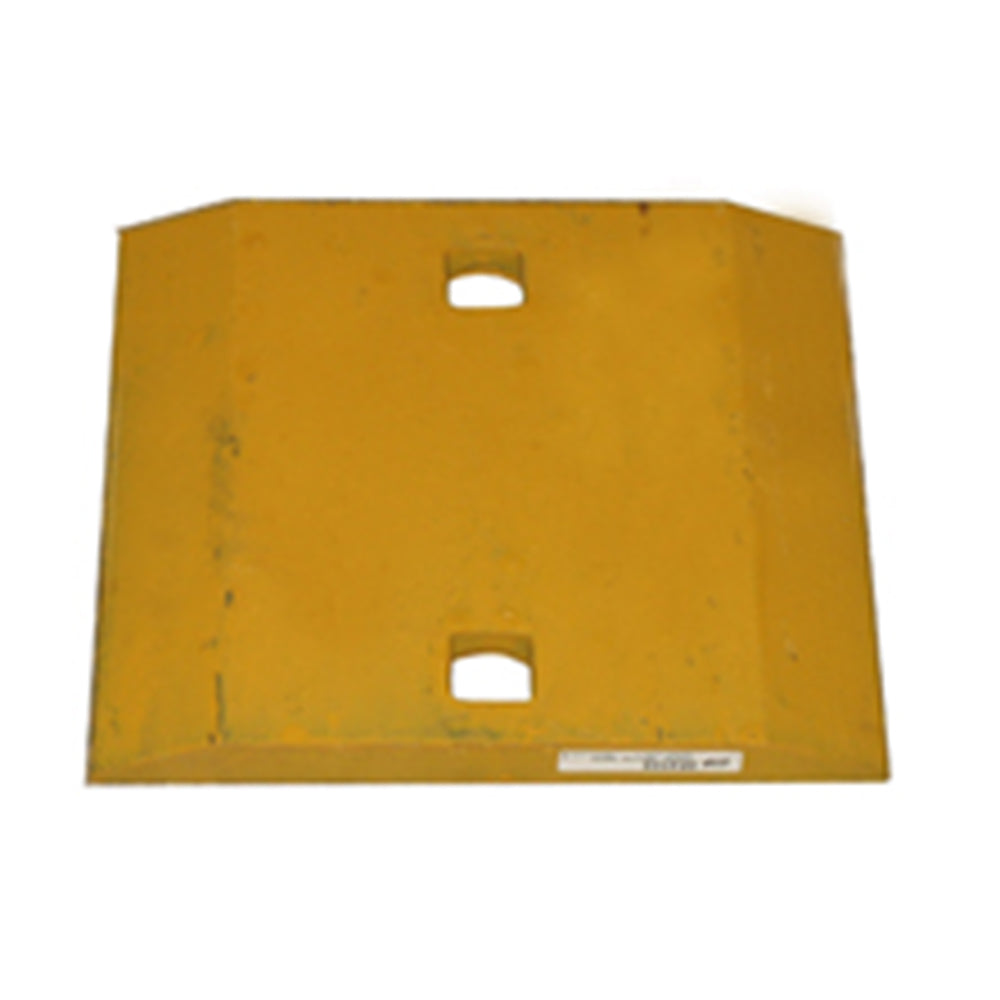

8E4569 Edge-Segment Fits Caterpillar IT18F IT28F IT28G 924G 924GZ 924H 924HZ
8E4569 Edge-Segment Fits Caterpillar IT18F IT28F IT28G 924G 924GZ 924H 924HZ
Couldn't load pickup availability
One New Aftermarket Replacement Edge Segment Fits Caterpillar (Fits CAT) Wheel Loaders and Integrated Tool Carriers
This aftermarket replacement edge segment (Fits CAT part number 8E4569) is a bolt-on, double-bevel reversible bucket cutting edge designed to protect and replace the leading edge of the loader bucket on Fits Caterpillar (Fits CAT) wheel loaders and Integrated Tool Carriers (ITC). The hardened segment attaches directly to the bucket with two plow bolts and is a direct replacement for the OEM Fits Caterpillar cutting edge segment.
Specifications
- Thickness: 1 in (25 mm)
- Width: 11 in (280 mm)
- Length: 9.75 in (247 mm)
- Weight: approximately 25-26 lbs (11-13 kg)
- Bolt pattern: 2-bolt, 1 in diameter x 2-3/4 in length
- Bolt hole spacing: 7 in center to center; 1-3/8 in from edge to first hole
- Blade type: Double bevel (DB||), reversible
Compatible Models
Fits Caterpillar Integrated Tool Carriers: IT18F, IT28F, IT28G
Fits Caterpillar Wheel Loaders: 924G, 924GZ, 924H, 924HZ, 924K, 928F, 928G, 928HZ, 930G, 930H, 930K, 930M, 938H, 938K, 938M
Fits Caterpillar Engine-Machine Series (per catalog): 3056, 3056E, 3114, 3116, 3126, C6.6
Note: Typical installations require 7 segments per bucket. Verify bucket configuration before ordering.
Replaces Part Number(s):
8E4569, 8E-4569, DBD90-0033
Aftermarket Interchange Numbers
CA8E4569, 1358219, 1962894, 1962895
New aftermarket replacement part - not remanufactured, not used.
