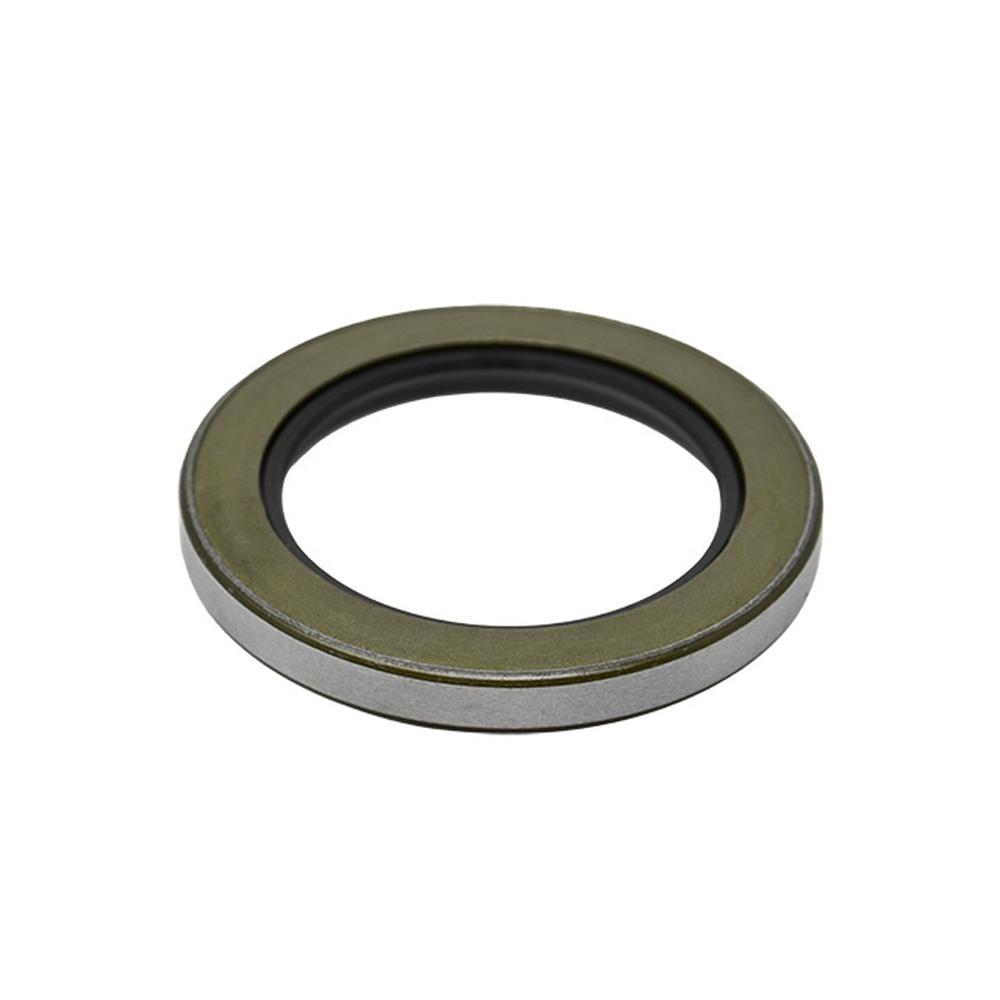

CR33073 seal Fits Chicago Rawhide
CR33073 seal Fits Chicago Rawhide
Couldn't load pickup availability
One New Aftermarket Replacement CR33073 Oil Seal - Chicago Rawhide (CR Seals / SKF)
This CR33073 radial shaft oil seal from Chicago Rawhide (now CR Seals, a division of SKF) is a CRWH1-design single-lip rotary shaft seal used to retain lubricant and exclude contaminants at rotating shaft applications in industrial and construction equipment. The metal-cased outer diameter features a sealant coating for a positive bore fit without requiring additional sealants.
Specifications
- Shaft Diameter: 3.313 in.
- Housing Bore Diameter: 4.249 in.
- Seal Width: 0.438 in.
- Design: CRWH1 (single lip, no auxiliary lip)
- Lip Material: Nitrile Rubber (NBR) - see note on PVE variant below
- Outside Diameter Type: Metal-cased with sealant coating
- Max Operating Temperature: 212 degrees F
- Min Operating Temperature: -40 degrees F
Note on item_name CR33073-PVE: The -PVE suffix may indicate a polyacrylate lip material variant. Confirm the correct lip material specification for your application before ordering.
Compatible Applications
This is a dimensionally defined seal used across a wide range of industrial, agricultural, and construction equipment applications wherever a 3.313 in. shaft diameter, 4.249 in. bore, and 0.438 in. width radial shaft seal is required. Verify shaft and bore dimensions against your equipment specifications to confirm fitment.
Replaces Part Number(s):
CR33073, CR33073-PVE
New aftermarket replacement part - not remanufactured, not used.
