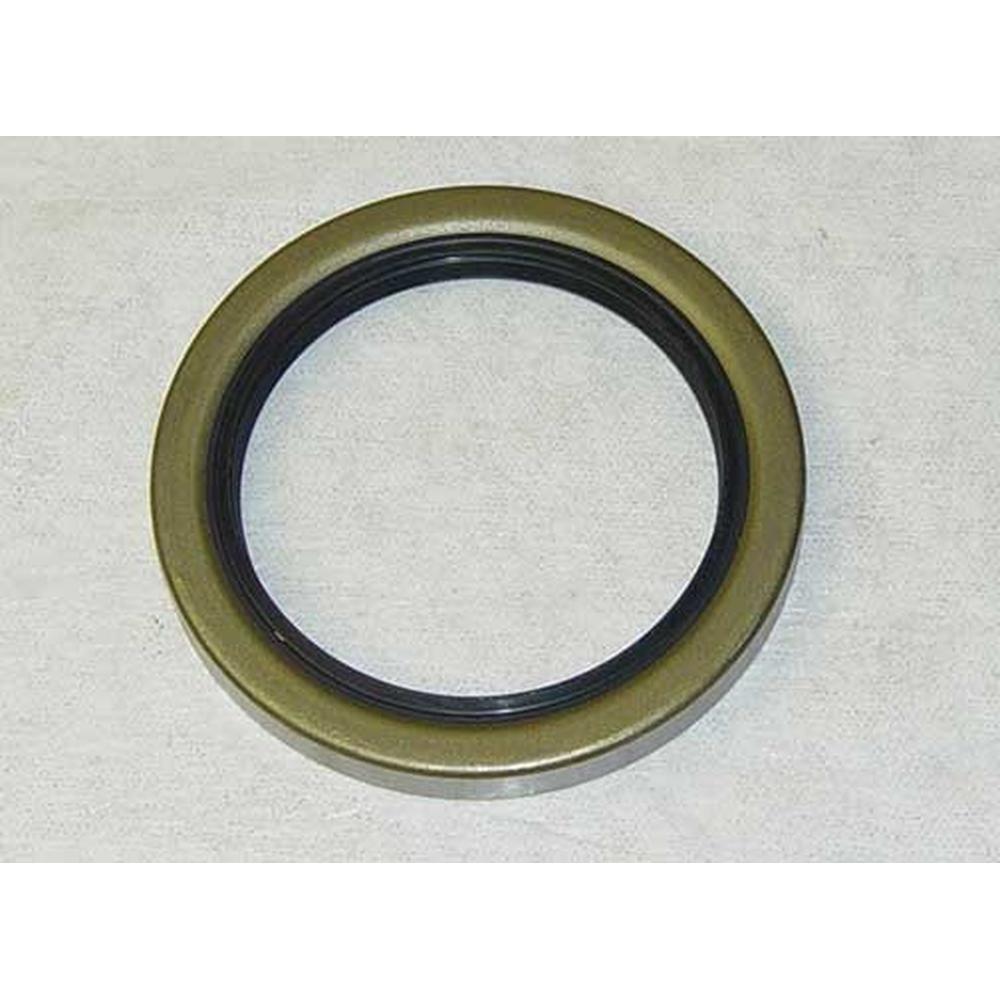

One New Aftermarket Replacement CR29952 Rotary Shaft Oil Seal - TCM (Dichtomatik) Equivalent
This CR29952 rotary shaft oil seal is a double-lip radial shaft seal used between rotating and stationary machine components to retain lubricant and exclude contaminants. The TCM (Dichtomatik) version -- part number 30403TA-H -- is a direct equivalent to the Chicago Rawhide (CR/SKF) original. It features a nitrile rubber (NBR) sealing lip, metal Fits Case with sealant-coated outside diameter, auxiliary dust lip, and a spring-loaded primary sealing lip.
Specifications
- Shaft Diameter: 3.000 in (76.2 mm)
- Outside Diameter: 4.003 in (101.67 mm)
- Width: 0.438 in (11.13 mm)
- Lip Material: Nitrile Rubber (NBR)
- Design Profile: CRWHA1 (double-lip, solid)
- Fits Case: Steel, metal-cased with sealant coating on OD
- Number of Lips: 2 (primary sealing lip + auxiliary dust lip)
- Operating Temperature: -40 degrees F to 212 degrees F (-40 degrees C to 100 degrees C)
- Max Rotational Speed: 2,400 rpm
Replaces Part Number(s):
CR29952, 29952, CR29952-PVE
Aftermarket Interchange Numbers
TCM Legacy Part Number: 30403TA-H | Freudenberg Item Number: 75012172 | SKF/CR Design Code: CRWHA1
New aftermarket replacement part - not remanufactured, not used.
