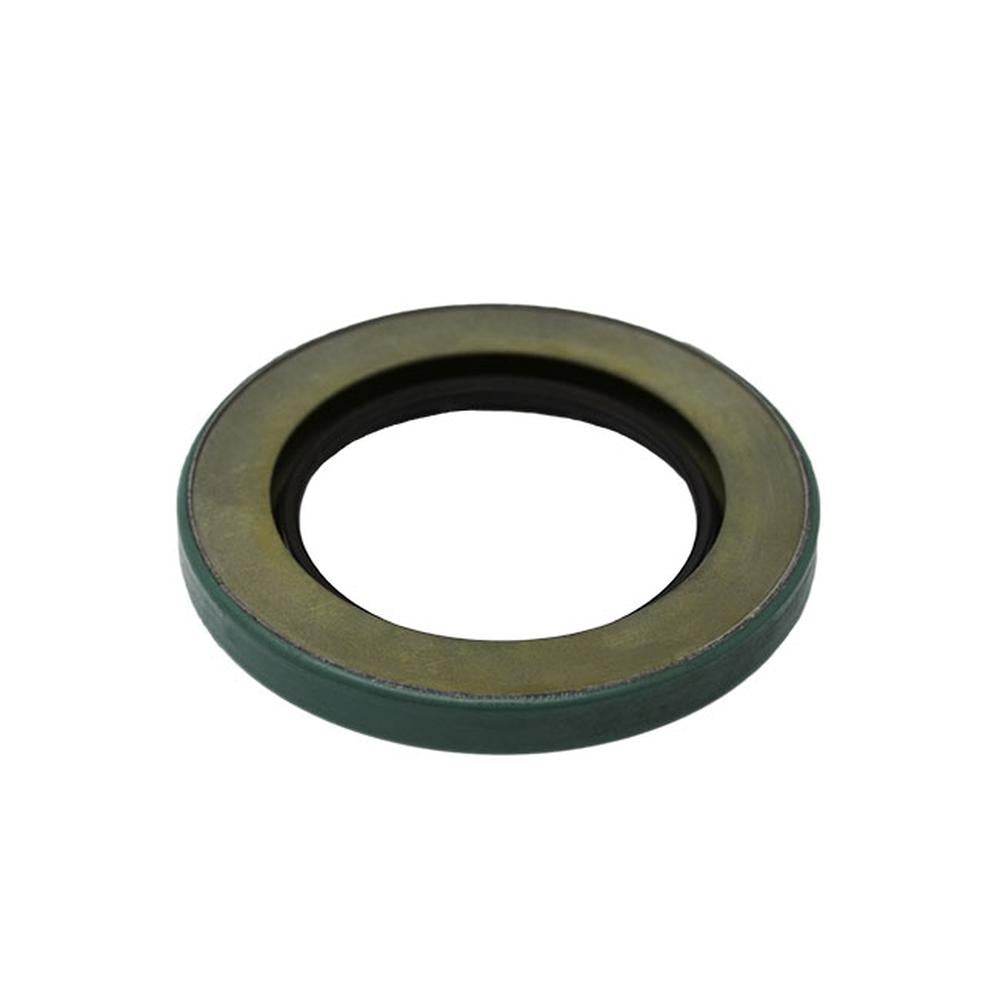

One New Aftermarket Replacement CR25100 Radial Shaft Seal - Chicago Rawhide / SKF Style
This aftermarket replacement for the Chicago Rawhide (CR) / SKF CR25100 is a single-lip radial shaft seal with a Wave lip design (CRWH1 style). It is used to retain oil or grease and exclude contaminants in rotating shaft applications across industrial and construction equipment. The steel metal Fits Case with inner casing provides a firm press fit in the housing bore, while the garter spring maintains consistent sealing lip contact against the shaft.
Specifications
- Seal Type: Radial shaft seal (rotary shaft seal)
- Design Style: CRWH1 (SKF Wave lip)
- Shaft Diameter: 2.500 in (63.50 mm)
- Outside Diameter: 3.876 in (98.45 mm)
- Width: 0.438 in (11.13 mm)
- Lip Material: Nitrile Rubber (NBR)
- Lip Type: Single wave lip with garter spring
- Fits Case: Steel, metal inner Fits Case with Bore-Tite coating on OD
- Operating Temperature: -40 to 210 degrees F
- Pressure Tolerance: 10 psi
Replaces Part Number(s):
CR25100
New aftermarket replacement part - not remanufactured, not used.
