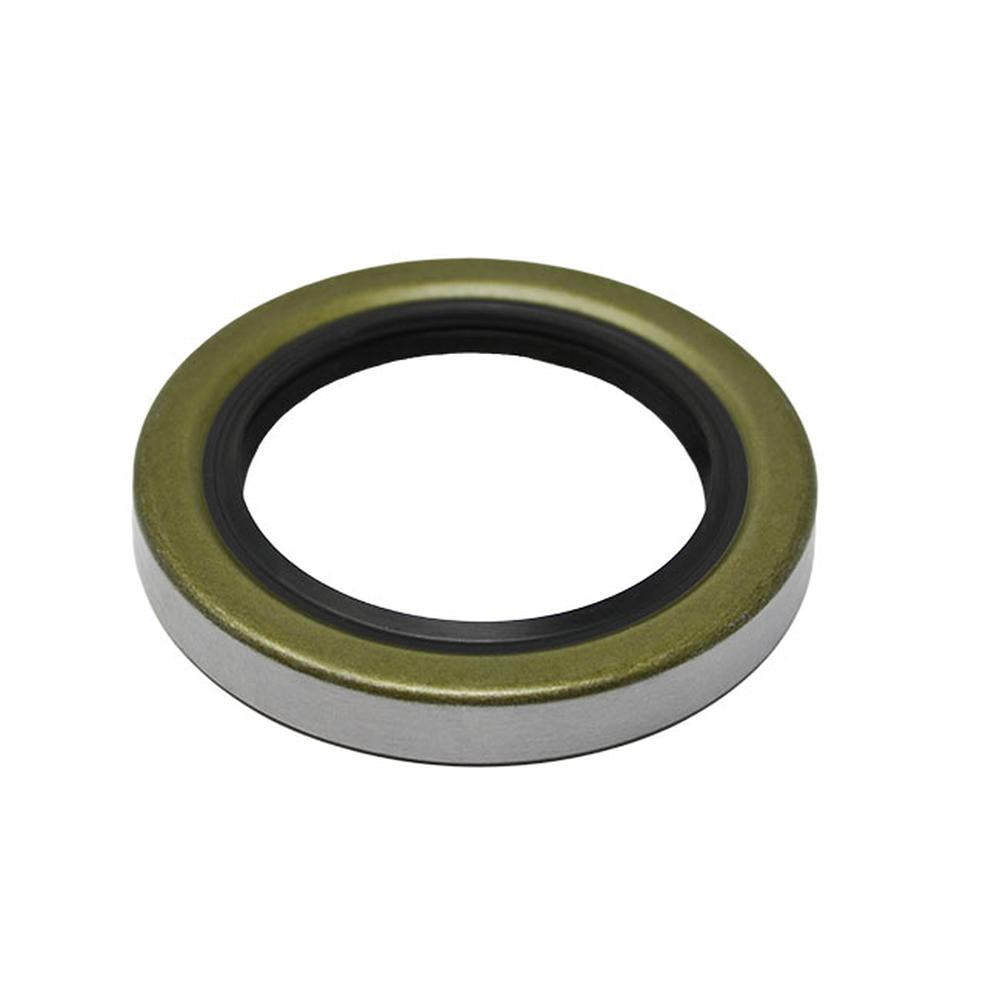

One New Aftermarket Replacement CR22448 Oil Seal for TCM / Chicago Rawhide (SKF) Applications
This CR22448 is a double-lip radial shaft oil seal used to retain lubricant and exclude dirt and contaminants around a rotating shaft. It is a direct-fit replacement for the Chicago Rawhide (SKF) CR22448 seal, with TCM (Dichtomatik) producing an equivalent under part number 22324TA. The seal features a metal Fits Case with Bore-Tite coating on the outer diameter to accommodate minor housing bore imperfections, a nitrile rubber (NBR) sealing lip, and a carbon steel garter spring. Typical applications include gearboxes, transmissions, speed reducers, motors, pumps, wheel ends, and axles on agricultural and construction equipment.
Specifications
- Shaft Diameter: 2.250 in (57.15 mm)
- Outside Diameter: 3.251 in (82.58 mm)
- Width: 0.438 in (11.13 mm)
- Design Type: CRWHA1 (Wave Lip)
- Lip Material: Nitrile Rubber (NBR)
- Fits Case: Steel, metal inner Fits Case
- Number of Lips: 2 (double lip)
- Spring: Carbon steel garter spring
- Operating Temperature Range: -40 to 210 degrees F
- Pressure Tolerance: 10 psi
Replaces Part Number(s):
CR22448
Aftermarket Interchange Numbers
TCM 22324TA; Chicago Rawhide / SKF 22448
New aftermarket replacement part - not remanufactured, not used.
