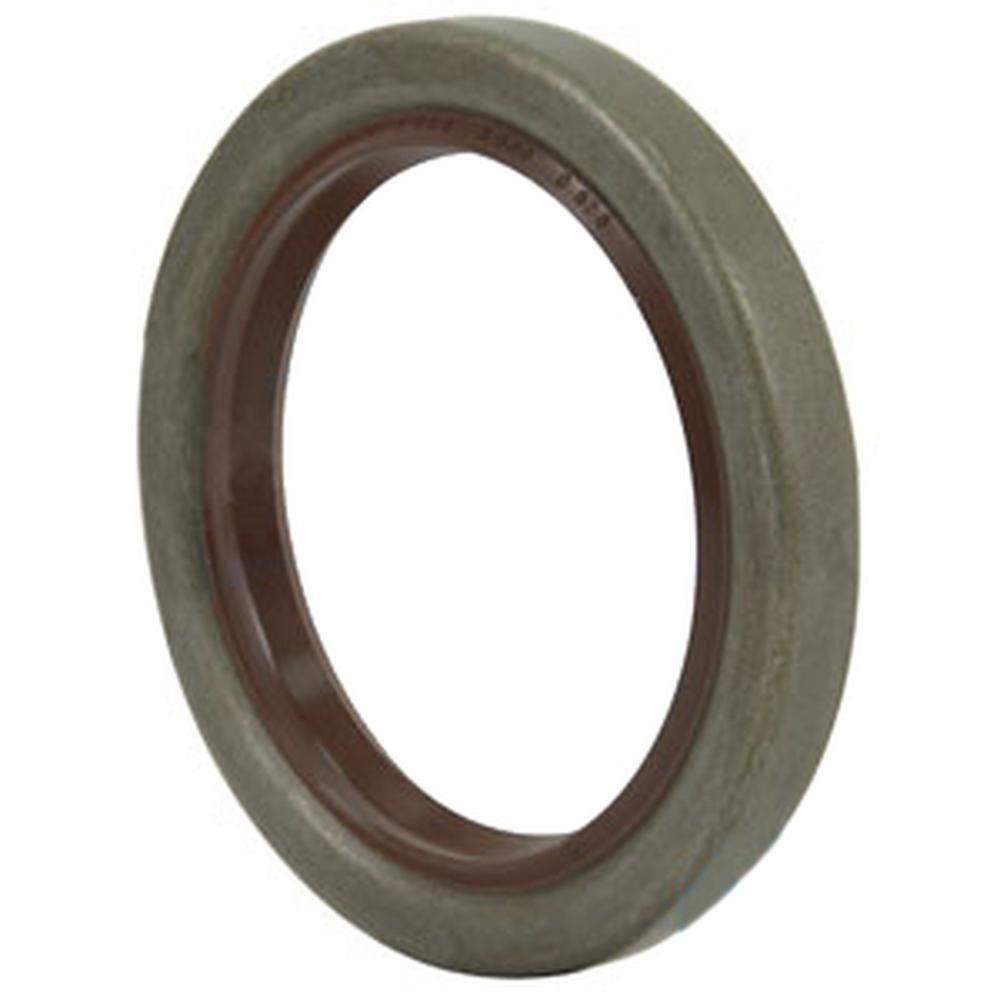

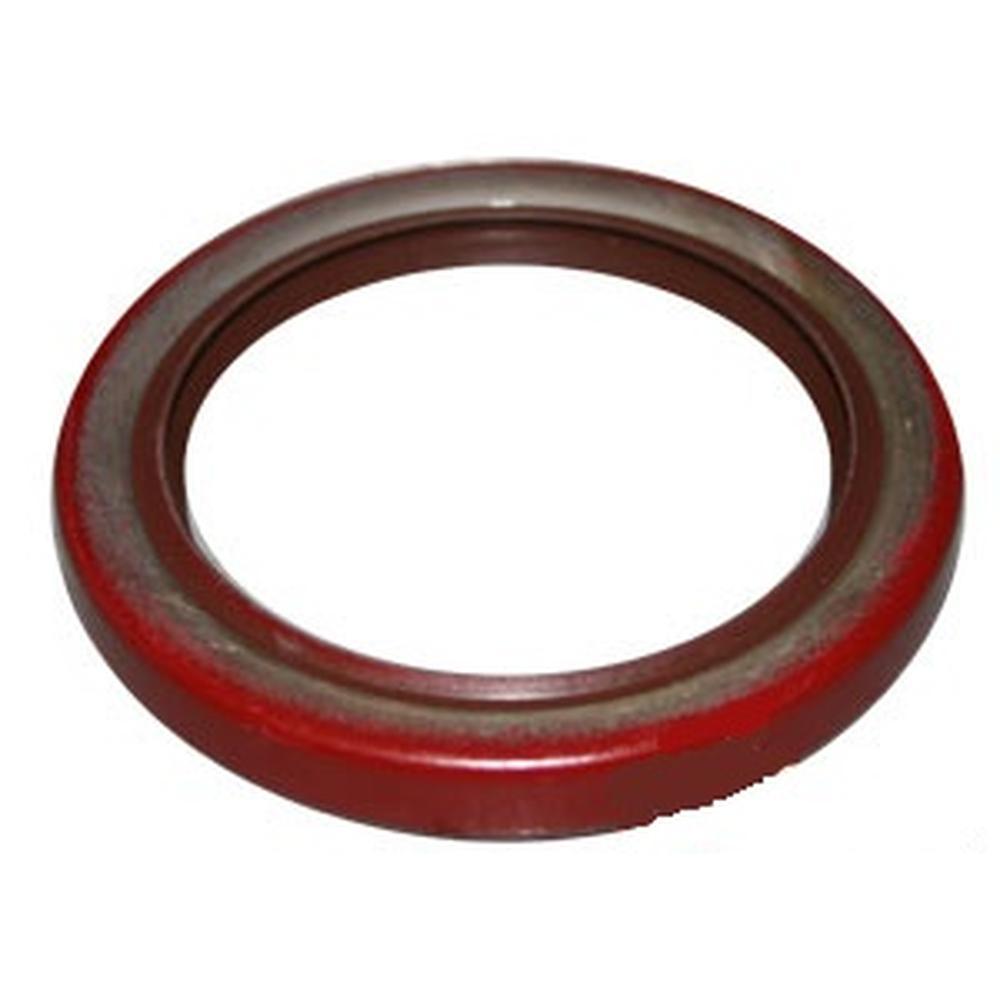

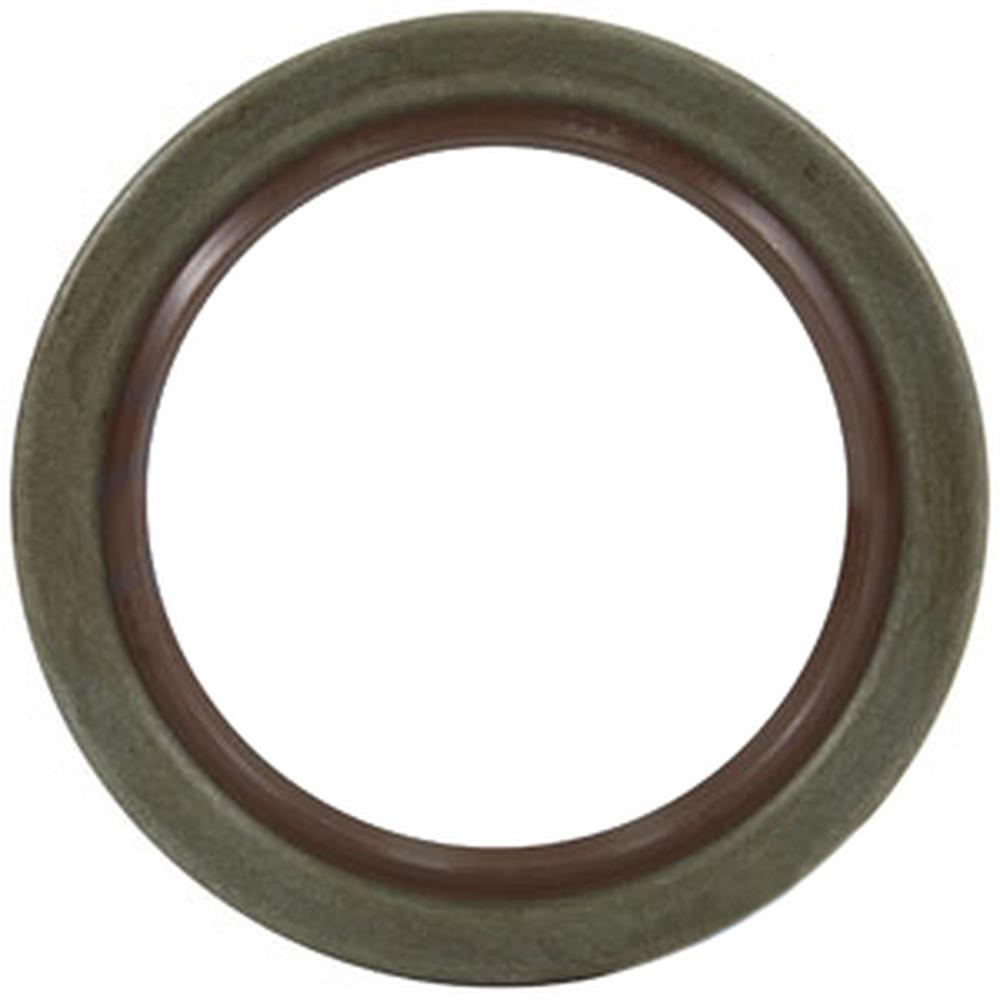

CR OIL SEAL 22353

CR OIL SEAL 22353

£31.00 GBP
£31.00 GBP
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Front Crankshaft Seal Fits John Deere Tractors, Combines, and Construction Equipment

This front crankshaft seal seats at the timing cover end of the crankshaft, preventing oil leaks from the front of the engine. It is the Chicago Rawhide (CR/SKF) seal number 22353 -- a single-lip, solid radial shaft seal with a nitrile rubber (NBR) wave lip, metal casing, and garter spring, designed Fits John Deere diesel engines across a wide range of agricultural, industrial, and construction equipment. Also fits select Fits Woods and Terrain King rotary cutter power units that share compatible Fits John Deere engines.

Specifications

  • Seal Type: Single Lip, Solid Radial Shaft Seal (CRW1 Design)
  • Inside Diameter: 2.32 in (59 mm)
  • Width: 0.39 in (10 mm)
  • Outside Diameter: 3.000 in
  • Lip Material: Nitrile Rubber (NBR)
  • Casing: Steel (Metal OD with sealant coating)
  • Operating Temperature Range: -40 to 210 degrees F

Engine Fitment Notes

Fitment is engine-specific. Verify your engine code before ordering. Key engine applications include:

  • 3.152 Diesel: 820, 1020, 1030, 300, 300A, 350, 350B, 380
  • 3.164 Diesel: 1520, 1530, 2040, 301A, 302, 302A, 310, 350B, 350C, 350D
  • 3.179 Diesel: 1040, 1140, 1630, 2040, 2140, 2155, 2240, 350D, 355D
  • 3.179T Diesel: 2355, 310C, 315C, 5400N, 5500
  • 3029 Diesel: 5200, 5300, 5400
  • 4.202 Diesel: 2020, 2120, 2510, 400, 440, 450, 480
  • 4.219 Diesel: 2020, 2030, 2120, 2520, 310B, 401, 401A, 401B, 410B, 440, 440A, 440B, 450B, 450C, 450D, 480A, 480B, 480C
  • 4.239 Diesel: 2130, 2350, 2550, 2355, 2555, 210C, 310C, 310D, 315C, 400G
  • 4.239T / 4039T Diesel: 2140, 2650, 2750, 2555, 2755, 2850, 2855, 310C, 310D, 315C, 315D
  • 4039 Diesel: 210D, 290D, 310C, 310D, 315C, 315D, 400G, 482C
  • 4.276 Diesel: 2630, 2640, 410C
  • 6.329 / 6.359T / 6059T Diesel: 610B, 610C, 710B

Compatible Models

Fits John Deere Tractors: 820, 830, 940, 952, 985, 1020, 1030, 1040, 1052, 1055, 1072, 1075, 1120, 1130, 1140, 1155, 1350, 1420, 1520, 1530, 1550, 1630, 1750, 1830, 1840, 1850, 2020, 2030, 2035, 2040, 2120, 2130, 2140, 2150, 2155, 2240, 2250, 2270, 2280, 2320, 2330, 2350, 2355, 2355CS, 2355N, 2355NCS, 2355NTSS, 2360, 2420, 2440, 2450, 2510, 2520, 2530, 2535, 2550, 2555, 2555CS, 2555TSS, 2630, 2640, 2650, 2730, 2735, 2750, 2755, 2840, 2850, 2855, 2855N, 2940, 2950, 2955, 3040, 3050, 3100, 3120, 3130, 3140, 3140C, 3150, 3155, 3155K, 3155TS, 3155TSS, 3255, 3300, 3330, 3350, 3420, 3430, 3530, 3540, 3550, 3640, 3830, 4020, 4030, 4050, 4400, 4420, 4425, 4530, 5045D, 5045E, 5055D, 5055E, 5065E, 5065M, 5075E, 5075M, 5103, 5105, 5200, 5203, 5205, 5210, 5220, 5225, 5300, 5300N, 5303, 5310, 5310N, 5315, 5320, 5320N, 5325, 5325N, 5400, 5400N, 5403, 5410N, 5500, 6200L, 6300L, 6400, 6400L, 6500, 6500L, 6510, 6600, 6602, 6700, 6800, 6900, 7200, 7210, 7400, 7410, 7440, 7445, 7500, 7600

Fits John Deere Combines: 942, 952, 985, 1055, 3300, 4400, 4420, 4425, 6600, 6602, 9400

Fits John Deere Cotton Pickers/Strippers: 9900, 9910, 9920, 9930, 7440, 7445

Fits John Deere Backhoe Loaders: 210C, 290D, 300B, 301A, 302, 302A, 310, 310B, 310C, 310D, 315, 315C, 315D, 380, 401, 401A, 401B, 401C, 401D, 410, 410B, 410C, 410D, 415B, 415C, 480, 480A, 480B, 480C, 510B, 510C, 510D, 555A, 555B, 555G, 570A, 570B, 610B, 610C, 710B, 710C, 710D

Fits John Deere Skid Steer Loaders: 240, 250, 260, 313, 315, 317, 318D, 319D, 320, 320D, 323D, 324J, 325, 326D, 328, 328D, 329D, 332, 332D, 333D, 8875

Fits John Deere Compact Track Loaders: CT315, CT322, CT332

Fits John Deere Wheel Loaders: 344E, 344G, 344H, 344J, 400G, 444, 444C, 444CH, 444D, 444E, 444G, 480, 540, 540A, 540B, 540D, 544, 544A, 544B, 544C, 544D, 544E, 544EH, 544G, 548D, 548E, 624E, 624EH, 624G, 640, 640D, 643, 643D, 644E, 648D, 650G, 652, 655A, 655B, 672, 672A, 672B, 693D, 750, 750B, 750C, 755, 755A, 755B, 755BMIL, 790ELC

Fits John Deere Dozers/Crawlers: 350, 350A, 350B, 350C, 350D, 355D, 450, 450A, 450B, 450C, 450D, 450E, 450G, 455D, 455E, 455G, 490, 490D, 490E, 493D, 495D, 595D, 650G

Fits John Deere Excavators: 190E, 490, 490D, 490E, 493D, 495D, 595D, 690D, 690E, 693D, 790ELC

Fits John Deere Graders: 570A, 570B, 670, 670A, 670B, 672, 672A, 672B

Fits John Deere Industrial/Construction: 44, 45, 54, 55, 65, 70, 70D, 84, 202G, 244E, 244J, 303G, 304J, 340D

Fits John Deere Swathers/Windrowers: 2270, 2280, 2360, 2420, 3430, 3830

Fits John Deere Power Units: SAT8

Fits Woods / Terrain King: ALL MODELS (compatible Fits John Deere engine applications)

Replaces Part Number(s):

AR67942, AT21608, 11553WD, 00751535, 22353

Aftermarket Interchange Numbers

CR/SKF 22353 (Chicago Rawhide seal number); also cross-references AMAR67942

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

260, 2520, 820, 2120, 830, 570A, 610C, 455D, 5203, 2020, 444CH, 6500, 2855N, 7200, 9910, 3430, 670A, 480C, 5210, 6510, 1020, 415B, 2420, 5400, 244J, 7440, 5045E, 444C, 490E, 5303, 455G, 5225, 5310, 2535, 444, 5045D, 2840, 5315, 44, 2155, 595D, 640D, 328D, 350D, 1520, 310C, 34, 624G, 643D, 300B, 650G, 755A, 350A, 3830, 415C, 3300, 5065M, 350, 2550, 2355N, 640, 940, 3155TSS, 317, 401D, 3155, 6300L, 2750, 644E, 550B, 401B, 1420, 555G, 690E, 6400L, 450G, 3050, 400, 2130, 3540, 444D, 1052, 3029T, 2850, 329D, 401C, 3130, 750C, 5075E, 240, 7410, 2355CS, 2555CS, 1030, 450D, 304J, 5403, 655, 952, 4425, 1140, 6400, 3155TS, 2755, 548E, 3350, 344E, 670B, 5410N, 270, 540A, 540B, 6602, 302A, 655A, 3550, 70D, 710D, 7210, 515B, 5320, 544, 2320, 510C, 2950, 5075M, 2555, 310B, 9920, 440, 320D, 450A, 5103, 7500, 6700, 1075, 4050, 315C, 250, 2150, 5500, 3029D, 3255, 544E, 2440, 710B, 7600, 699, 355D, 5055D, 672B, 310, 4530, 313, 499, 710C, 2450, 202G, 2855, 9900, 790ELC, 2350, 3330, 750, 324J, 450C, 318D, 65, 1130, 4030, 410C, CT332, 326D, 303G, 2140, 1750, 450E, 325, 2355NTSS, 455E, 380, 510D, 544C, 624E, 5320N, 480A, 1155, 653, 319D, 550G, 2940, 2510, 2730, 2030, 2355NCS, 400G, 755B, 2735, 310D, 448D, 5300N, 2630, 5400N, 3040, 1830, 440B, 3140C, 942, 2360, 301A, 3530, 6500L, 315D, 624EH, 55, 672, 3150, 2250, 755, 5200, 332D, 495D, 6600, 1550, 750B, 540D, 300, 410D, 440C, 6410, 84, 755BMIL, 244E, 344J, 320, 350B, 2530, 444G, 655B, 544EH, 555B, CT315, 3640, 1055, ALL MODELS, 3155K, 45, 482C, 555A, 2040, 2280, SAT8, 7445, 490D, 290D, 480B, 544B, 2270, 401, 570B, 7400, 450B, 190E, 5325, 5310N, 1850, 1840, 2650, 210C, 344G, 323D, 332, 5220, 544A, 5300, 54, 6900, 1040, 9400, 302, 4020, 480, 5325N, 5065E, 2240, 693D, 344H, 3120, 643, 544G, 340D, 410, 315, 9930, 5055E, 3420, 440A, 2355, 328, 300A, 850C, 985, 4420, 2555TSS, 2955, 3100, 590D, 510B, 5105, 2035, 410B, 1530, 444E, 610B, 2640, 6200L, 493D, 648D, 1072, 8875, 401A, CT322, 5205, 1630, 548D, 333D, 672A, 70, 550A, 490, 6800, 4400, 670, 690D, 450, 544D, 2330, 3140, 1350

Additional Information:

Inside Diameter: 2.32" (59 mm) Width: 0.39" (10 mm)

Reference Numbers:

11553WD, 00751535, AR67942, AT21608
