Complete H4 Magneto Overhaul Rebuild Kit Fits IH Fits FARMALL A B BN C H HV I9 M

Name: Complete H4 Magneto Overhaul Rebuild Kit Fits IH Fits FARMALL A B BN C H HV I9 M
SKU: KT-ELV70-0021_2
Price: 164.0 USD
Availability: InStock

Complete H4 Magneto Overhaul Rebuild Kit Fits IH Fits FARMALL A B BN C H HV I9 M

£164.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Complete H4 Magneto Overhaul Rebuild Kit Fits IH Fits FARMALL A B BN C H HV I9 M MD O4

Fits 4 Cylinder Fits IH Fits FARMALL Model: A, AV, B, BN, C, H, HV, I9, ID9, M, MD, MDV, MTA, MV, O4, O6, ODS6, OS4, OS6, Super A, Super C, Super H, Super HV, Super M, Super MD, Super MDV, Super MV, Super W4, Super W6, Super WD9, Super WDR9, T5, T9, TD14, TD14A, TD6, TD9, W4, W6, W6TA, W9, WD6, WD9, WDR9, WR9, WR9S, 100, 130, 200, 230, 300, 350, 400, 450, 600, 650 Select models, W6TA (Select Diesel models)
Wheatland: 400, 450 (Select Models)

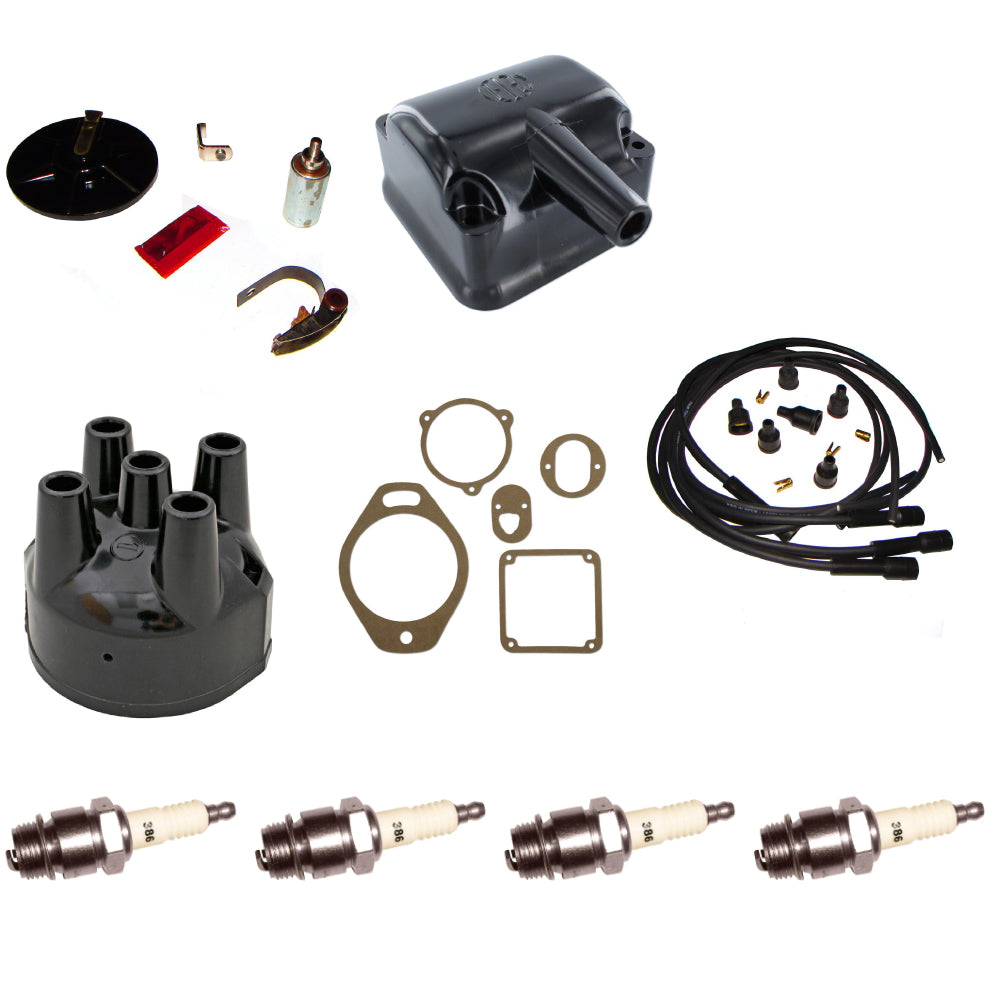

Kit Contains:
(1) Ignition Kit
(4) Spark Plugs
(1) Magneto Coil Cover
(1) Distributor Cap
(1) Gasket Set
(1) Spark Plug Wiring Set
(1) Magneto Coil

Models This Part Fits:

W6TA, W9, Regular, MV, MD, Super W6TA, 200, W400, W450, 15-30, OS6, Super MTA, Super W4, T20, 10-20, 600, MDV, W6, Super MVTA, Super MDTA, 350, Super MV, 650, W12, W14, Super WD9, Super AV-1, C, M, Super A-1, ODS6, T5, Super H, Super HV, Super A, Super W6, 100, WR9, 130, Super C, OS4, T6, W4, Super WDR9, Super MD, WD9, 22-36, AV, ID9, Super MDV, O12, WD6, F12, I4, 300, O4, W40, B, BN, Super MDV-TA, O6, Super WD6, WDR9, HV, I9, F14, 400, 230, Super M, F20, 450, Super W9, H, TD6, A

Additional Information:

Kit Contains: (1) Ignition Kit Contains Points, Condensers & Rotors to service H-4 Magneto Replaces Part Number(s): 407017R91, 407017R92 (4) Spark Plugs Standard Info Thread Size: 18mm 7/8" Hex Shoulder Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Seat Type: Gasket Gap: .028" (0.7mm) Heat Range: 2 Terminal Type: Removable Nut Resistor: No Thread Pitch: 1.5mm Center Electrode Type: Standard Material: Nickel Size: 2.5mm Projection: Non-Projected Ground Electrode Type: Standard Material: Nickel Replaces Part Number(s): G44840, 4012405C (1) Magneto Coil Cover Replaces Part Number(s): 47449DAX, 47449DAY (1) Distributor Cap Services H-4 Magneto, Clip Style Replaces Part Number(s): 407017R91, 407017R92 (1) Gasket Set includes: Coil Cover Gasket Distributor Body Gasket Distributor Gear Cover Gasket Condenser Hole Cover Gasket Magneto Mounting Gasket Replaces Part Number(s): 359966R1, 47408D, 47453D, 48472DA, 49419D, 55780DD, 55780DE, E4226 (1) Spark Plug Wiring Set (4 Cyl.) 4 Cylinder (Non-tailored Straight Boot) (1) Magneto Coil Replaces Part Number(s): 21401D, 21401DAX, 361114R91, 47439D, 47439DA, 47439DAX, 57926DX, RW104
