HXE10959 Poly Skid Pad Cover Fits John Deere 635FD 640FD 630FD 645FD
HXE10959 Poly Skid Pad Cover Fits John Deere 635FD 640FD 630FD 645FD
Couldn't load pickup availability
One New Aftermarket Replacement Poly Skid Pad Cover Fits John Deere FD Series Flex Draper Grain Heads

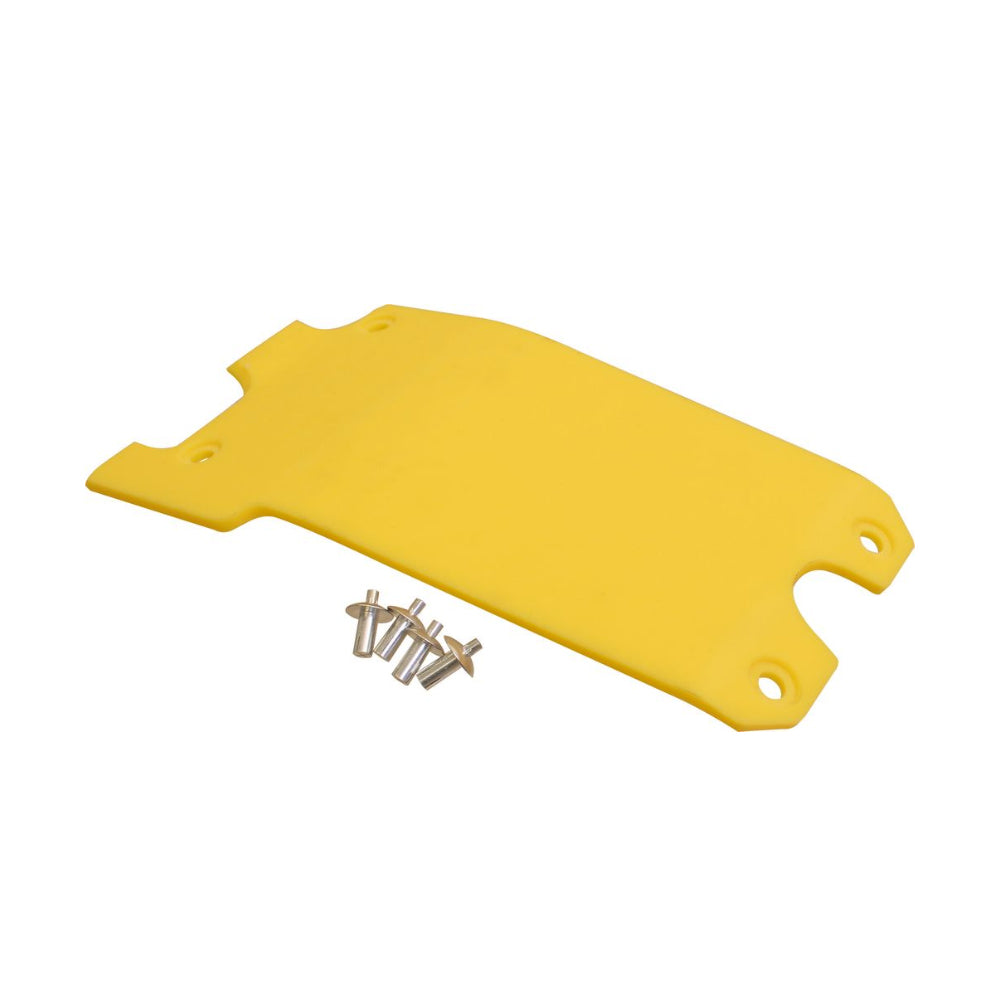

This poly skid pad cover (also referred to as a cutting platform inner float arm skid plate) mounts to the underside of Fits John Deere FD and RD Series flex draper grain heads, protecting the inner float arm assembly from wear during field operation. The low-friction polyethylene construction reduces drag across uneven ground and extends service life compared to steel skid plates. Multiple units are typically required per header -- quantity needed varies by header width (38 required on 30-ft headers, 44 on 35-ft headers, and 50-52 on 40-ft headers depending on serial number).
Specifications
- Material: Polyethylene (poly)
- Dimensions: approximately 10-3/4 in. x 5-7/8 in.
Compatible Models
Fits John Deere FD Series Flex Draper Grain Heads: 630FD, 635FD, 640FD, 645FD
Note: Some sources indicate fitment on 640FD is s/n 785000 and later (50 required) vs. BSN 784599 and earlier (52 required). Verify serial number before ordering.
Replaces Part Number(s):
HXE10959
Aftermarket Interchange Numbers
WN-HXE10959, AMHXE10959, A-HXE10959; also superseded by/interchanges with HXE185137 and HXE87738 on later serial number units
New aftermarket replacement part - not remanufactured, not used.
