7Y1427 Gear Sun Fits Caterpillar 318B 318B N 320B 320B L 320B N 320B S OEMS
7Y1427 Gear Sun Fits Caterpillar 318B 318B N 320B 320B L 320B N 320B S OEMS
Regular price
£85.00 GBP
Regular price
Sale price
£85.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Travel Final Drive Sun Gear Fits Caterpillar (Fits CAT) Excavators

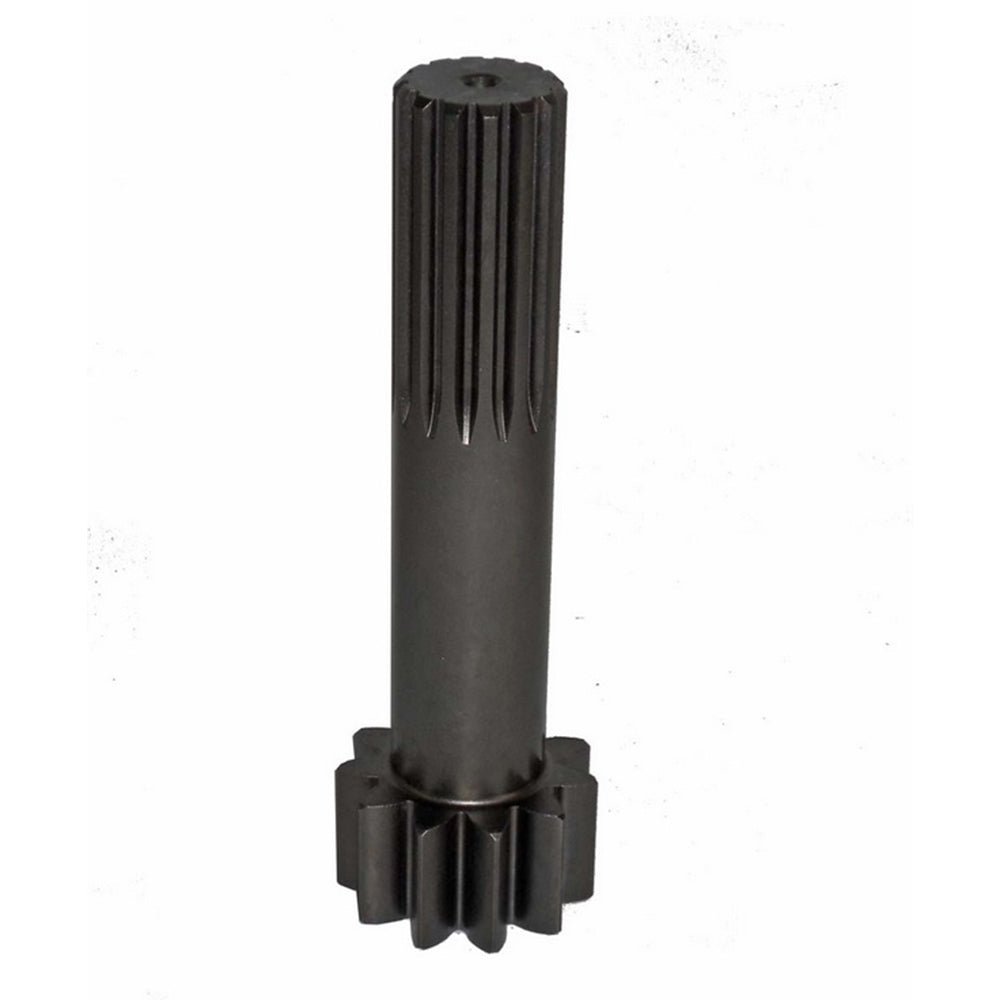

This aftermarket replacement sun gear fits the travel final drive (travel reduction gearbox) planetary gear assembly on Fits Caterpillar 318B and 320B series excavators. The 7Y-1427 is the 1st-level sun gear in the travel reduction unit, transmitting drive from the travel motor shaft into the planetary gearbox to propel the machine. It is also commonly referred to as a sun shaft due to its combined gear-and-shaft design.
Specifications
- Teeth: 11 (gear end) / 14 (spline end)
- Length: approximately 205 mm (205.5 mm)
- Outer diameter: approximately 62.9 mm
- Function: 1st-level sun gear, travel final drive planetary gearbox
Compatible Models
Fits Caterpillar (Fits CAT) 318B Series: 318B, 318B N
Fits Caterpillar (Fits CAT) 320B Series: 320B, 320B L, 320B N, 320B S
Replaces Part Number(s):
7Y-1427, 7Y1427, CLU40-0221
New aftermarket replacement part - not remanufactured, not used.
