Sparex S.13371 Pto Adaptor, 1 3/420 X 1 3/821, Bolt
Sparex S.13371 Pto Adaptor, 1 3/420 X 1 3/821, Bolt
Couldn't load pickup availability

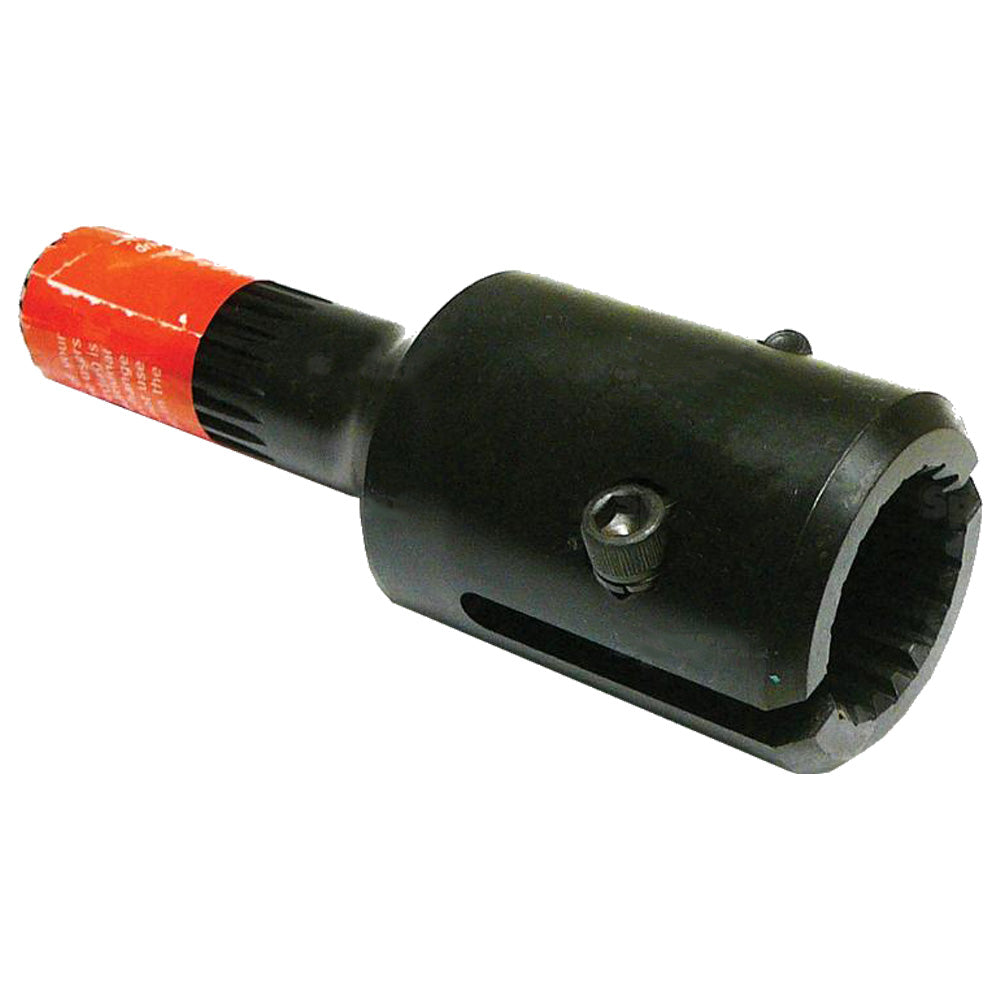

One New Aftermarket Replacement PTO Bolt Adaptor - 1-3/4" 20 Spline Female x 1-3/8" 21 Spline Male, Heavy Duty (Sparex S.13371)
This heavy-duty PTO bolt adaptor allows tractors with a 1-3/4" 20-spline PTO output shaft to connect to implements with a 1-3/8" 21-spline input. Secured by a clamp bolt connection, it extends PTO shaft length by 5-1/2" and has an overall length of 7-7/8" (200mm). Rated for over 70 horsepower applications, this adaptor is a universal-fit part compatible with a wide range of tractor brands and models. It is commonly used when connecting newer or larger tractors to implements designed for the smaller 1000 RPM 21-spline stub shaft standard.
Specifications
- Female End: 1-3/4" (44.5mm) - 20 Spline
- Male End: 1-3/8" (35mm) - 21 Spline
- Connection Type: Clamp Bolt
- Increases PTO Shaft Length: 5-1/2"
- Overall Length: 7-7/8" (200mm)
- Duty Rating: Heavy Duty - Over 70 HP
Compatible Models
Universal Fitment: Compatible with tractors from most major agricultural brands including Fits John Deere, Fits Case IH, Fits New Holland, Fits Massey Ferguson, AGCO, and others equipped with a 1-3/4" 20-spline PTO output shaft.
Replaces Part Number(s):
03-32-01491, 0332-01491, 033201491, 442-3201491
Also referenced as Sparex S.13371 / CLO70-0026.
New aftermarket replacement part - not remanufactured, not used.
