RE197482 Clutch Kit Fits John Deere 5415 5415N 5425 5425N 5525 5615 5715 5725N
RE197482 Clutch Kit Fits John Deere 5415 5415N 5425 5425N 5525 5615 5715 5725N
Couldn't load pickup availability
One New Aftermarket Replacement Dual Stage Clutch Kit Fits John Deere Tractors

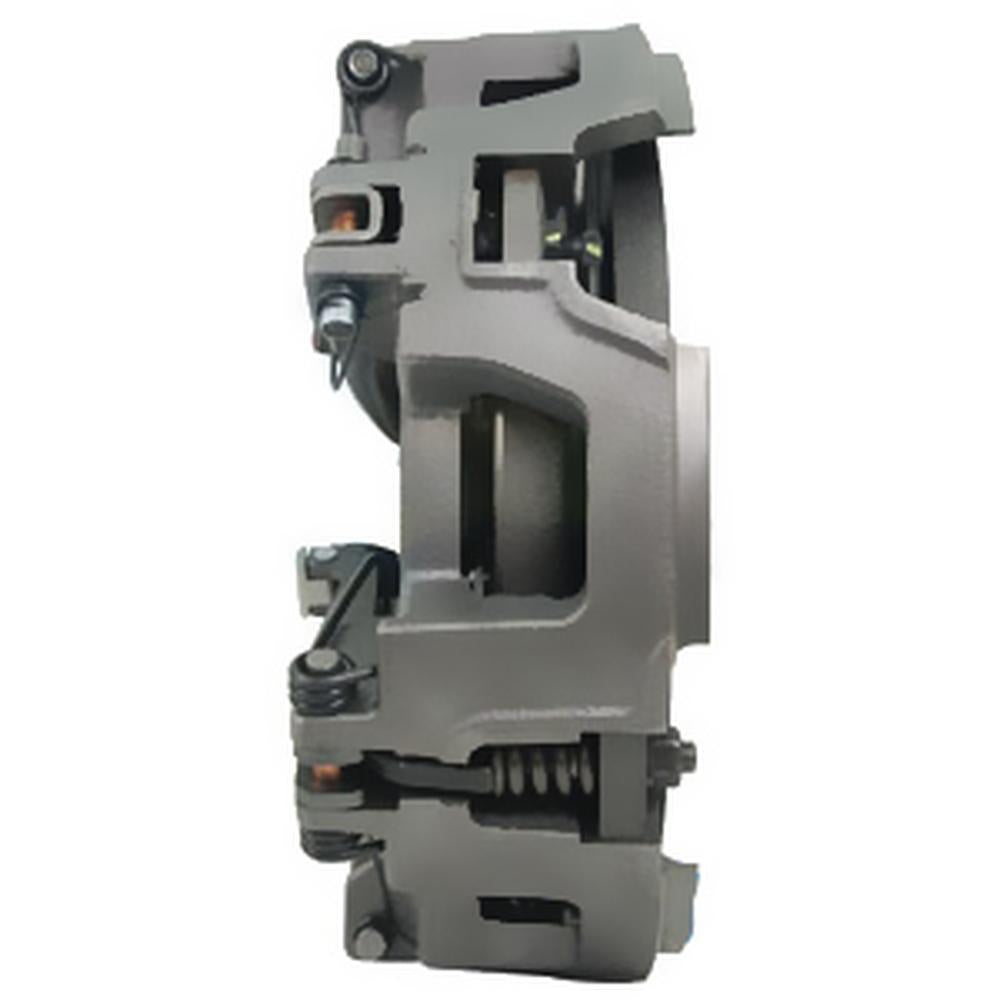

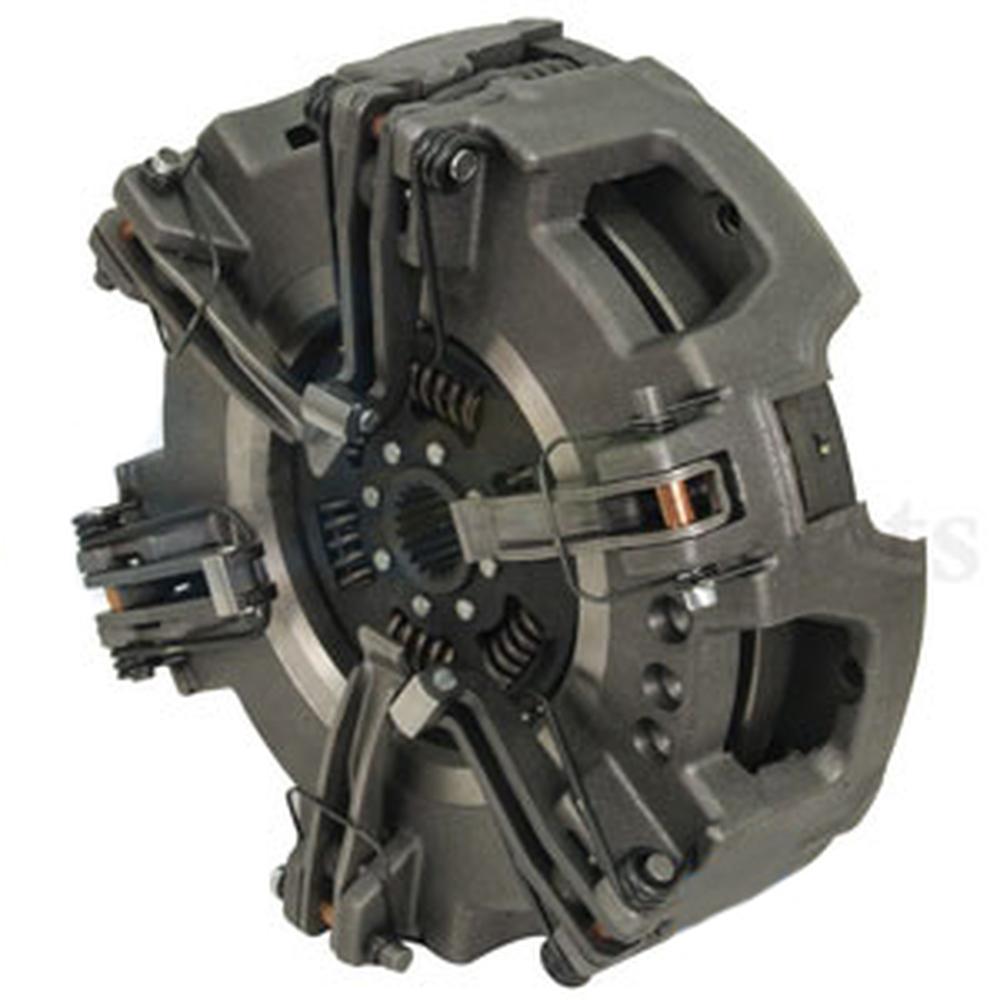

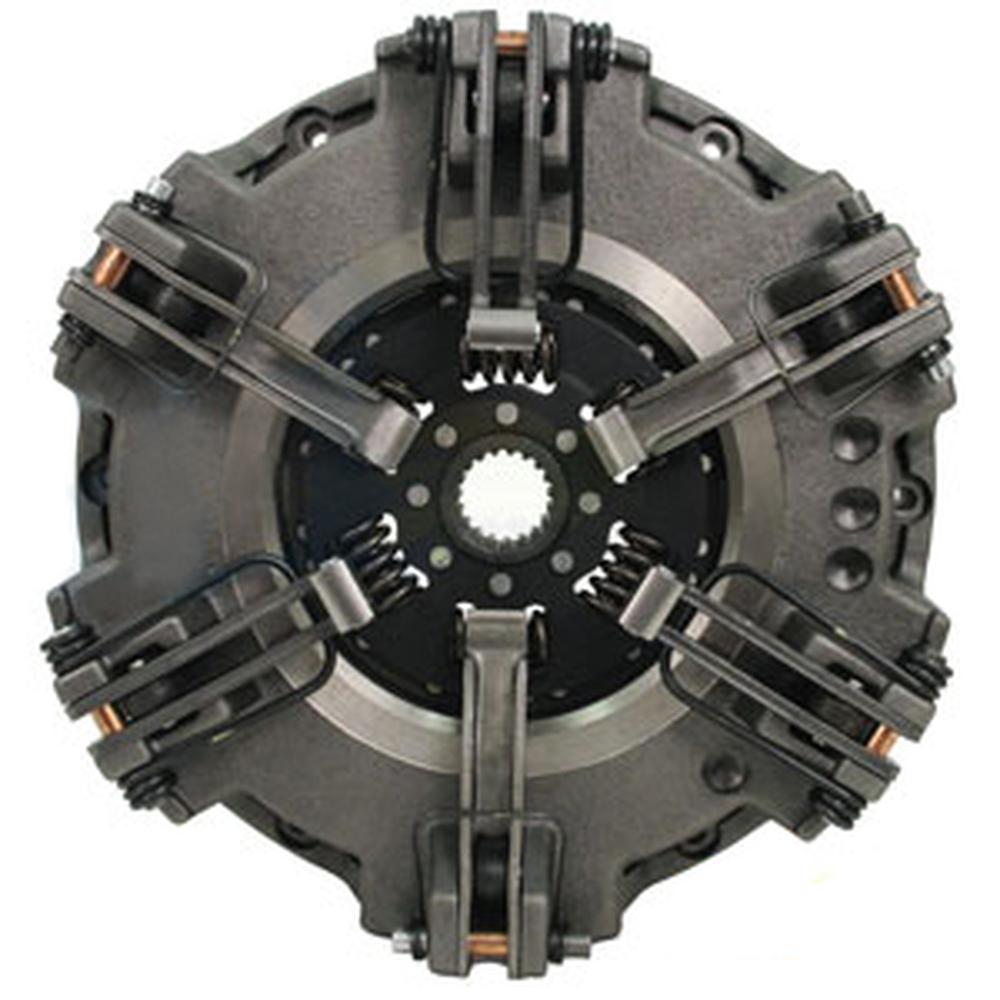

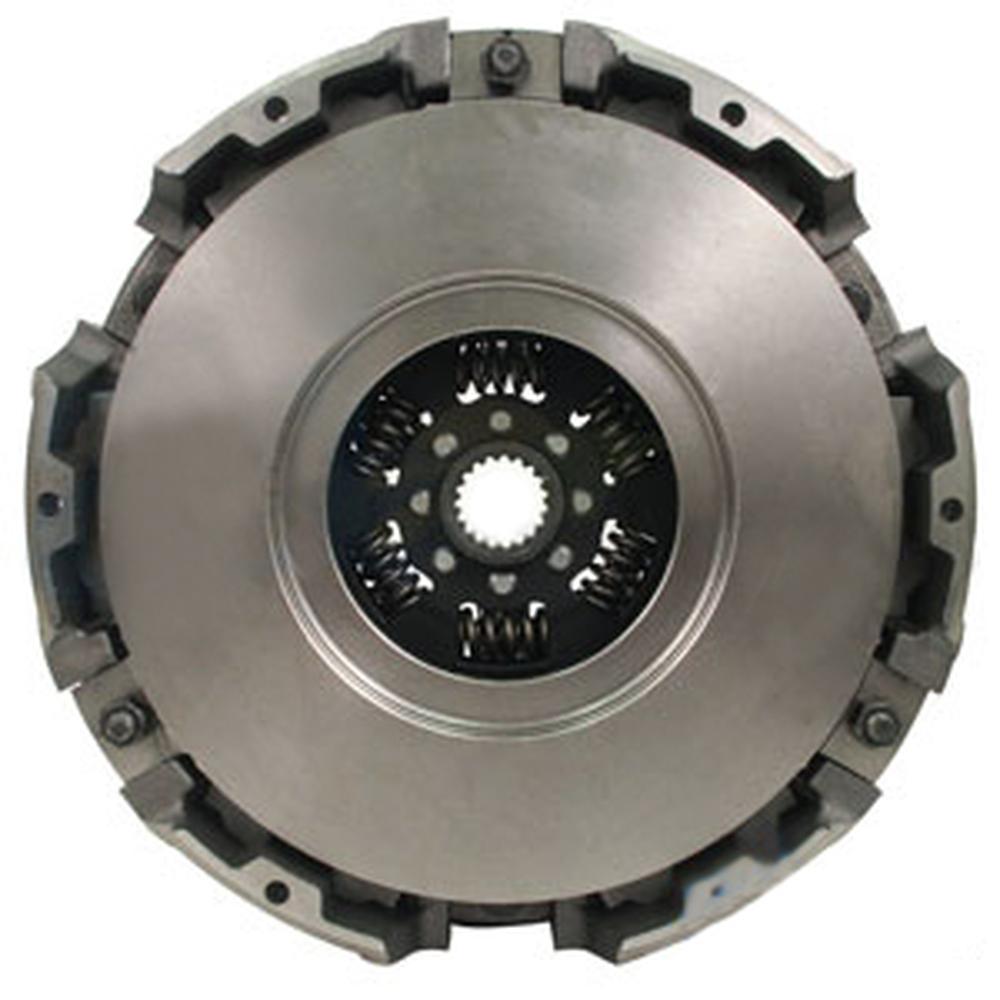

This 11-inch dual stage clutch kit Fits John Deere OEM part RE197482 and is designed for use in the transmission and PTO clutch system of Fits John Deere 5000-series tractors. The kit includes a pressure plate assembly, transmission disc, PTO disc, transmission release bearing, PTO release bearing, and pilot bearing. Note: fits 5415 tractors from s/n 002288 and later, 5615 from s/n 002319 and later, and 5715 from s/n 003601 and later. Verify flywheel cast plate thickness is 0.635" with casting #220224900 before ordering -- if your tractor requires the RE211277 pressure plate (flywheel step spec 0.787"), this kit is not correct for your application.
Kit Includes
- 11" Pressure Plate Assembly (6-lever)
- Transmission Disc (Captive, 6-pad, 1-3/8" x 19 spline hub, spring center) -- replaces RE225677
- PTO Disc (Flywheel side, 4-pad, 1" x 13 spline hub, solid center)
- Transmission Release Bearing (1.773" ID)
- PTO Release Bearing (2.555" ID)
- Pilot Bearing (0.669")
Specifications
- Clutch Size: 11"
- Pressure Plate Levers: 6
- Transmission Disc Hub: 1-3/8" x 19 spline
- PTO Disc Hub: 1" x 13 spline
- Transmission Disc Center: Spring
- PTO Disc Center: Solid
- Transmission Disc Type: 6-pad captive
- PTO Disc Type: 4-pad
- Flywheel Cast Plate Thickness: 0.635" (casting #220224900)
Compatible Models
Fits John Deere 5000 Series Tractors: 5415 (s/n 002288 and later), 5415H, 5415N, 5425, 5425N, 5525, 5615 (s/n 002319 and later), 5625, 5715 (s/n 003601 and later), 5715HC, 5725, 5725N
Compatible with Collar Shift or Synchro Shuttle transmission. Verify flywheel step specification before ordering.
Replaces Part Number(s):
RE197482, SJ17028, SJ23133
Aftermarket Interchange Numbers
RE72860, RE73611, R197482UKI, CH18562, RE173315, 1966618C1, 72255431, CH18554, JD9261, RE173314, RE225677 (transmission disc)
New aftermarket replacement part - not remanufactured, not used.
