72763 Clutch Disc 1273253C1 Fits Case IH Harvester 254 255

72763 Clutch Disc 1273253C1 Fits Case IH Harvester 254 255

£107.00 GBP
£107.00 GBP
Sale Sold out
Shipping calculated at checkout.

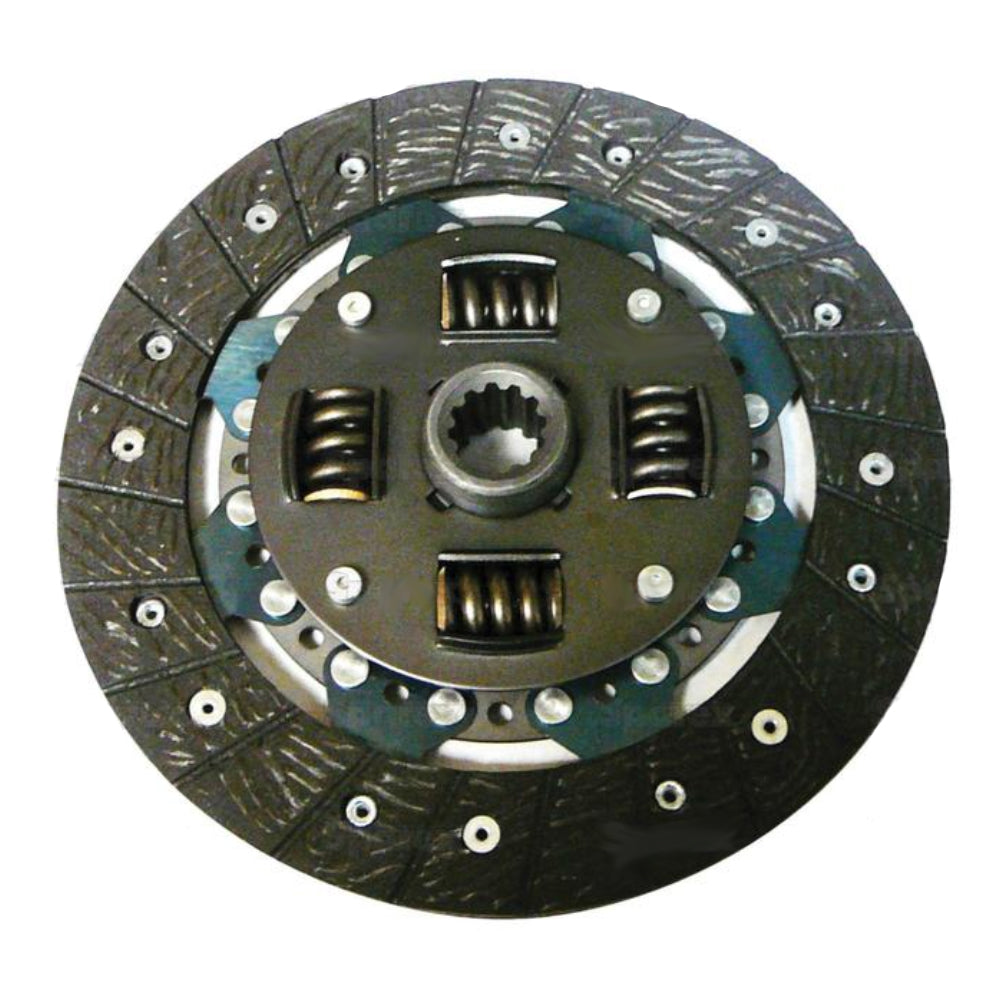

One New Aftermarket Replacement 8" Clutch Disc Fits Case IH Compact Tractors

This single-stage woven clutch disc replaces the OEM clutch disc in the main transmission clutch assembly on Fits Case IH (Fits Case/International Harvester) and Fits International Harvester compact tractors, as well as compatible Hinomoto, Yanmar, Fits Mitsubishi, and Mahindra models. The spring-center, woven-type disc engages the flywheel to transfer engine power to the drivetrain and is a direct-fit aftermarket replacement for OEM part numbers 1273253C1 and 1346877C1.

Specifications

  • Clutch Disc Diameter: 8"
  • Center Hub Diameter: 13/16" (0.8125")
  • Spline Count: 12
  • Center Type: Spring
  • Disc Type: Woven

Compatible Models

Fits Case IH: 244, 245, 254, 255, 265, 1120

Hinomoto: E1804, E2002, E2004, E2302, E2304

Yanmar: YM2001

Fits Mitsubishi: MT210, MT210D, MT250, MT1801, MT2001, MTE2000

Mahindra: 2015, 2216, 2415, 2516, MAX 22, MAX 24, MAX 25, MAX 26, MAX 28

Replaces Part Number(s):

1273253C1, 1346877C1, 1346877C1R, 19631112000, H1273253, MA-19631112000, S72763

Aftermarket Interchange Numbers

72763, CLC90-0064, W-72763, CD-MT80012

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

245, MAX 25, E2002, MT250, MAX 26, 2415, MAX 28, MAX 24, 255, 2216, 210D, 210, 265, E2302, E2304, E2004, YM2001, E1804, 254, 2516, 2015, 244, MAX 22

Reference Numbers:

1346877C1, 19631112000, 1273253C1, S72763, H1273253, MA-19631112000, 1273253C1, 1346877C1, 1346877C1R, 19631112000, H1273253, MA-19631112000

Product Category:

Agriculture
