Carburetor TSX-241A, TSX241A, TSX-241B, TSX241B Tractor
Carburetor TSX-241A, TSX241A, TSX-241B, TSX241B Tractor
Couldn't load pickup availability

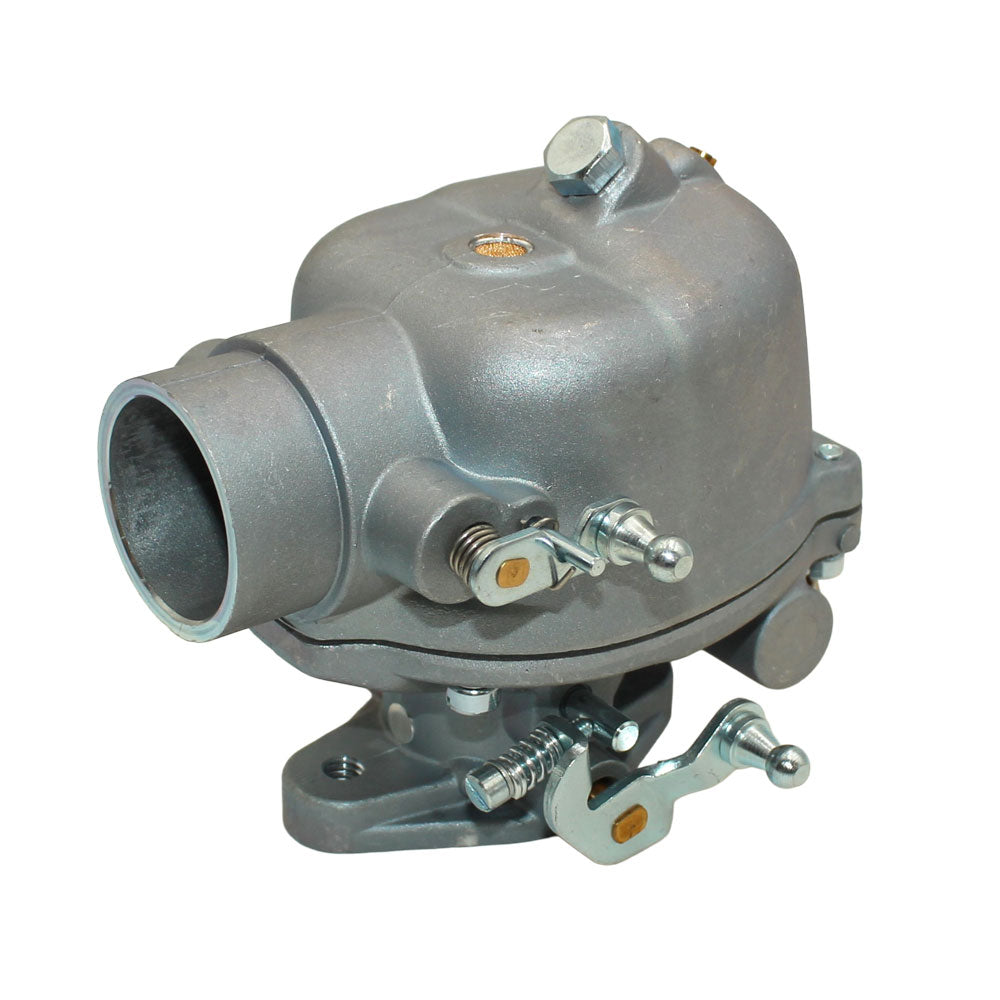

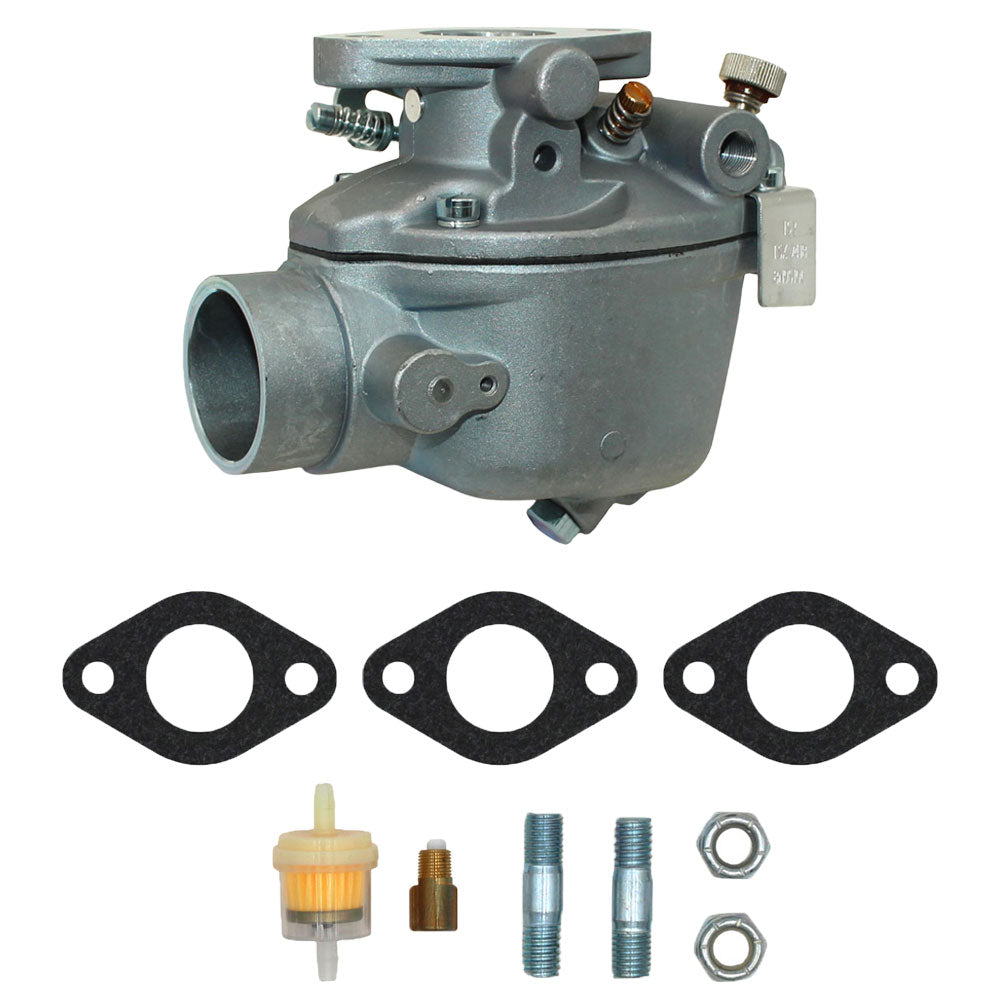

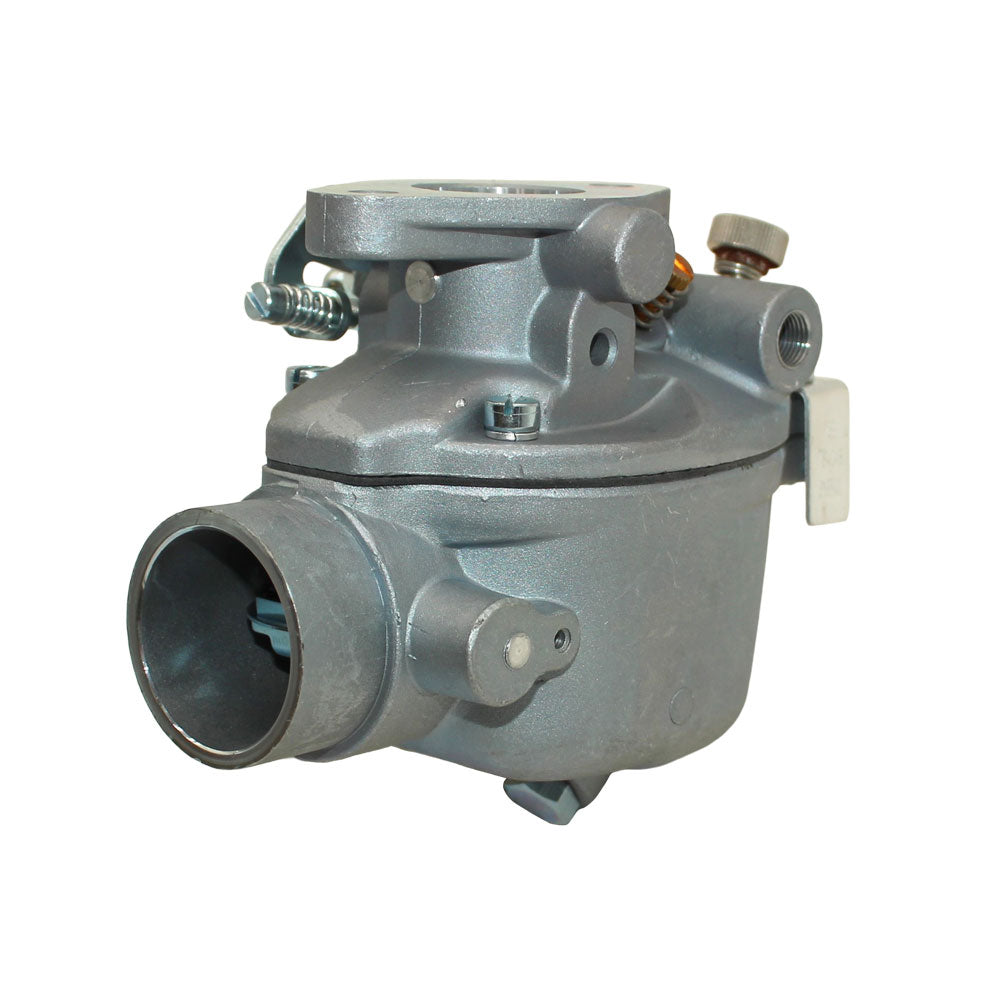

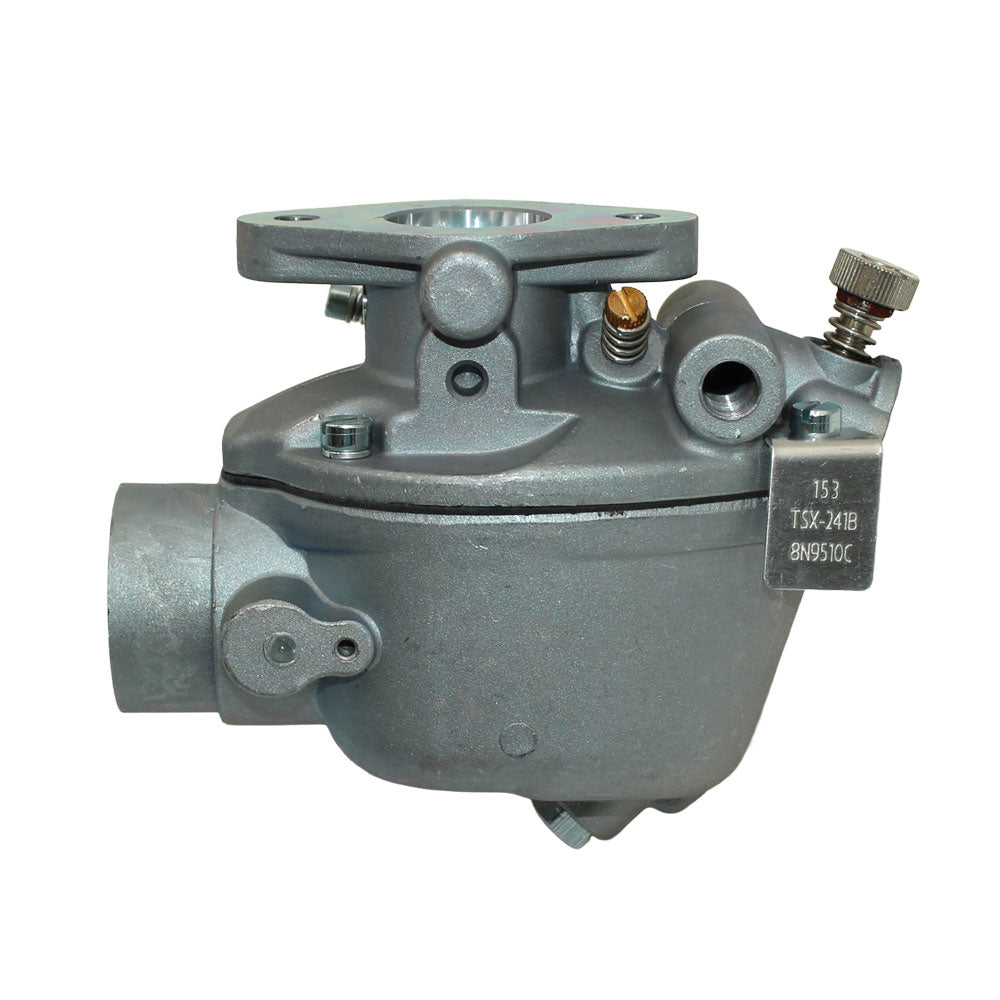

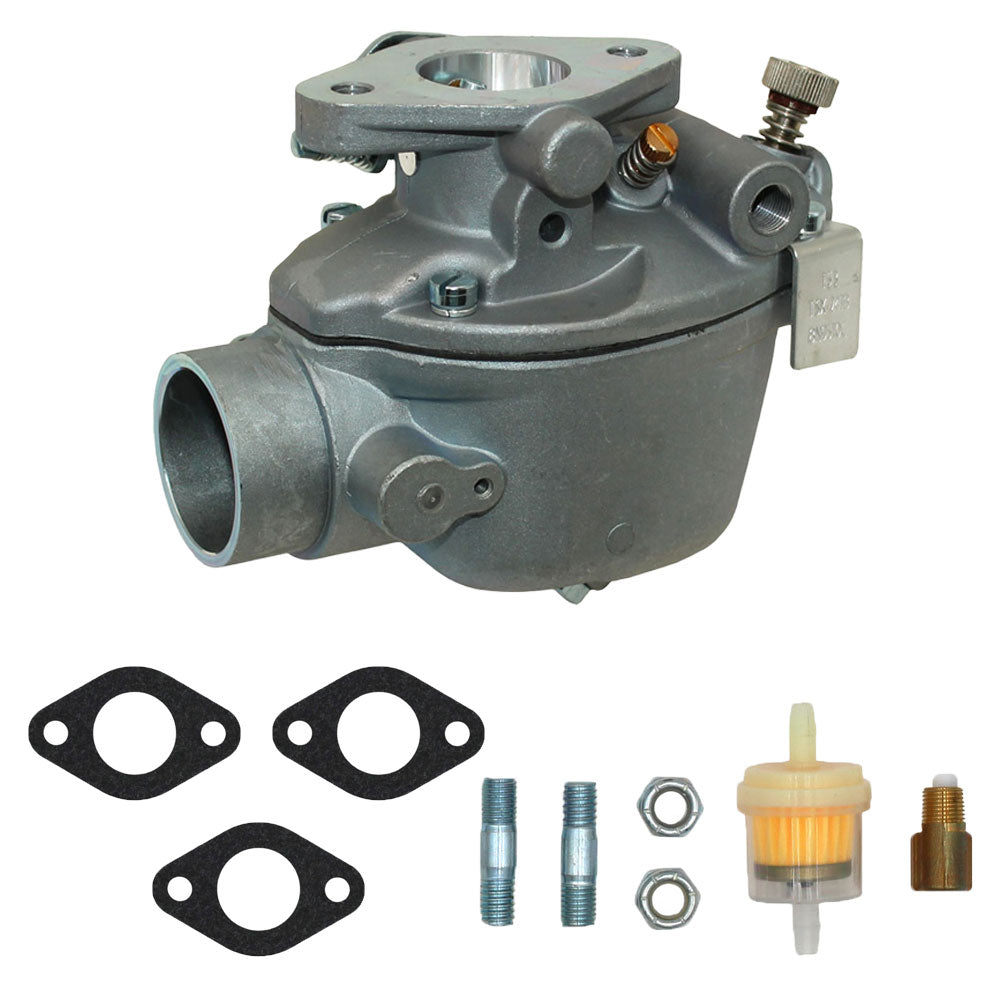

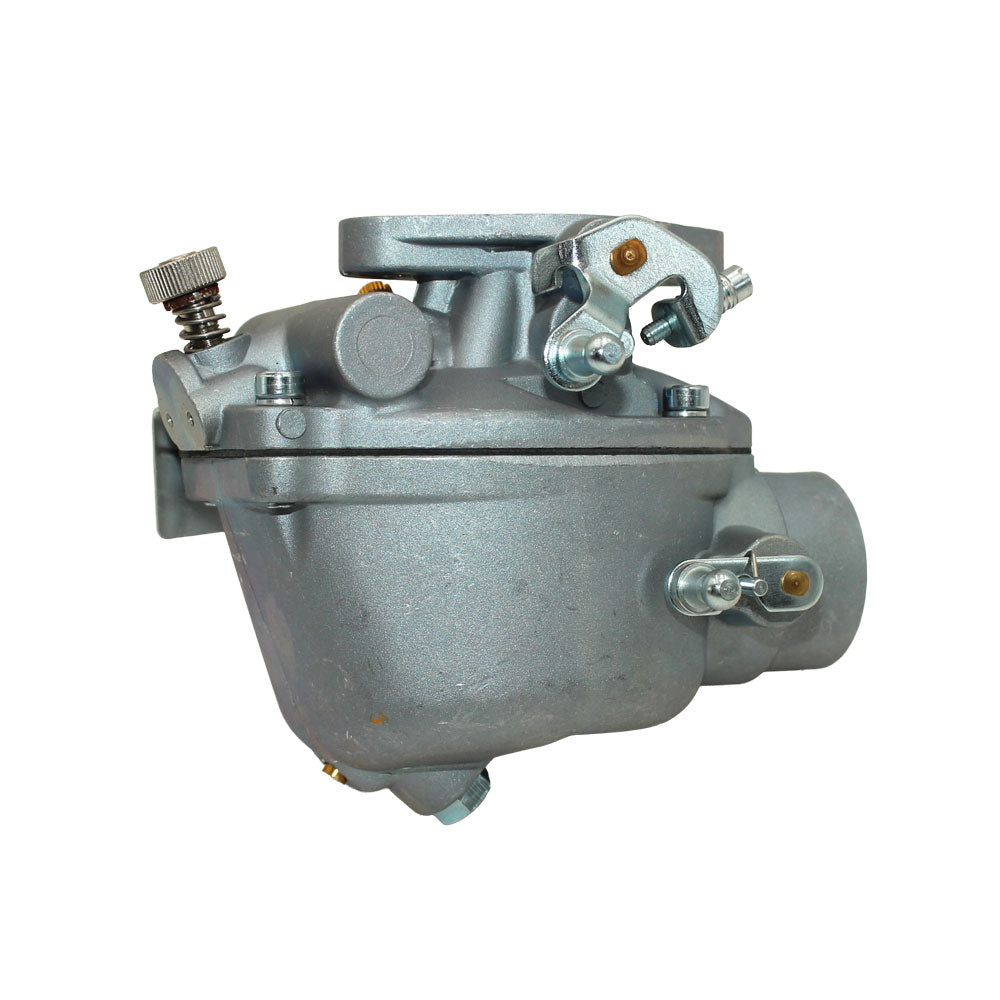

One New Aftermarket Replacement Carburetor Fits Ford (Fits Ford/New Holland) N-Series Tractors
This Marvel-Schebler style carburetor is a direct-fit aftermarket replacement for the fuel system on Fits Ford N-Series tractors equipped with the 120 cubic inch flathead engine. The carburetor mounts on the right-hand side of the engine and meters fuel and air for combustion. It replaces Marvel-Schebler carburetor numbers TSX-241A and TSX-241B as well as the Fits Ford OEM numbers listed below. Note: This carburetor is Fits Ford 9N, 2N, and 8N with flathead engines ONLY. It will NOT fit overhead valve engines or Fits Ferguson tractors. New carbs are not pre-adjusted to final specs due to age and wear variances among tractors; mixture, idle, and float adjustments may be needed after installation.
Specifications
- Mounting bolt center-to-center: 2-1/4"
- Throttle body throat diameter: 1-1/16"
- Choke air horn (air inlet) outside diameter: 1-33/64" (1.515")
- Fuel inlet: 1/8" NPT
- Engine: 120 cubic inch flathead (side-valve)
Compatible Models
Fits Ford N-Series: 9N (1939-1942), 2N (1942-1947), 8N (1947-1952) - flathead engine models only
Replaces Part Number(s):
9N9510A, B3NN9510A, 8N9510C, FSC30-0032
Aftermarket Interchange Numbers
Marvel-Schebler: TSX-241A, TSX241A, TSX-241B, TSX241B, TSX33; Zenith: 0-13876, 13876
New aftermarket replacement part - not remanufactured, not used.
