Manifold with Gaskets & Nuts Fits Ford Replaces CAPN5200A

Manifold with Gaskets & Nuts Fits Ford Replaces CAPN5200A

£105.00 GBP
£105.00 GBP
Sale Sold out
Shipping calculated at checkout.

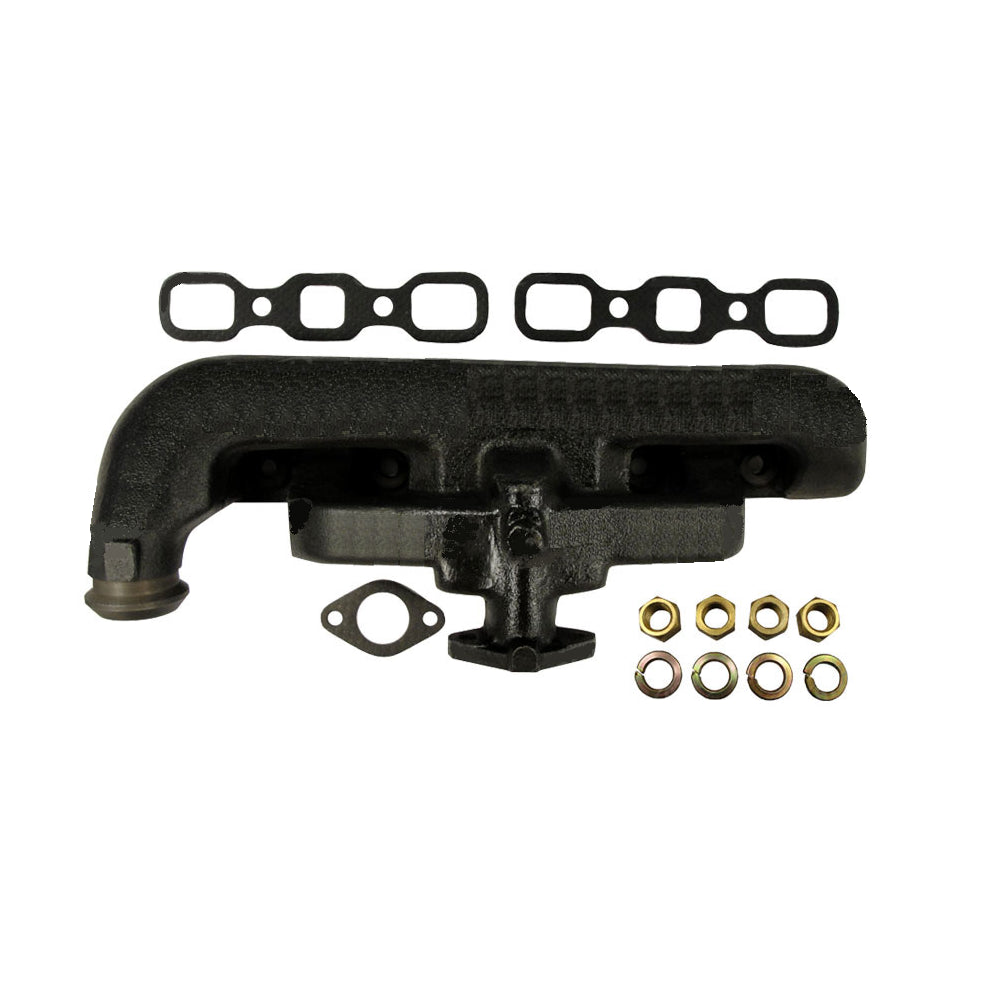

One New Aftermarket Manifold with Gaskets & Nuts

Tech Info:
 -(1) 4-pc Nut Kit for Manifolds
 -This kit includes brass nuts and yellow zinc plated washers.
 -7/16" x 20 pitch, brass w/lock washer.
 -
 -(2) Manifold Gaskets
 -Replace Part Number: 9N-9448
 -

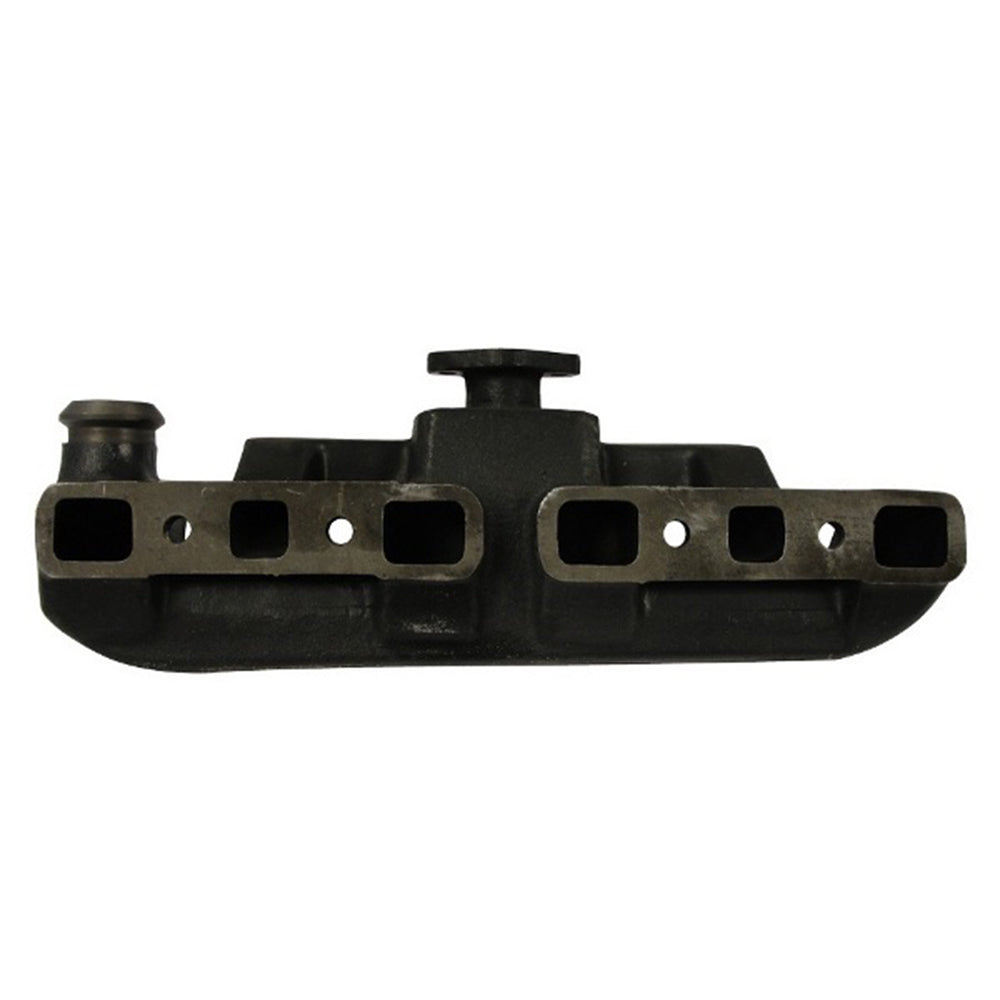

 -(1) Manifold
 -The center to center bolt holes are 2 1/2" on the flange.
 -The ID on the flange is 1".
 -The exhaust is 1 3/16" ID and 2 1/16" OD.
 -Overall length is 17" Approximately
 -Replaces Part Numbers: 9N9425WG
 -
 -(1) Carburetor to Manifold Gasket
 -2-7/8" x 1-34"
 -2-1/4" C-to-C
 -Replaces Part Numbers: 15162A, 1506634M1, 181531M2

Made to Fits Ford:
 Utility Tractor Models: 9N, 2N, 8N
 Replaces Part Number(s): CAPN5200A

Models This Part Fits:

2N, 9N, 8N

Additional Information:

(1) 4-pc Nut Kit for Manifolds This kit includes brass nuts and yellow zinc plated washers 7/16" x 20 pitch, brass w/ lock washer (2) Manifold Gaskets Replace Part Number: 9N-9448 (1) Manifold The center to center bolt holes are 2 1/2" on the flange The Inner Diameter on the flange is 1" The exhaust is 1 3/16" ID and 2 1/16" Outer Diameter Overall length is 17" Approximately Replaces Part Numbers: 9N9425WG (1) Carburetor to Manifold Gasket 2-7/8" x 1-34" 2-1/4" Center to Center Replaces Part Numbers: 15162A, 1506634M1, 181531M2

Reference Numbers:

CAPN5200A
