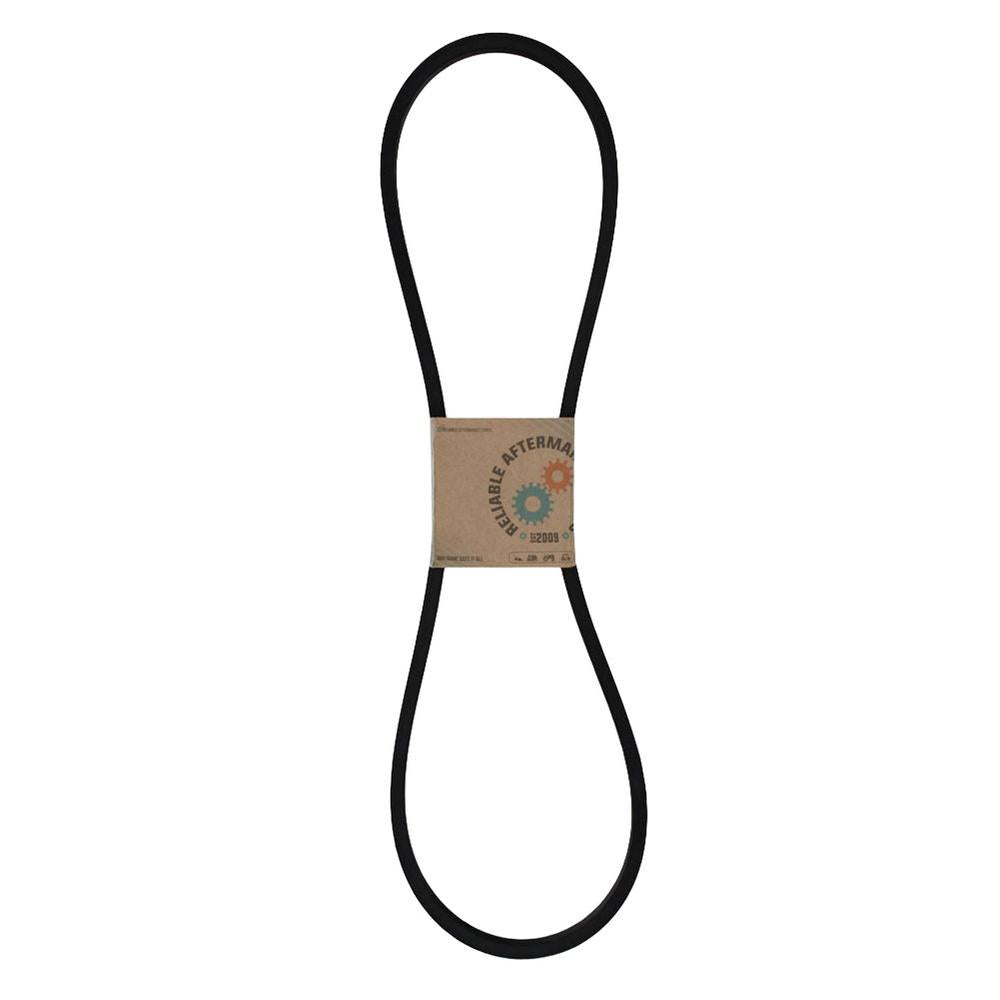

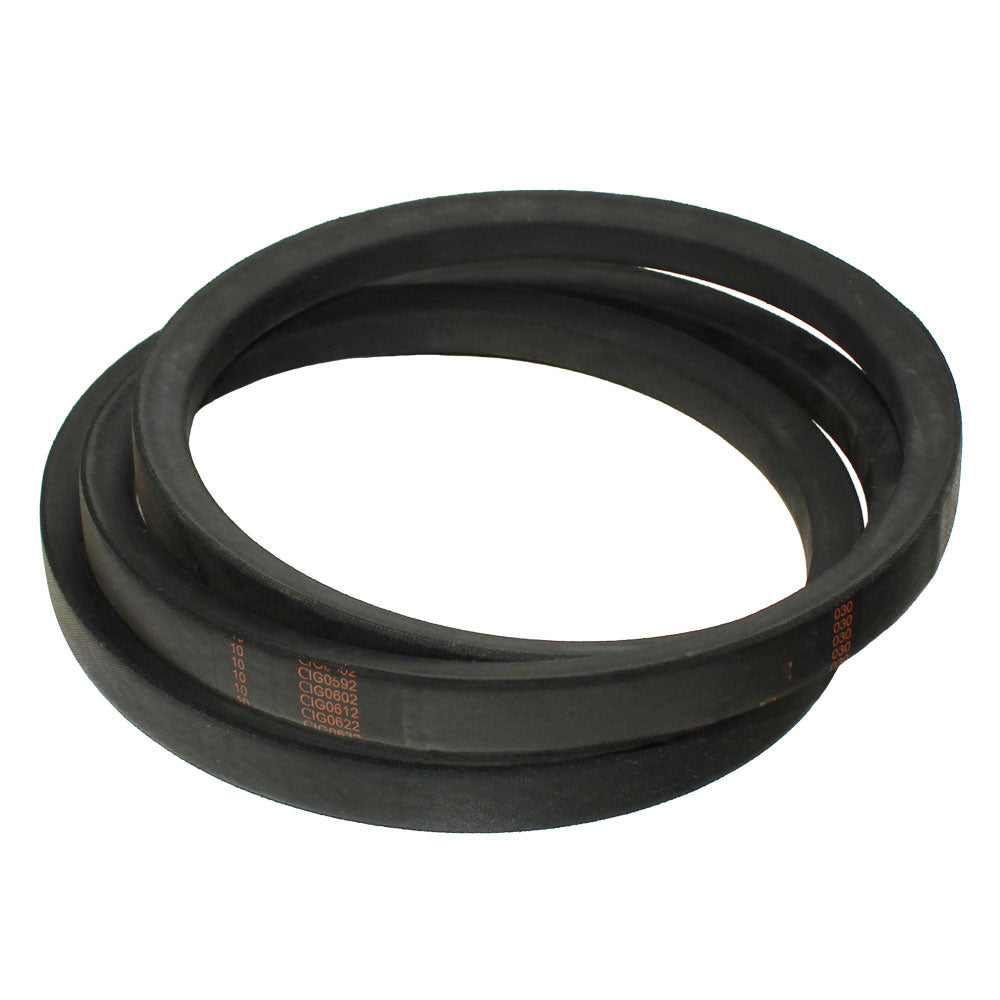

C80 57174 Industrial Classical V-Belt 7/8" x 84"
C80 57174 Industrial Classical V-Belt 7/8" x 84"
Couldn't load pickup availability
One New Aftermarket Replacement C80 Classical V-Belt for Agricultural and Industrial Equipment
This C80 Classical V-Belt is a standard C-section wrapped power transmission belt used across a wide range of agricultural and industrial machinery. The V-shaped profile wedges into sheave grooves to multiply tensioning force and increase friction on pulley sidewalls, delivering efficient rotational power transfer between drive shafts. Constructed with polyester cord tensile reinforcement and a protective outer fabric wrap, this belt is built for cool running, flexibility, and long service life.
Specifications
- Belt Section: C (Classical)
- Top Width: 7/8"
- Depth: 17/32"
- Thickness: 0.551"
- Outside Circumference (O.C.) Length: 84"
- Inside Length: 80"
- Material: Polyester Cord
- Recommended Minimum Pulley Diameter: 7-1/16" (180 mm)
Compatible Applications
This C80 belt is a universal-fit C-section belt used on agricultural machinery (tractors, tillers, walk-behind mowers, lawn attachments), industrial equipment, HVAC systems, and general power transmission drives. Verify pulley groove profile matches C-section specification before ordering.
Replaces Part Number(s):
C80, 57174
Aftermarket Interchange Numbers
C 80, C-80, A-C80, CP80, Dayco CP80, BTQ-C80, Grainger 13V829, CR303461
New aftermarket replacement part - not remanufactured, not used.
