2K6413 Pin Fits Caterpillar 3116 3126B 3176C 3304 3306 C11 C6.6 C7 C9
2K6413 Pin Fits Caterpillar 3116 3126B 3176C 3304 3306 C11 C6.6 C7 C9
Couldn't load pickup availability

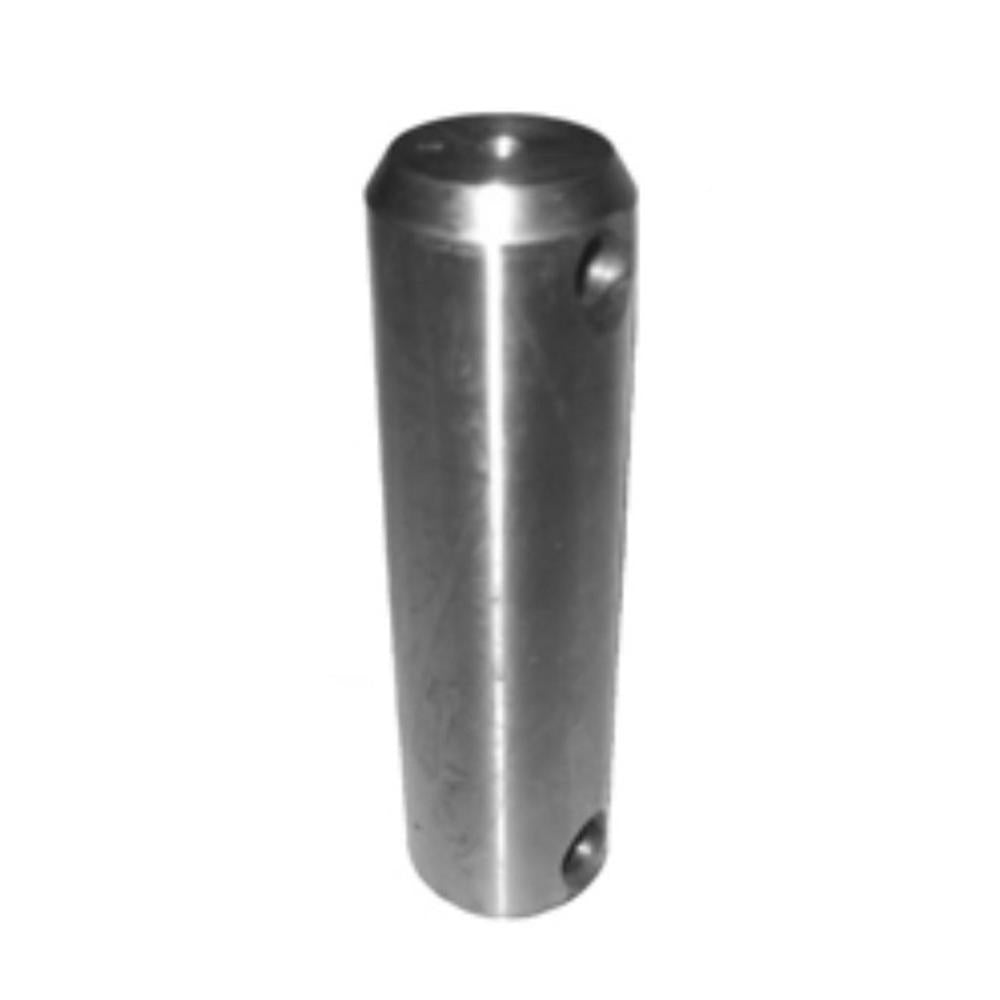

One New Aftermarket Replacement Ripper Tooth Tip Pin Fits Caterpillar (Fits CAT) Motor Graders, Dozers, and Loaders
This aftermarket replacement pin secures the ripper tooth tip to the ripper shank on Fits Caterpillar (Fits CAT) motor graders, track-type tractors, and loaders. Also known as a ripper locking pin, part number 2K6413 (also formatted as 2K-6413) is a ground engaging tool (GET) hardware component used on vertically pinned ripper shanks. The cotter pin that pairs with this pin is part number 3B5325; both are included in the Fits Caterpillar Ripper Tooth Tip Pin Set for tip 6Y0309.
Specifications
- Part Number: 2K6413 (2K-6413)
- Pin Diameter: 44.4 mm
- Overall Length: 164.8 mm
- Centerline to Centerline: 133 mm
- Hole Diameter: 13.1 mm
- Shortest to Hole: 15.9 mm
- Weight: approximately 4.1 lbs
Compatible Models
Fits Caterpillar Motor Graders: 12E, 12F, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M II, 12M III, 12M III AWD, 120K, 120M, 120M II, 130G, 140B, 140G, 140H, 140H ES, 140H NA, 140K, 140K II, 140M, 140M II, 140M III, 140M III AWD, 143H, 14G, 14H, 160M, 160M II, 160M III
Fits Caterpillar Engines (as listed in title): 3116, 3126B, 3176C, 3304, 3306, C6.6, C7, C9, C11
Fits Caterpillar Track-Type Tractors / Dozers and Loaders: 941, 951, 955, 963, 977
Replaces Part Number(s):
2K6413, BUN90-0008
Aftermarket Interchange Numbers
2K-6413, 3602270, 9J8910
New aftermarket replacement part - not remanufactured, not used.
