Brake Rod Clevis Fits Massey Ferguson 65 65 165 175 184334M1 184326M91 38A150

£20.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

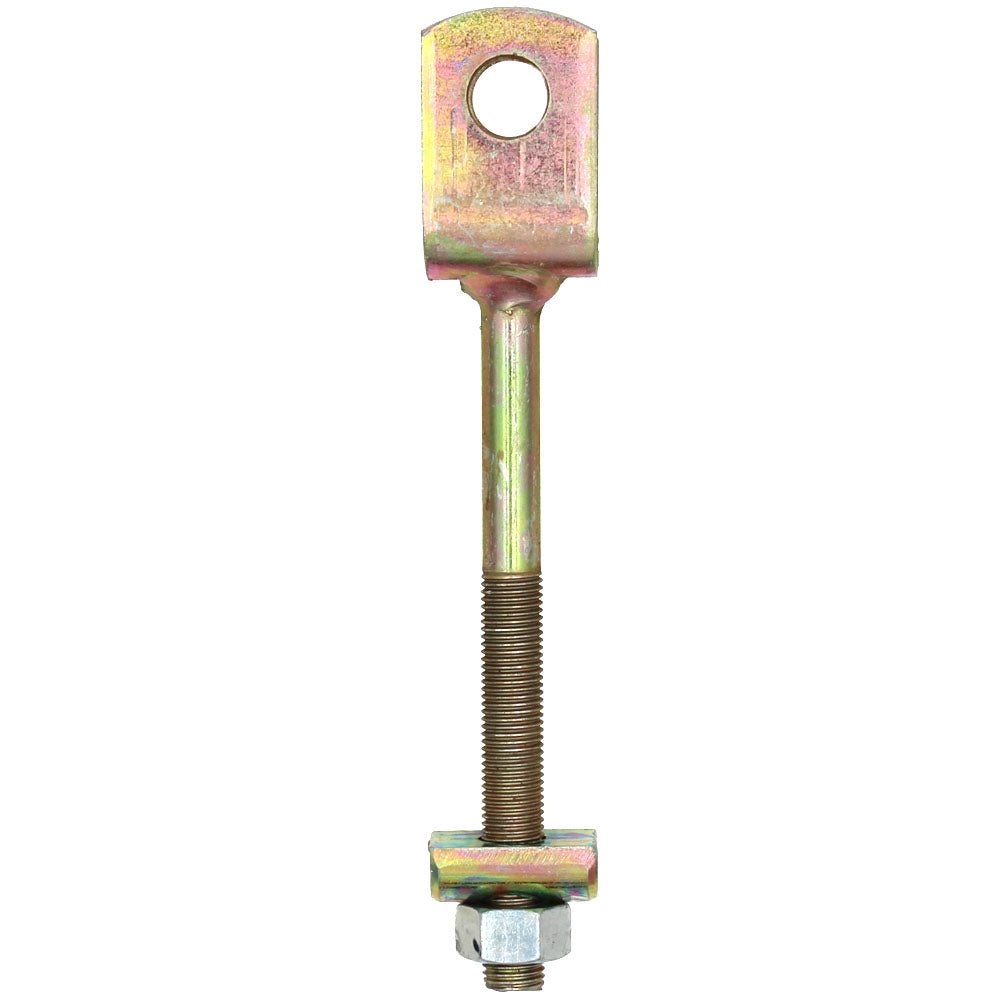

One New Aftermarket Replacement Brake Rod Clevis for Massey Ferguson Tractors and Industrials

This brake rod clevis is a key component of the dry brake system on Massey Ferguson tractors and industrial machines, connecting the brake pedal linkage to actuate the brakes. It features a 7/16-20 UNF right-hand thread rod with a forked clevis end for pin attachment. Note: Spacer and nut are not included.

Specifications

Overall Length: 7.19"
Hole Diameter: 0.500"
Center of Hole to End of Threads: 6.62"
Length of Rod up to Fork: 6.62"
Width Between Fork: 0.670"
Thread: 7/16-20 UNF Right-Hand
Length of Threads: 1.75"

Compatible Models

Massey Ferguson Tractors: 30, 31, 40, 50, 65, 65 US Built, 99, 135, 135 US Built, 145, 150, 152, 155, 158, 165, 165 US Built, 175, 175 US Built, 178, 180, 203, 203X, 205, 205X, 765, 865, 1080

Massey Ferguson Industrial: 30, 31, 40, 50, 3165

Massey Ferguson Backhoe Loader: 65

Note: For Massey Ferguson 65, fitment applies to serial number 692932 and later. For Massey Ferguson 165 UK, fitment applies to serial number 597745 and earlier.

Replaces Part Number(s):

184334M1, 184326M91, 184324M91, 38A150

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

3165, 175 US BUILT, 203X, 155, 50, 765, 65 US BUILT, 145, 40, 65, 99, 205, 865, 135, 203, 135 US BUILT, 30, 152, 180, 178, 150, 31, 175, 165, 158, 205X, 165 US BUILT, 1080

Additional Information:

Overall Length: 7.19" Hole Diameter: .500" Center of Hole to The End of Threads: 6.62" Length of Rod up to Fork: 6.62" Width Between Fork: .670" 7/16-20 UNF Right Hand Thread Length of Threads: 1.75"
