BP13931 20 Shear Bolts and Nuts For John Deere Balers 224WS 224T 14T 328 348

BP13931 20 Shear Bolts and Nuts For John Deere Balers 224WS 224T 14T 328 348

£16.00 GBP
£16.00 GBP
Sale Sold out
Shipping calculated at checkout.

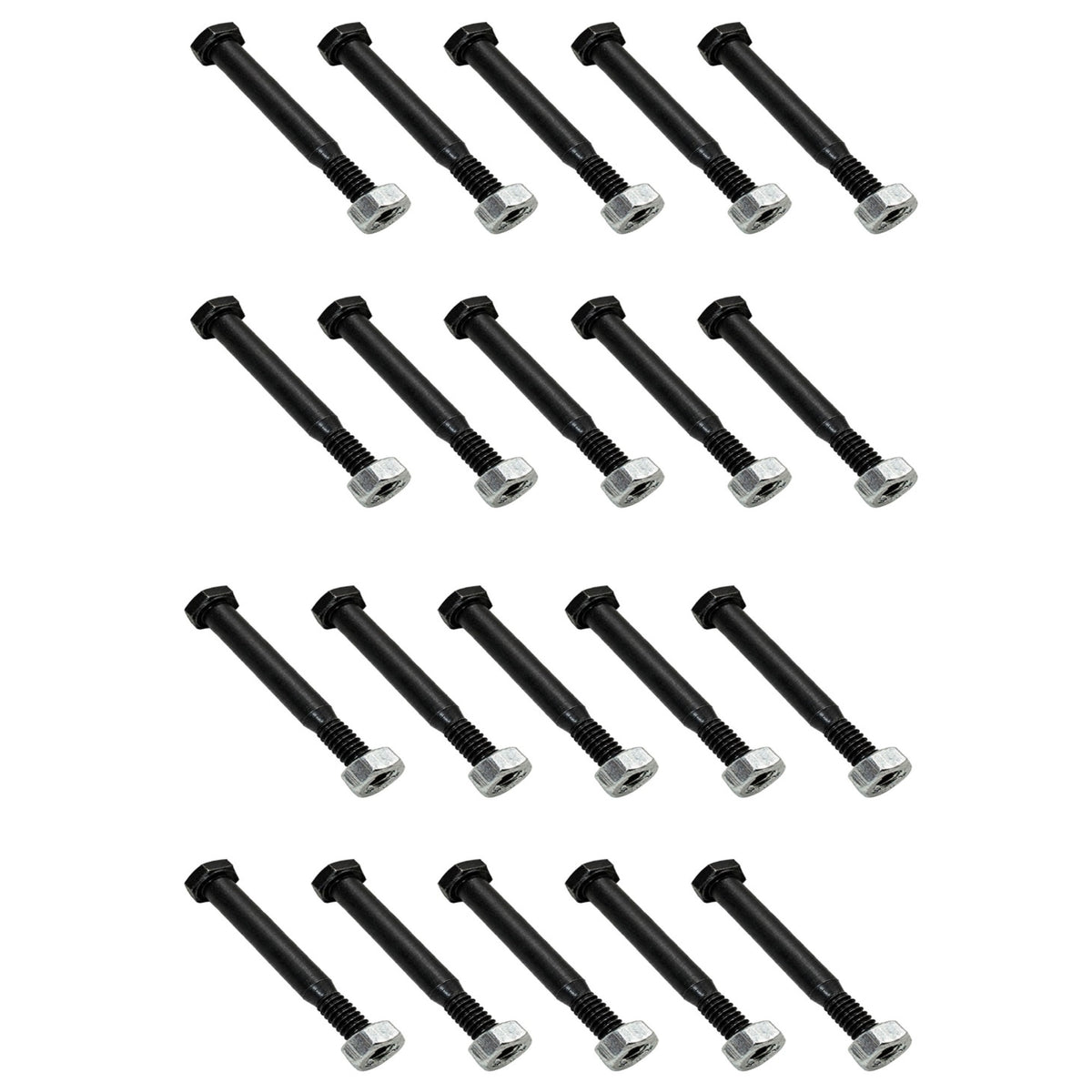

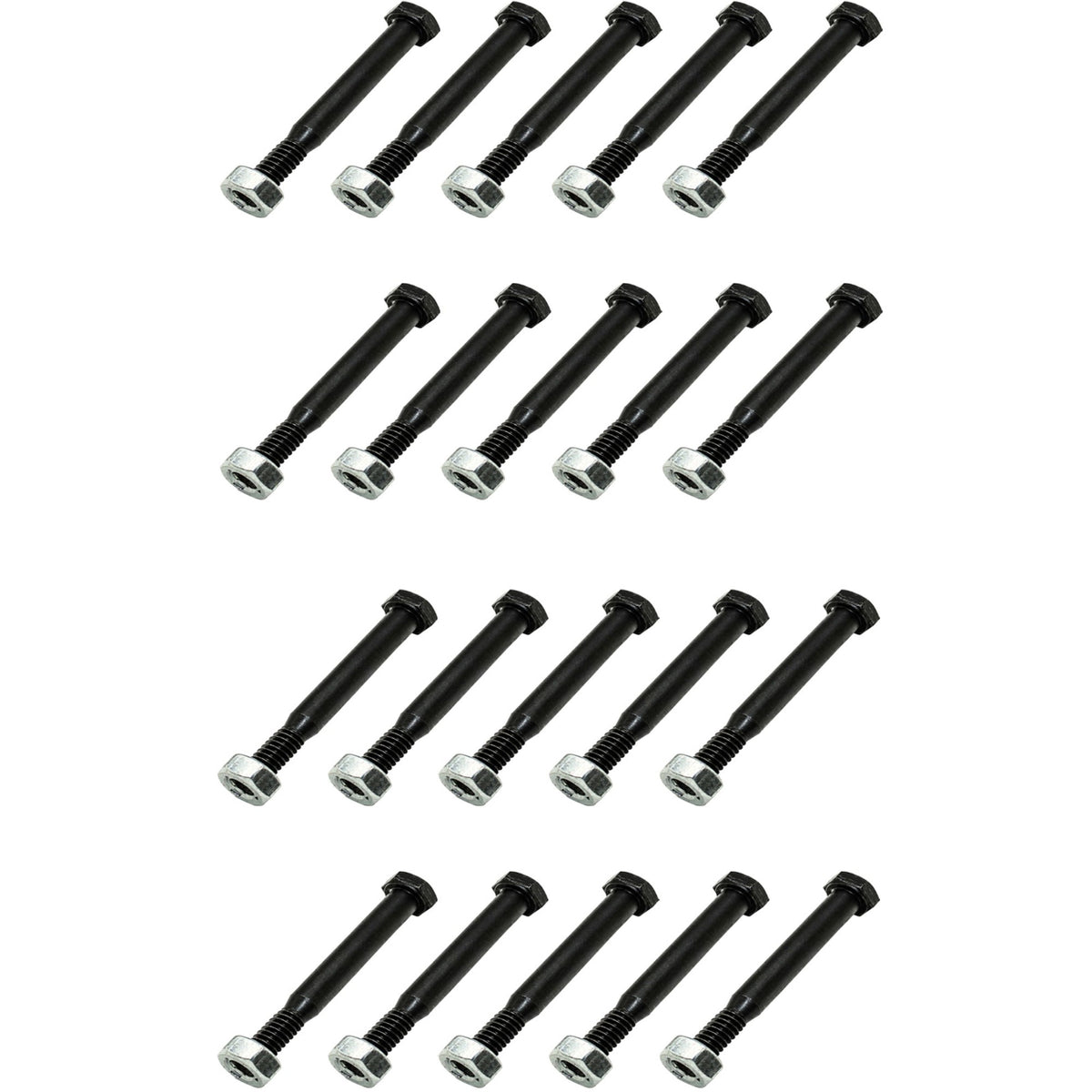

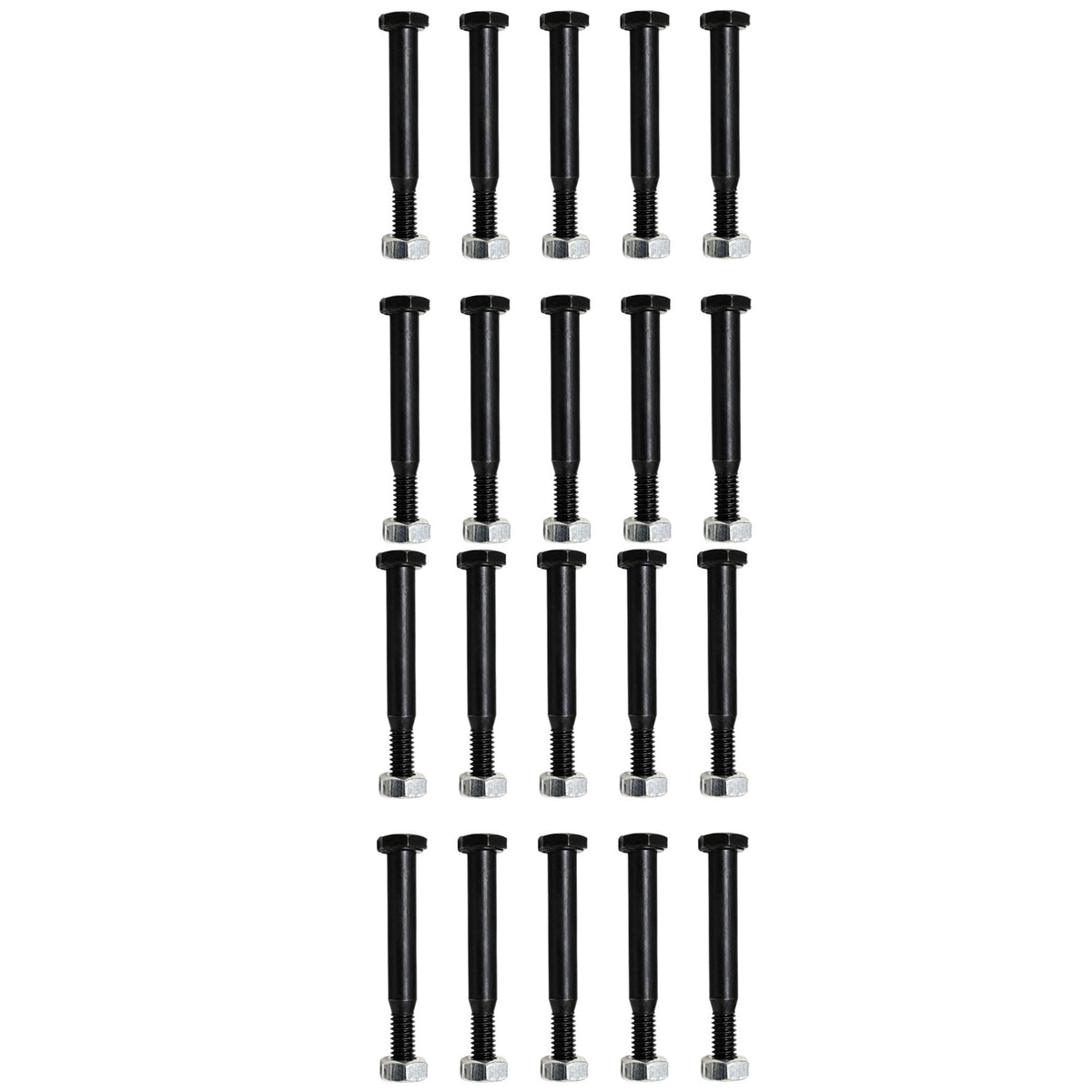

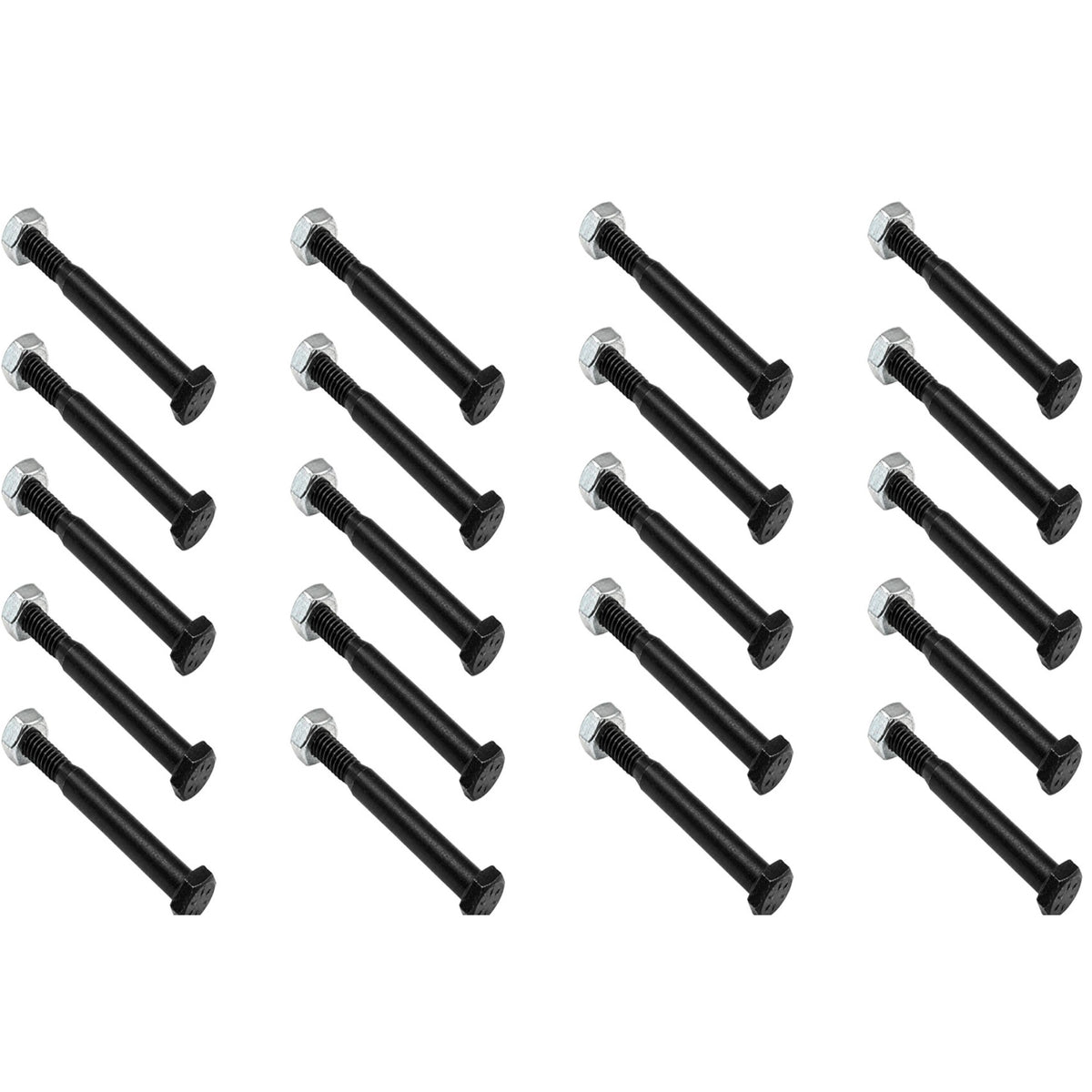

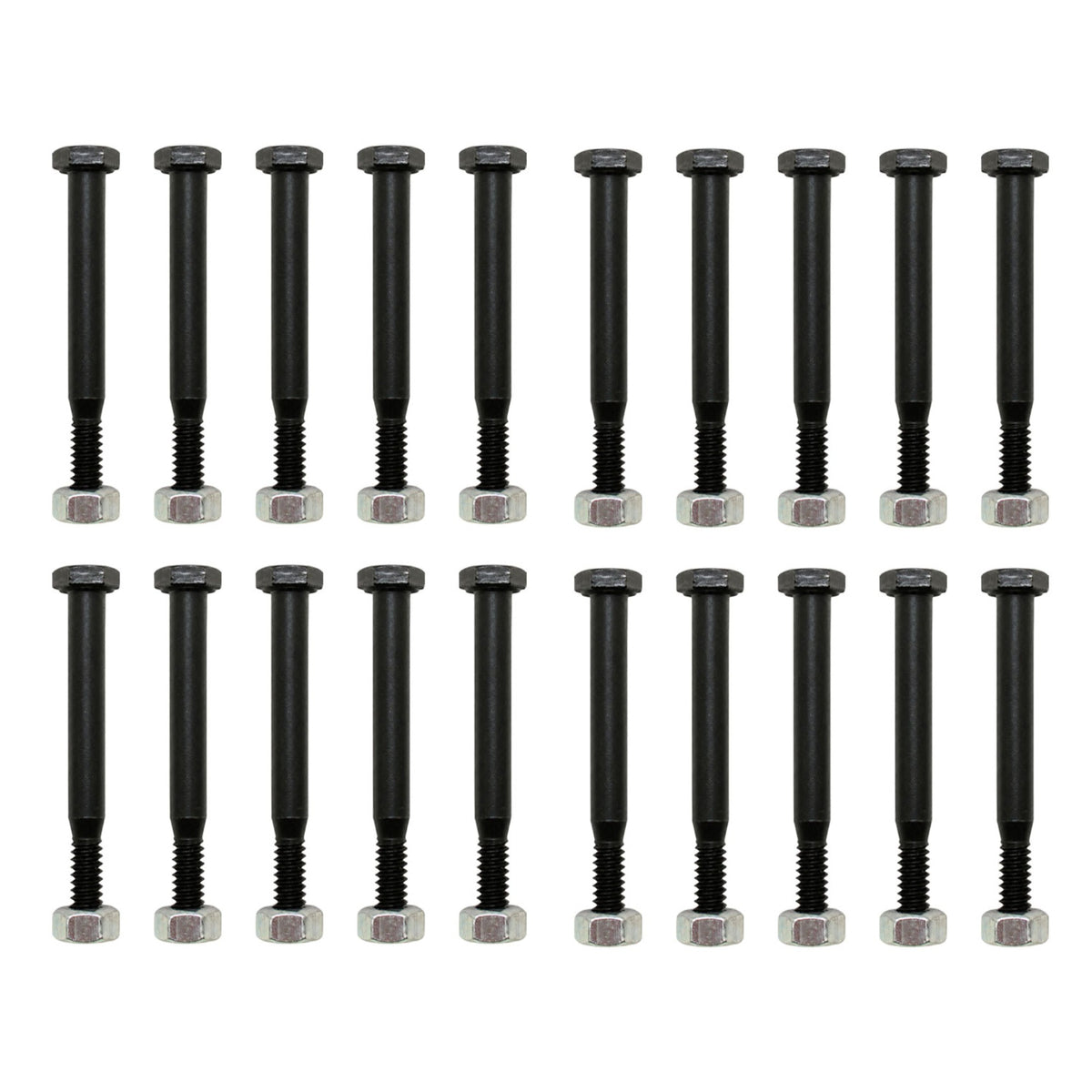

One New Aftermarket Set of Twenty (20) Shear Bolts and Nuts

Fits John Deere Square Baler Models: 10, 14T, 214, 216, 224, 24, 224T, 224WS, 323W, 327, 328, 336, 337, 338, 348

Item Specs:
(20) Shear Bolts:
Diameter: 0.280"
Grade: 8
Overall Length: 2.500"
Thread Length: 0.560"
Thread Size: 1/4"-20 RH UNC
Useable Length: 1.580"

(20) Top Lock Nuts:
Thread Size: 1/4"-20

Replaces Part Number(s): BP13931, AE14495, E45229, B14174, E40202, 714410, JD10

Models This Part Fits:

216, 336, 214, 323W, 10, 224, 224T, 348, 14T, 338, 24, 327, 337, 224WS, 328

Additional Information:

(20) Shear Bolts: Diameter: 0.280" Grade: 8 Overall Length: 2.500" Thread Length: 0.560" Thread Size: 1/4"-20 RH UNC Useable Length: 1.580" (20) Top Lock Nuts: Thread Size: 1/4"-20

Reference Numbers:

BP13931, AE14495, E45229, B14174, E40202, 714410, JD10
