Blade Offset CW Suction Fits John Deere HX10 MX10 HX15 CX15 W45326

Blade Offset CW Suction Fits John Deere HX10 MX10 HX15 CX15 W45326

£64.00 GBP
£64.00 GBP
Sale Sold out
Shipping calculated at checkout.

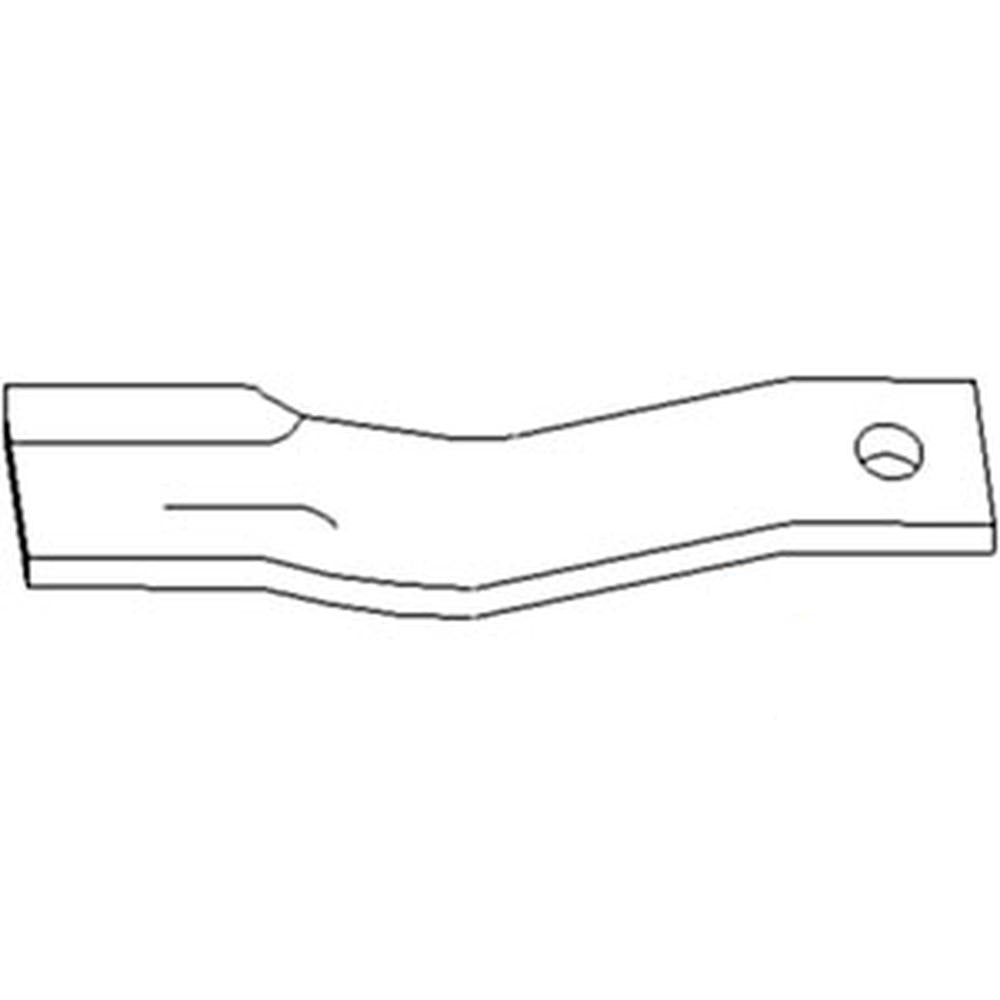

One New Aftermarket Replacement CW Suction Rotary Cutter Blade Fits John Deere Rotary Cutters

This clockwise (CW) suction offset rotary cutter blade is a direct replacement for the left-hand wing position on Fits John Deere HX10, HX15, MX10, and CX15 pull-type and semi-mount rotary cutters. The offset design and suction profile lift and cut crop material efficiently, making it a go-to replacement blade for heavy-duty bush and pasture mowing. Note: For the HX15 and CX15, this blade fits the left-hand wing only on units with serial numbers below the cutoffs listed below -- see Compatible Models for details.

Specifications

  • Overall Length: 21.500"
  • Width: 4.000"
  • Thickness: 0.500"
  • Hole Diameter: 1.500"
  • Center of Hole to End: 19.500"
  • Offset Height: 3.000"
  • Rotation: Clockwise (CW) Suction

Compatible Models

Fits John Deere Rotary Cutters:

  • HX10 (all serial numbers)
  • MX10 (all serial numbers)
  • HX15 -- Left-Hand Wing blade, SN < 004529
  • CX15 -- Left-Hand Wing blade, SN < 002229

Replaces Part Number(s):

W45326, W45326-A

Aftermarket Interchange Numbers

FH329913 (supersedes W45326), HAW45326 (Herschel)

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

MX10, HX10, HX15, CX15

Additional Information:

Center of Hole to End: 19.500" Hole Diameter: 1.500" Offset Height: 3.000" Overall Length: 21.500" Thickness: 0.500" Type: CW Width: 4.000"

Reference Numbers:

W45326

Product Category:

Agriculture
View More: Agriculture Replacement Parts

Product Sub Group:

Rotary Cutter
View More: Rotary Cutter Replacement Parts
