B1ABM34TL Carabiner, Climbing, Am'D, Petzl

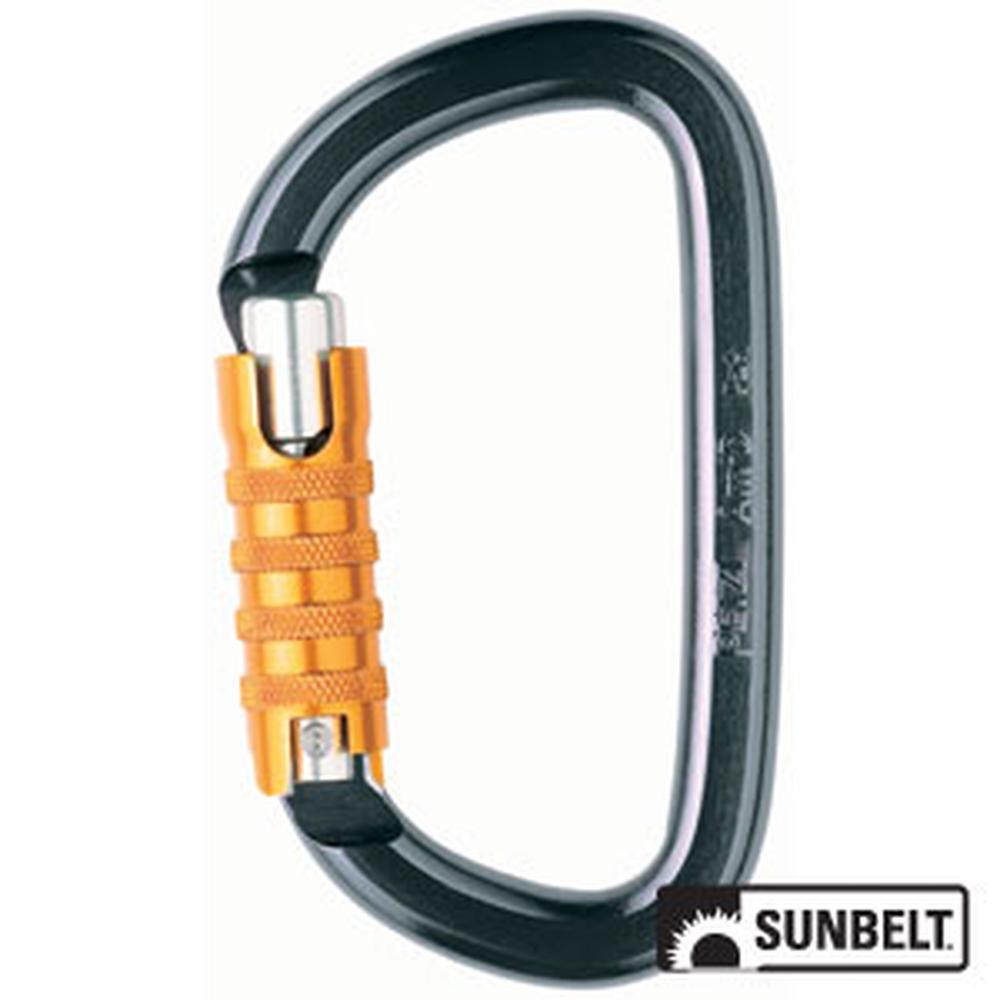

Petzl Am'D TRIACT-LOCK Asymmetrical Aluminum Carabiner (B1ABM34TL)

The Petzl Am'D TRIACT-LOCK is a lightweight asymmetrical D-shaped aluminum carabiner designed for connecting equipment such as descenders, positioning lanyards, and belay devices. It features an automatic triple-action locking gate (TRIACT-LOCK) that must be pushed, twisted, and pulled to open, providing a high level of security against accidental opening. The Keylock system eliminates involuntary snagging, and the fluid interior design facilitates smooth rotation and handling. The H-shaped cross-section delivers an improved strength-to-weight ratio while protecting markings from abrasion. Meets ANSI Z133.1 standards for climbing and life support applications, and is also well-suited for light-duty rigging, tool attachment, line redirection, and similar tasks at height.

Specifications

• Material: Aluminum
• Locking System: TRIACT-LOCK (automatic, triple-action gate)
• Shape: Asymmetrical D (Am'D)
• Minimum Breaking Strength (Major Axis): 27 kN
• Minimum Breaking Strength (Minor Axis): 8 kN
• Minimum Breaking Strength (Gate Open): 7 kN
• Gate Opening: 24 mm
• Length: 4.25 in (115 mm)
• Width: 2.5 in (65 mm)
• Weight: 75 g (2.6 oz)
• Certifications: CE EN 362, ANSI Z133.1, NFPA 2500 Technical Use, UKCA, EAC

Replaces Part Number(s):

B1ABM34TL, A-B1ABM34TL-AI, M34A TL

New replacement part - not remanufactured, not used.
