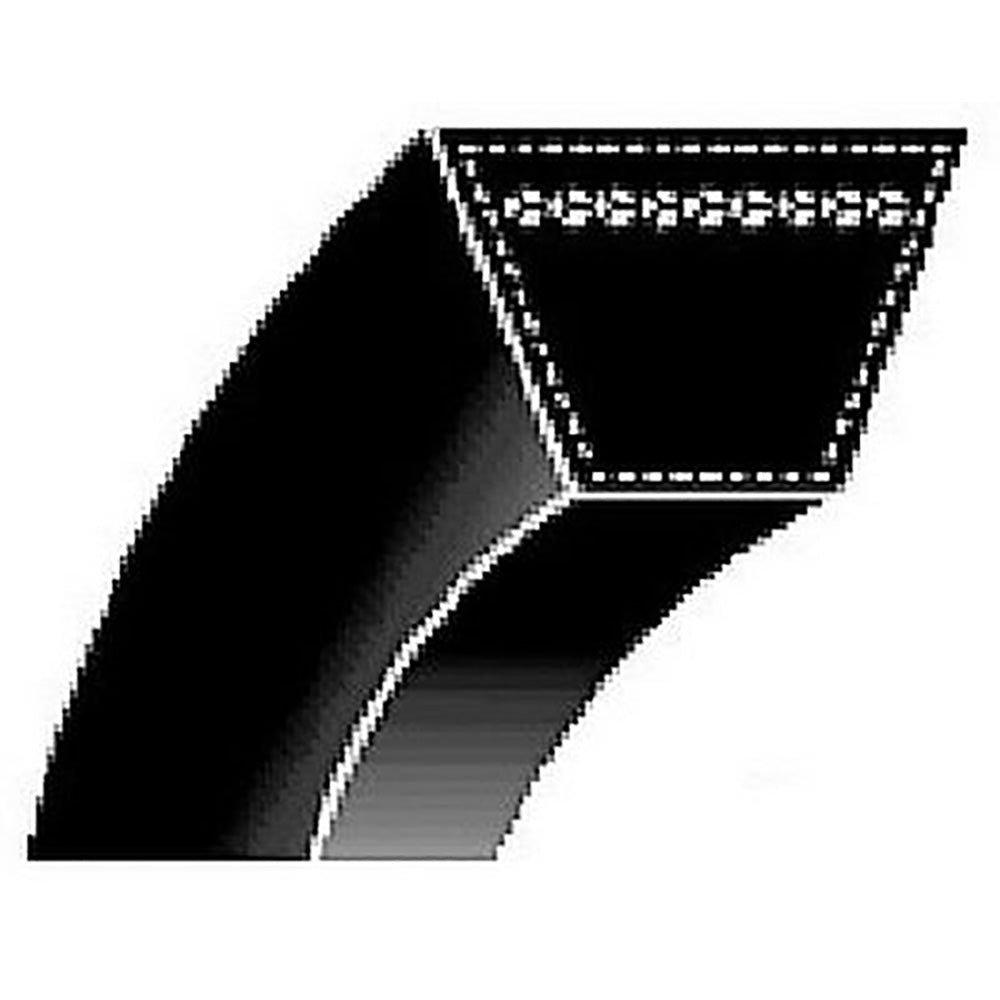

B117 Classical V-Belt (21/32" X 120")
B117 Classical V-Belt (21/32" X 120")
Couldn't load pickup availability
One New Aftermarket Replacement Classical V-Belt (B Section) - B117 (21/32" X 120")
This B117 Classical V-Belt is a standard B-section wrapped V-belt used in a wide range of agricultural and industrial power transmission applications. The B-section profile delivers reliable wedging action in sheave grooves to maximize friction and power transfer. Suitable for use individually in single-belt drives or in matched sets for higher-horsepower applications.
Specifications
- Belt Section: B / 5L (Classical)
- Outside Circumference (O.C. Length): 120 in.
- Inside Length: 117 in.
- Top Width: 21/32 in. (0.656 in. - commonly referred to as 5/8 in.)
- Belt Depth: 13/32 in. (0.406 in.)
- Construction: Wrapped (fabric-covered)
- Material: Rubber compound with polyester tensile cords
- Temperature Range: -35C to +70C
- Minimum Recommended Pulley Diameter: 2-3/4 in. (71 mm)
- Oil and heat resistant; antistatic; static conductivity compliant
Compatible Applications
This belt is a universal B-section classical V-belt compatible with agricultural machinery, lawn and garden equipment, HVAC systems, conveyor systems, centrifugal pumps, air compressors, tillers, walk-behind mowers, and other industrial power transmission drives. Fits any equipment requiring a B117 / 5L1200 belt.
Replaces Part Number(s):
B117, B117DC, 5L1200, 525596, C105801222, a-b117, a-b117-A
New aftermarket replacement part - not remanufactured, not used.
