134149 One (1) New Mower Deck Rebuild Kit Fits AYP Models

Name: 134149 One (1) New Mower Deck Rebuild Kit Fits AYP Models
SKU: AYP42REBUILD
Price: 127.0 USD
Availability: InStock

134149 One (1) New Mower Deck Rebuild Kit Fits AYP Models

£127.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One (1) New Aftermarket Mower Deck Rebuild Kit

Fits AYP 42" Mower Decks

Replaces MPN: 134149

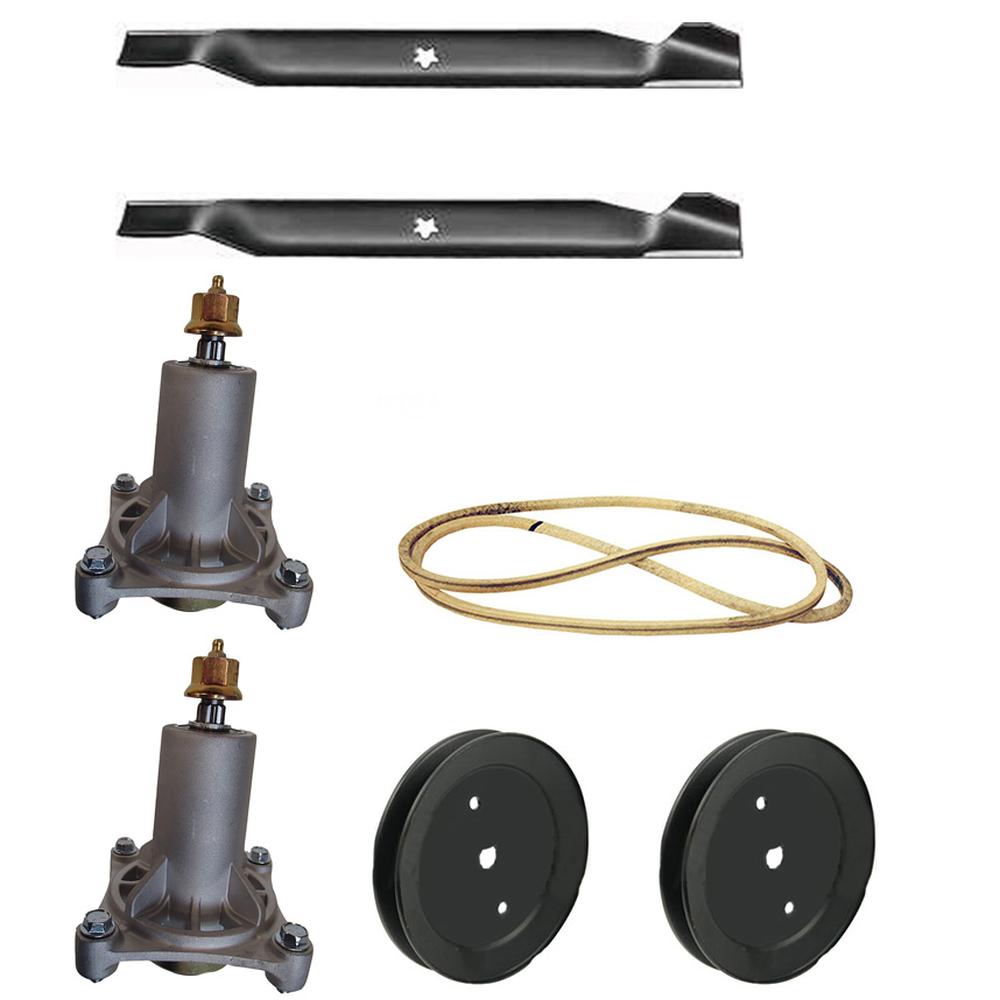

Kit Contains: 2 Spindles, 2 Spindle Pulleys, Deck Belt, and 2 High Lift Blades

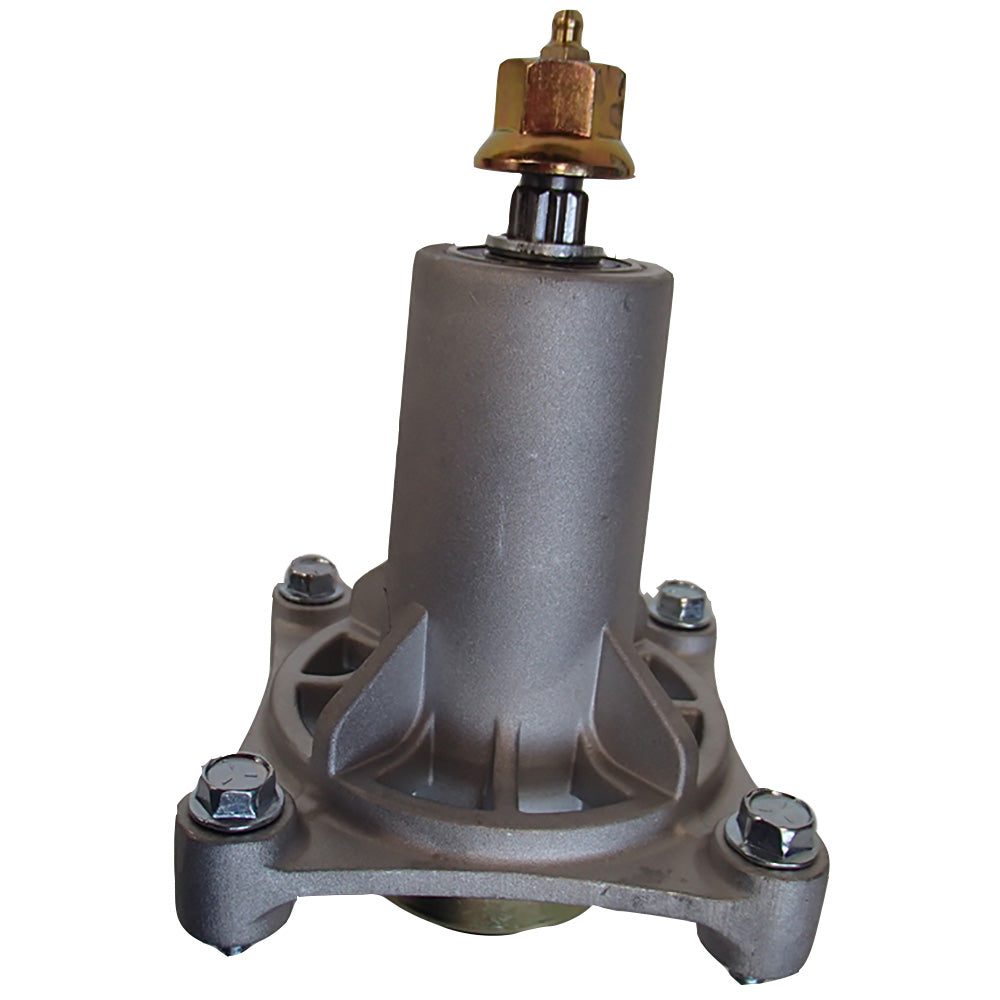

Spindle Assembly:
- 4-Bolt Long Housing
- 5-Point Star Blade Mount
- Threaded Mounting Holes for Easy Installation
- Shaft is Splined for Spline-Type Pulleys
- Includes Pulley Locknut, Blade Bolt/Washer, Spacer, 4 Mounting Bolts
- Spindles Include Blade Bolt & Washer
- Fits models with 46", 48" and 54" Decks

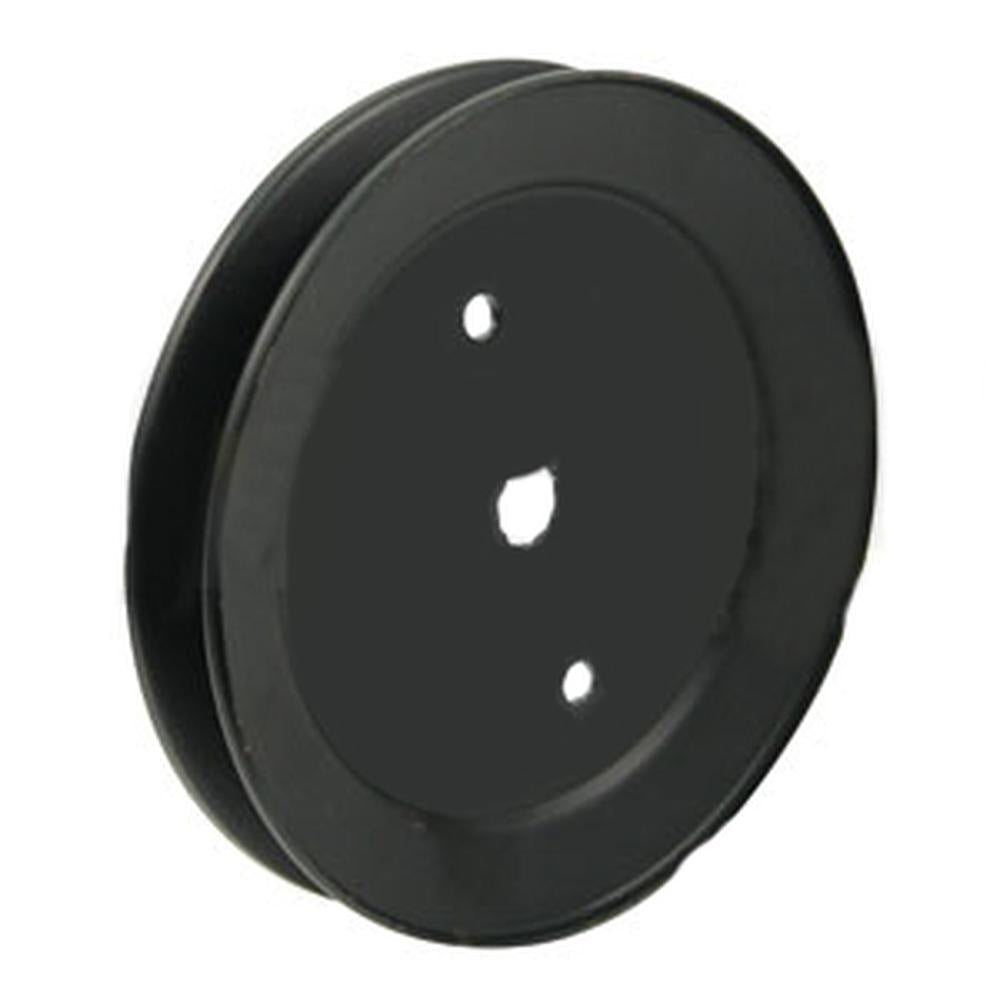

Spindle Pulley:
- Inside Diameter: 5/8" Splined
- Outside Diameter: 6-1/4"
- Width: 7/8"
- For newer 42" and 46" Decks

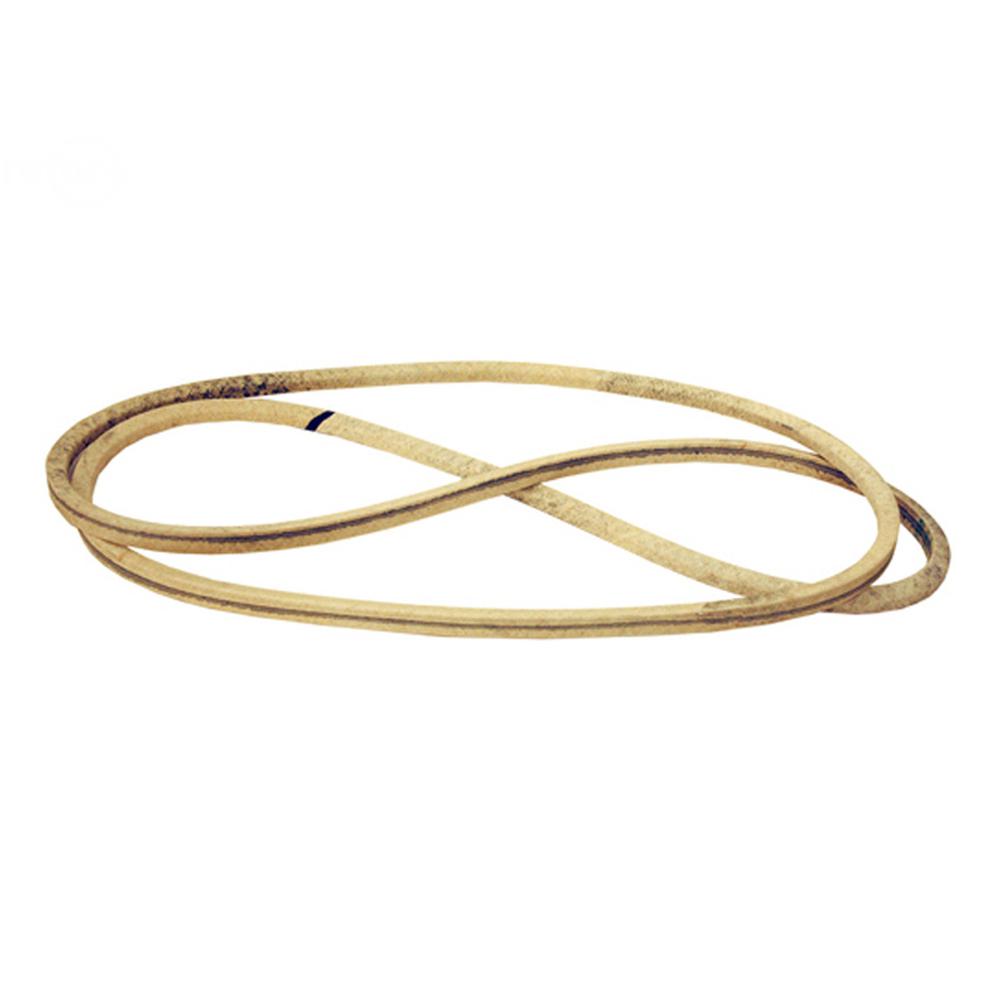

Belt:
- Dimensions: 1/2" x 101"
- Material: Made With Kevlar
- For non-Made With Kevlar, see part

Models This Part Fits:

42" Mower Decks

Additional Information:

Kit Contains: 2 Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Pulley Locknut Blade Bolt/Washer Spacer 4 Mounting Bolts Replaces Part Number(s): 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 567253301 2 Spindle Pulleys Inside Diameter: 5/8" Splined Outside Diameter: 6-1/4" Width: 7/8" Replaces Part Number(s): 195945, 197473, 532195945, 195945, 197473, 532195945, 532197473 (1) Deck Belt 1/2" x 101" Made With Aramid Cord (2) Lawn Mower Blades Type: Notched HI-Lift Blade Length: 21" Center Hole: 5 Point Star Width: 2-1/4" Thickness: 0.149" Replaces Part Number(s): 195945, 197473, 532195945, 532197473

Reference Numbers:

187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 195945, 197473, 532195945, 197253, 532197253, 592855001, 127843, 134149, 138498, 138971, 138971X431, 531307224, 532134149, 532138971, 594892701, 917127843, 917131323, 917138498MS, 917532138498, 21546238, 21546299, 21549012, 532192870, 587819701, 21546446, 532195945, 21546422, 21547025, 21547238, 592855001, 21546095, 532138971, 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301, 195945, 197473, 532195945, 532197473, 532197253, 592855001, 532127843, 532138498, 532138971
