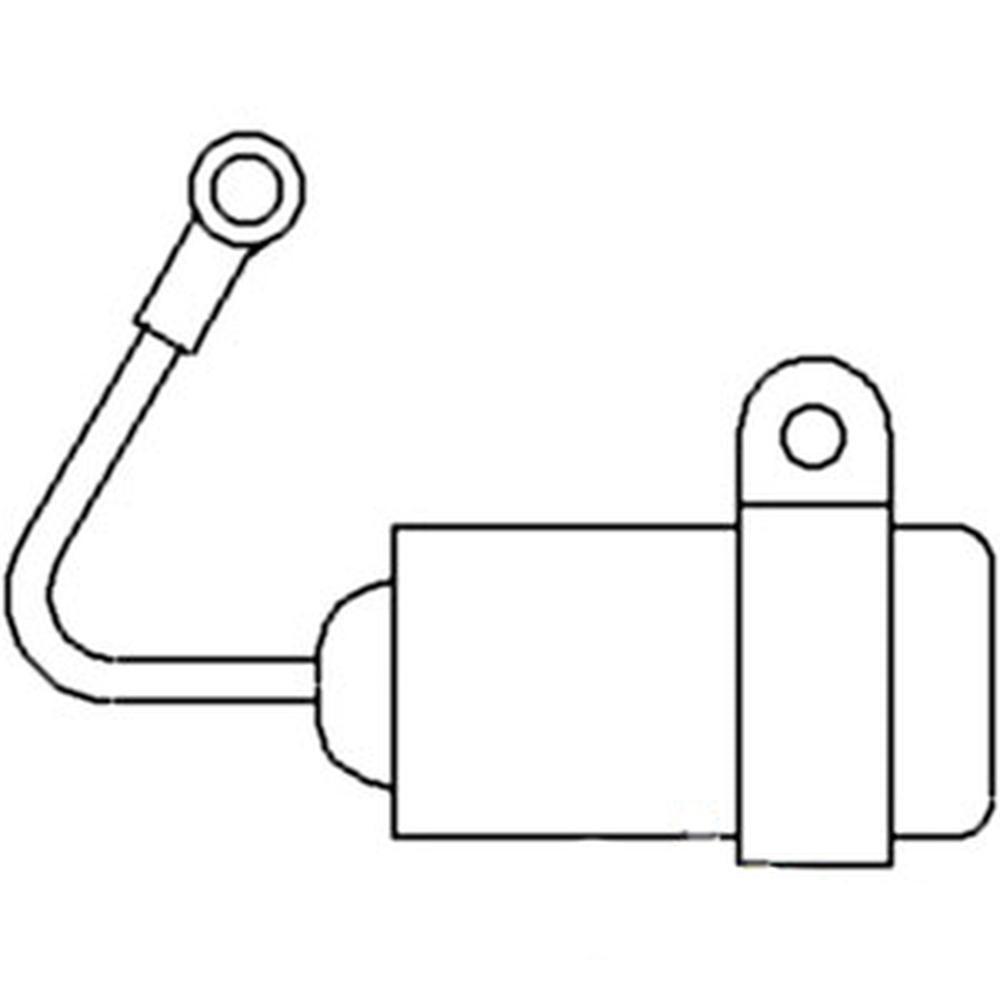

AXMR2433 Condenser For Faribanks-Fits Morse
AXMR2433 Condenser For Faribanks-Fits Morse
Couldn't load pickup availability

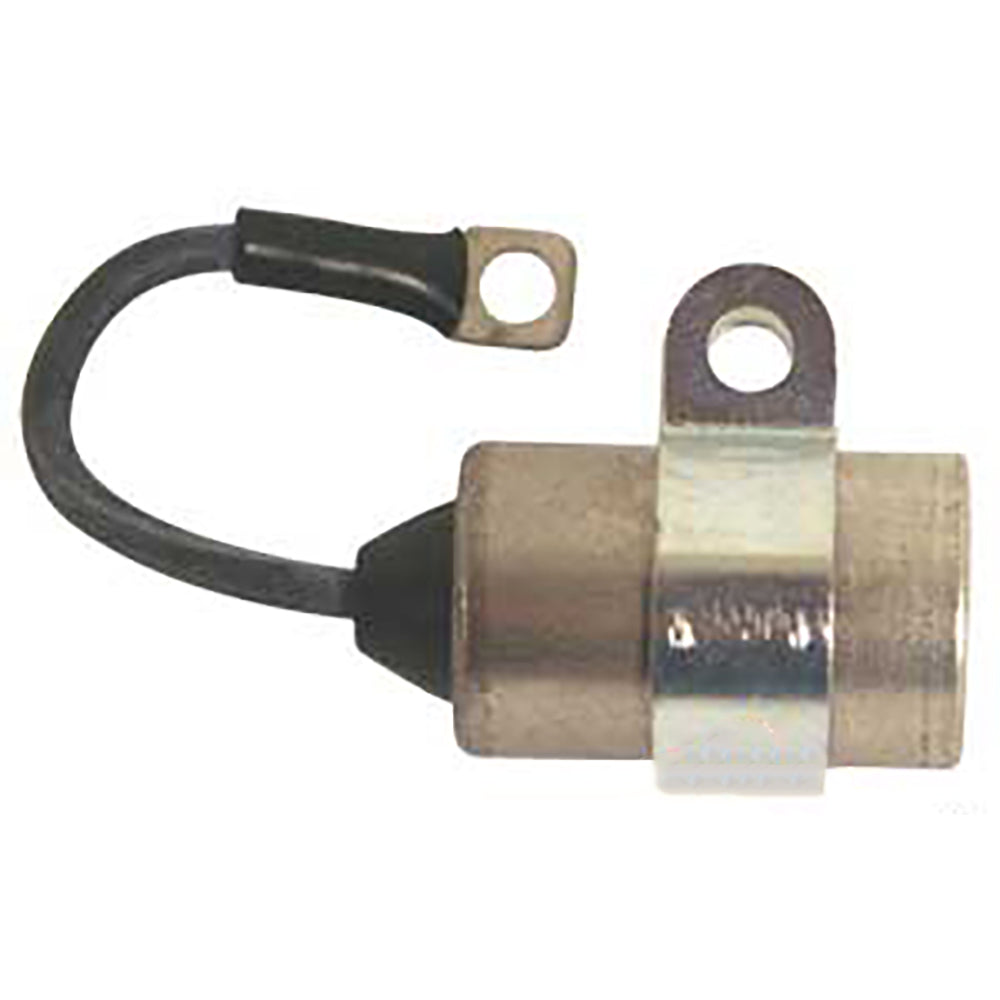

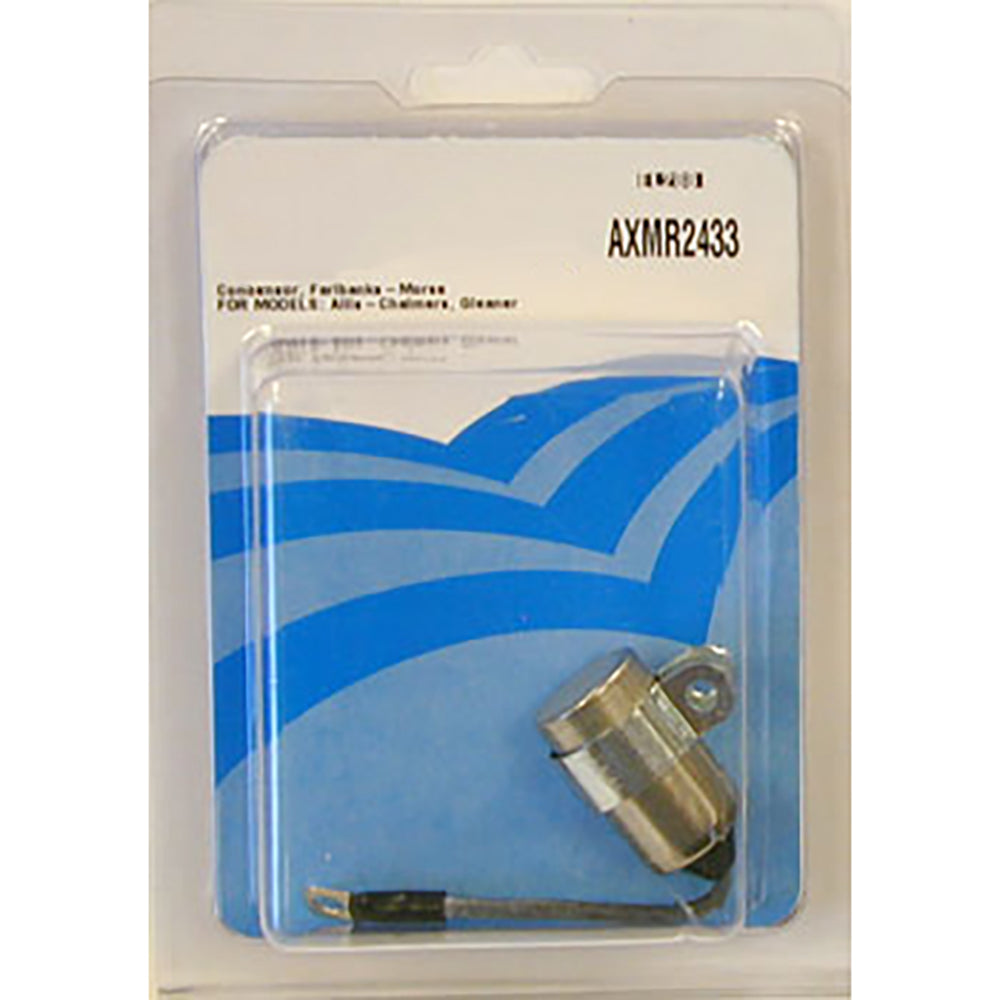

One New Aftermarket Replacement Magneto Condenser for Fairbanks-Fits Morse FMJ and FMX Series Magnetos
This ignition condenser services Fairbanks-Fits Morse (FM) FMJ and FMX series magnetos used on Fits Allis-Chalmers tractors and Gleaner combines. The condenser stores electrical energy to stabilize voltage pulses in the magneto ignition circuit, protecting ignition points from arcing and ensuring reliable spark generation. It is also compatible with Minneapolis-Moline tractors equipped with Fairbanks-Fits Morse magnetos. Replaces OEM part number AXMR2433.
Specifications
- Length: 33 mm
- Diameter: 17.4 mm
- Wire length (end of condenser to center of mounting hole): 76 mm
Services Fairbanks-Fits Morse Magneto Models
J1A, J1B, J2A, J2B, J4A, J4B, JE1A, JF2A, JF2B, JG4A, K2A, X1A, X1B, X1-2B, X4A, X4B, XCE1B, XF2A, XF2B, XR4A, XR4B, XV4C73, XYE1B88F, FM-2A, FM-2B, FM-4A, FM-4B16A, FM-J4, FM-J4A, FM-J4B, FM-J4B3, FM-JIA, FM-JIB, FM-K, FM-X SERIES, FM-X1A7, FM-X1B7E, FM-X4B3, FM-X4B7A, FM-XD187, FM-XE1A7F, FM-XDE1B7P, FMJ2B6D
Compatible Models
Fits Allis-Chalmers Tractors: B, C, CA, D10, D12, D14, D15, D17, D19, D21, G, RC, U, WC, WD, WD45, WF, 170, 175, 180, 185, 190, 190XT, 210, 220
Fits Allis-Chalmers (Fits Allis) combines and other models listed in original fitment data
Gleaner Combines: G
Minneapolis-Moline (MM) Tractors: Z (with Fairbanks-Fits Morse magneto)
Fits Allis-Chalmers / Gleaner: 7000, 7030, 7040, 7050, 7060, 7080
Replaces Part Number(s):
AXMR2433, SXY2433, 72147
Aftermarket Interchange Numbers
A-AXMR2433, AXMR2433-WF, AXMR2433-WF-A, SMA-AXMR2433, ATK20FM (ignition kit containing this condenser)
New aftermarket replacement part - not remanufactured, not used.
