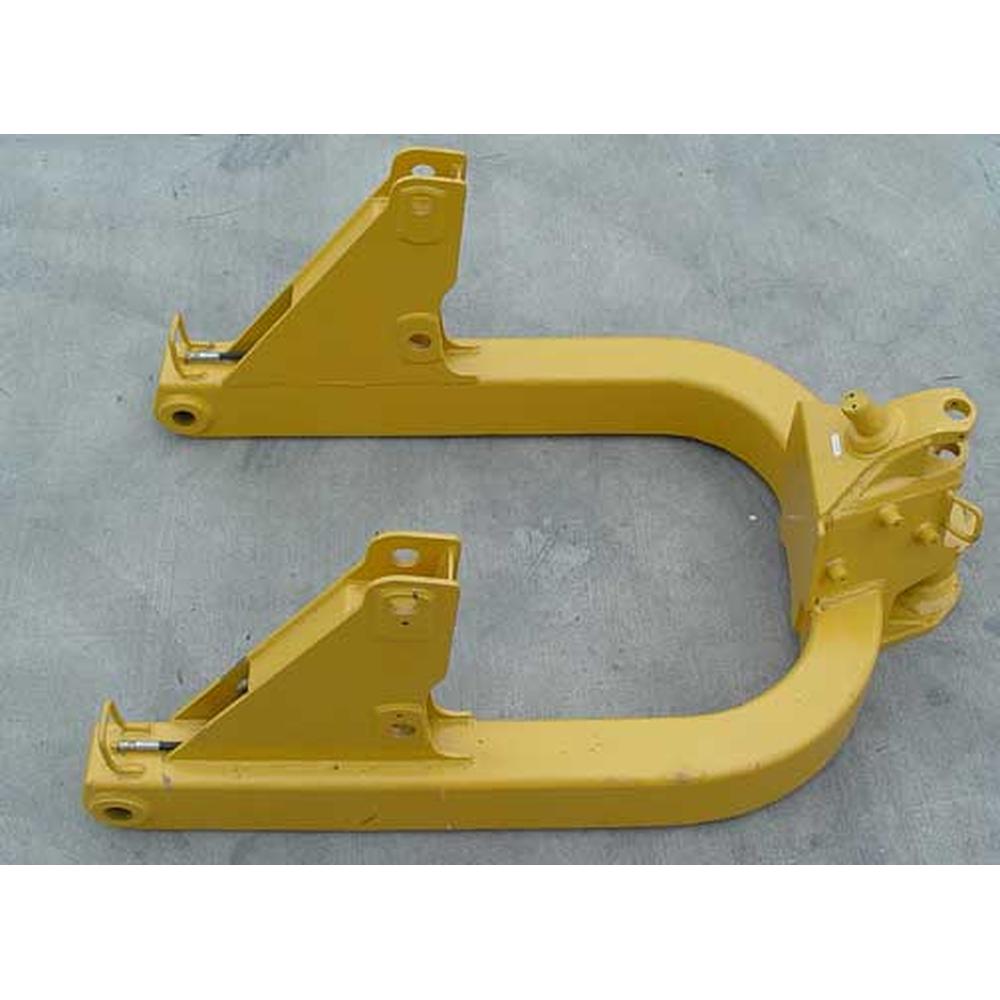

AT184571 C-Frame Fits John Deere 450G LGP & WIDE TRACK, 550G, 650G

One New Aftermarket Replacement C-Frame for John Deere G-Series Crawler Dozers

This aftermarket replacement C-Frame connects the dozer blade assembly to the undercarriage on John Deere 450G, 550G, and 650G series crawler dozers. The C-frame is a core structural component of the dozer blade push-arm system, transmitting cutting and pushing forces from the blade back to the machine frame. This replacement includes a swivel ball and comes with bushings pre-installed at each pin end where the C-frame connects to the machine, making installation straightforward. Inside-to-inside width is 29 inches; outside-to-outside width is 41 inches. Weight: approximately 750 lbs.

Specifications

• Inside-to-inside width: 29 inches
• Outside-to-outside width: 41 inches
• Weight: approximately 750 lbs.
• Includes swivel ball
• Bushings pre-installed at each pin-end connection point

Compatible Models

John Deere G-Series Crawler Dozers: 450G LGP, 450G Wide Track, 550G, 650G

Note: Fits LGP (Low Ground Pressure) and Wide Track configurations of the 450G. Verify your machine's blade mounting style before ordering. If your machine uses pin-style blade mounting rather than swivel ball-style, conversion kit AT173571 (available from a John Deere dealer) is required.

Replaces Part Number(s):

AT184571

New aftermarket replacement part - not remanufactured, not used.
