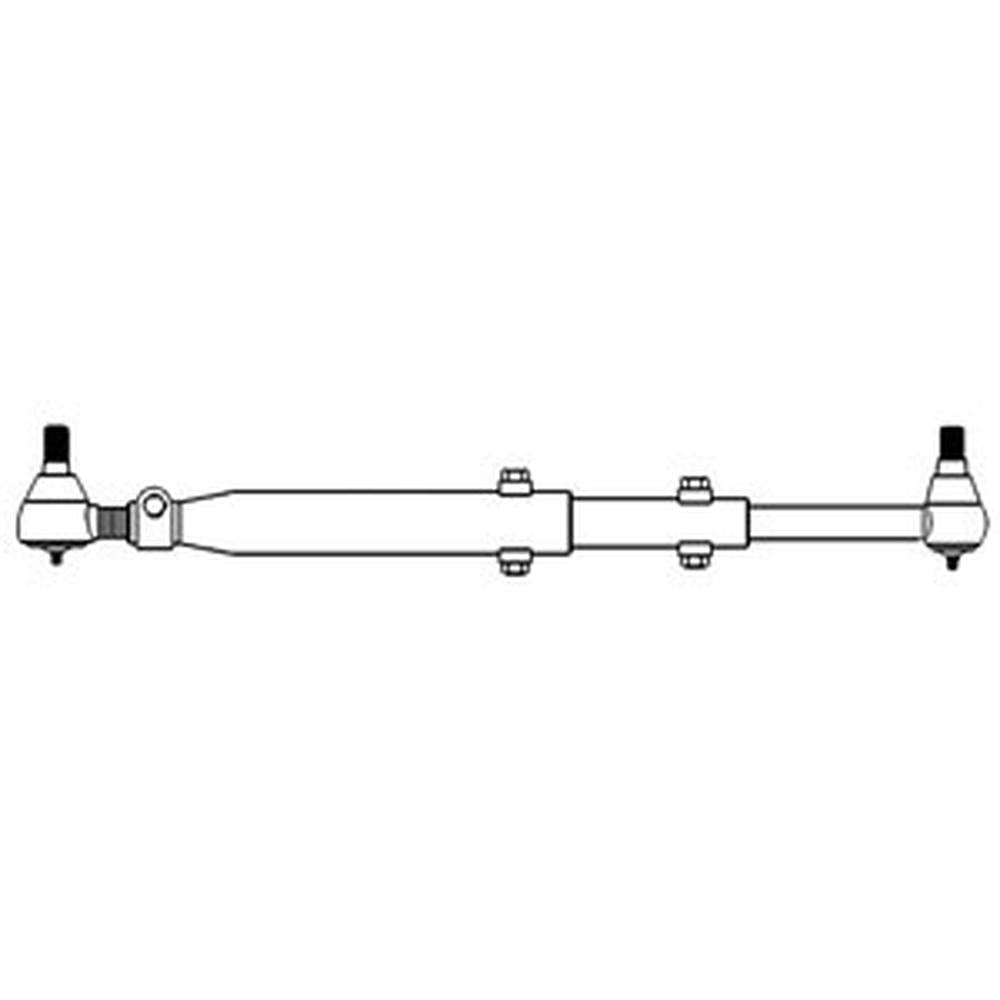

AR44334 Tie Rod Assembly Fits John Deere 2510 3010 3020 4320 4010 4000 4020 2520
AR44334 Tie Rod Assembly Fits John Deere 2510 3010 3020 4320 4010 4000 4020 2520
Regular price
£137.00 GBP
Regular price
Sale price
£137.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Complete Tie Rod Assembly with Ball Joints that Fits John Deere Tractor Models: 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4230, (All with 88" Wide Tread), 4320
Assembly includes the following:
Dimensions:
Actual Photo.
Replaces Part Number: AR44334
View full details
Assembly includes the following:
- (1) Tie Rod
- (1) Tie Rod Tube
- (1) Outer Tie Rod
- (1) Outer Tie Rod Tube
- (4) Tie Rod Wedge
- (1) Clamp
- (1) Cap Screw 7/16-14 x 2-1/4
- (1) Washer 7/16" Lock
- (1) Nut 7/16-14 Hex
- (1) Bolt 3/8 x 3 NC
- (1) Bolt 3/8 x 2-1/2 NC
- (2) Washer 3/8" Lock
- (2) Nut 3/8-16 Hex
Dimensions:
- Minimum adjusted length is 21"
- Max adjusted length is 35 1/2"
- Beginning taper is 11/16" diameter
- Ball Joint shaft diameter is 5/8"

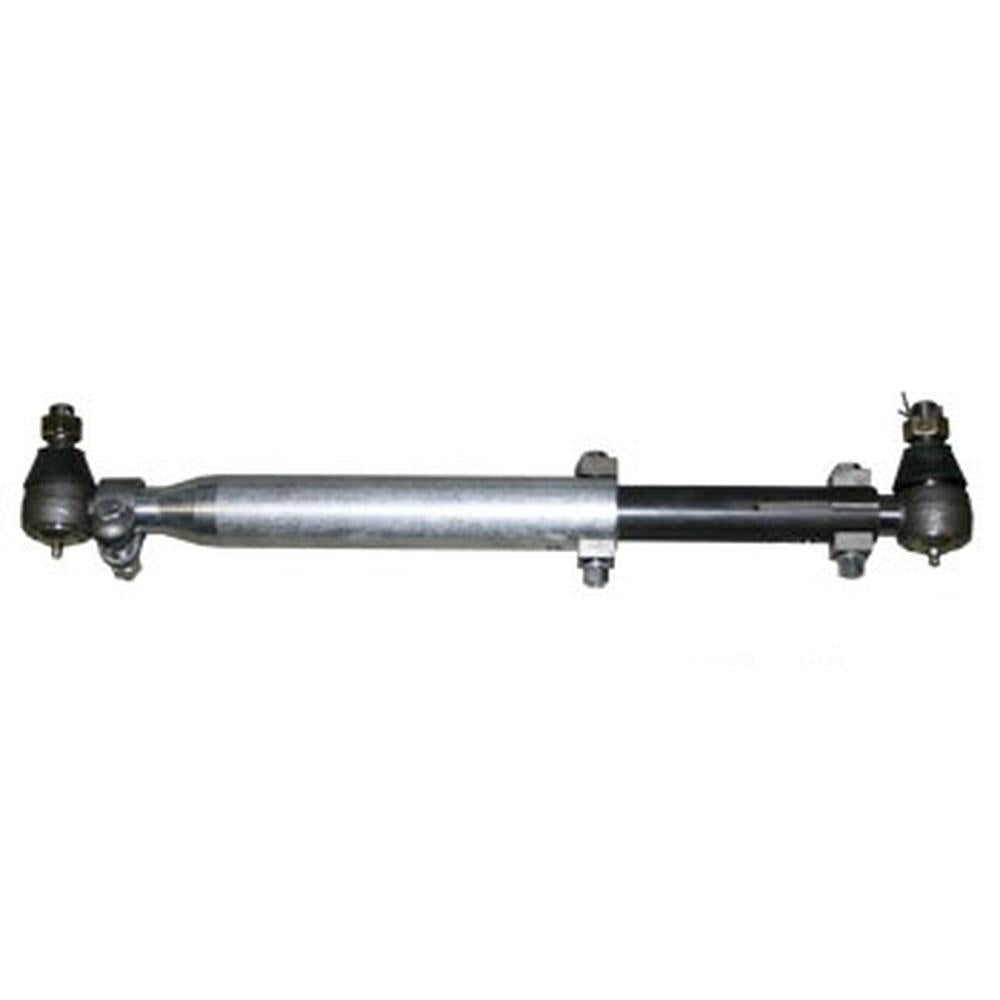

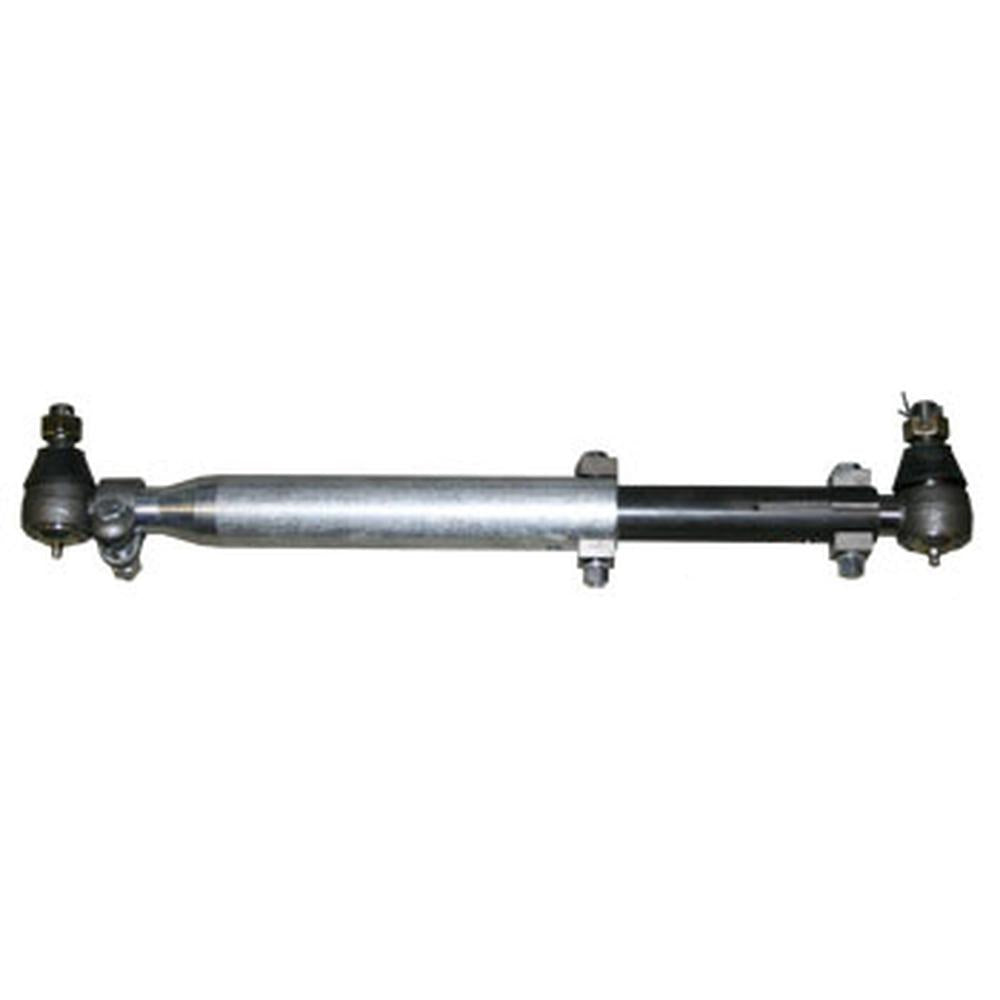

Actual Photo.
Replaces Part Number: AR44334
