AMTINE Reel Tine
AMTINE Reel Tine
Couldn't load pickup availability

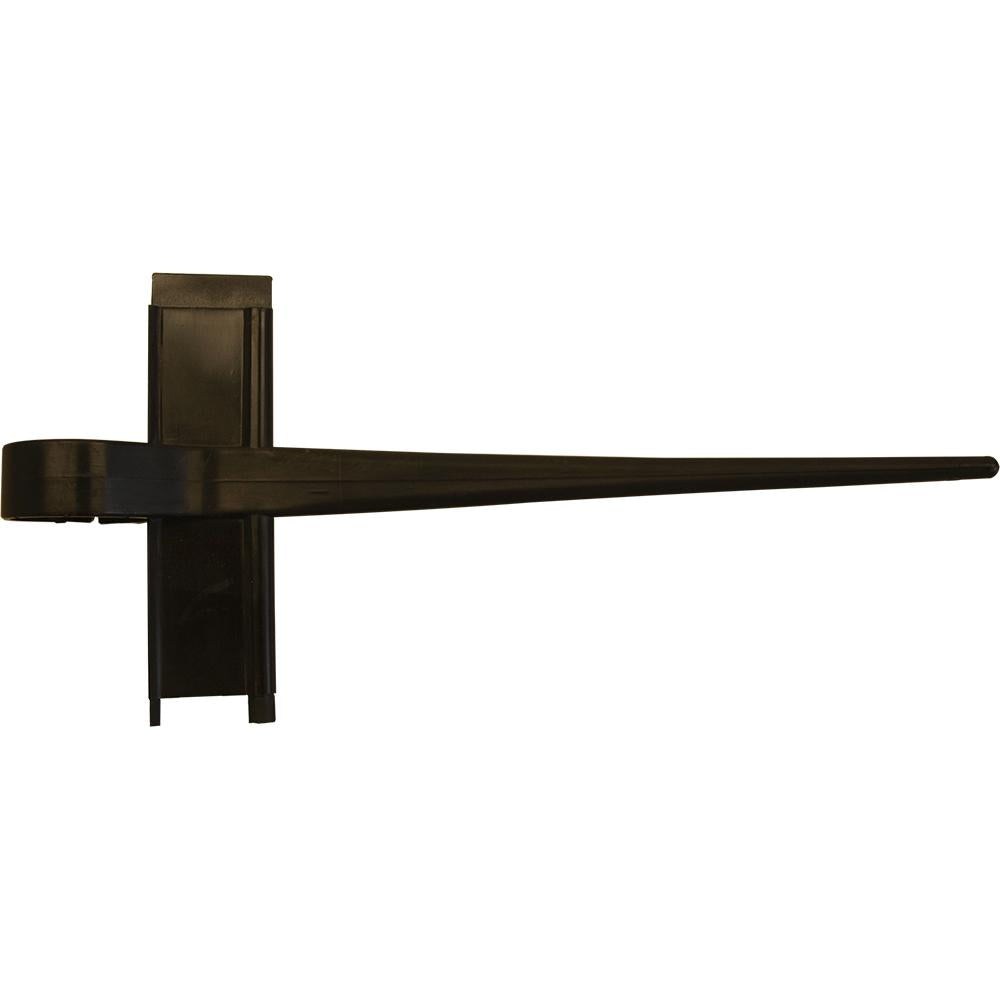

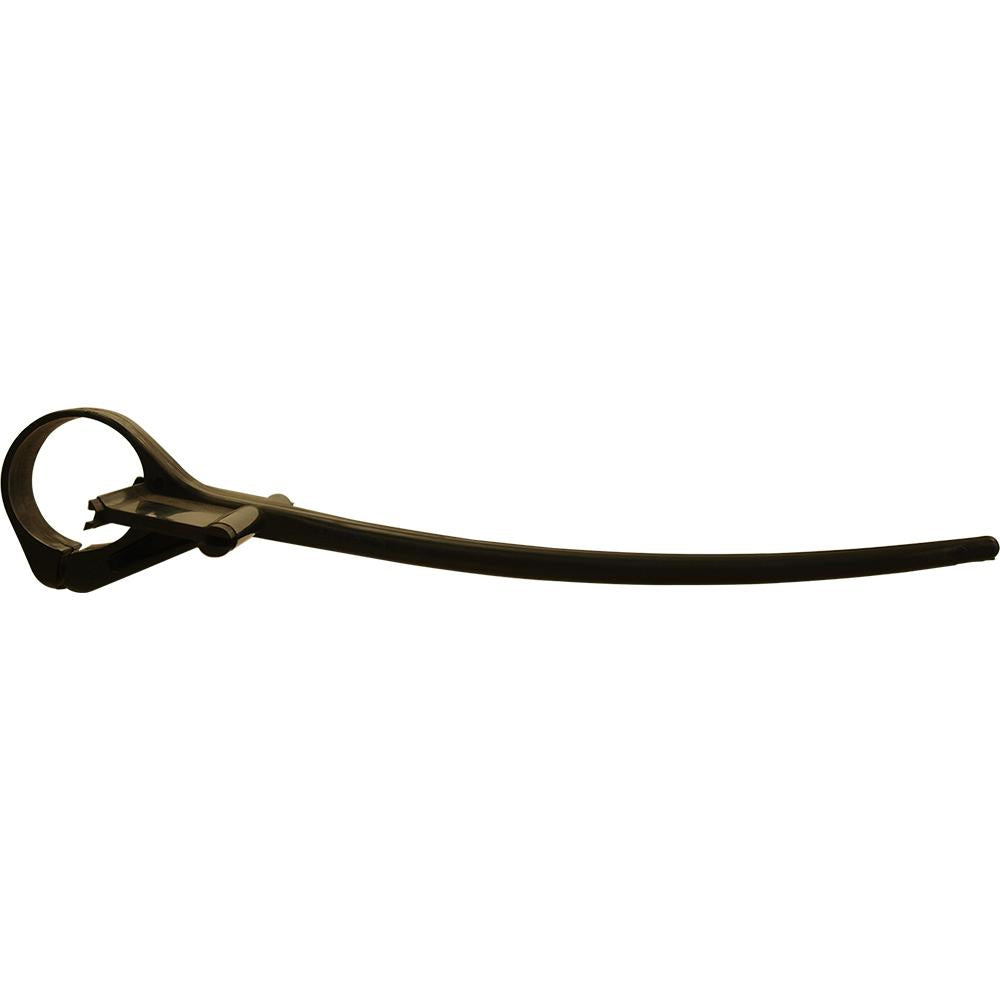

One New Aftermarket Replacement Reel Tine for Universal Grain Platform Headers
This aftermarket replacement reel tine mounts on pipe-style combine header reels to guide crop stems into the platform, sweep grain heads across the sickle bar, and feed material into the auger. Designed as a center tine replacement -- some modification may be required for right-hand and left-hand side positions. Replaces John Deere OEM part number AH153175.
Specifications
- Material: Nylon (3-piece double wing unit)
- Tine spacing: 4.50 inches
- Hardware included
- Replaces center tine position (modifications required for RH/LH positions)
Compatible Models
AGCO / Gleaner Platforms: 300 Series, 400 Series, 500 Series, 700 Series, 800 Series
Case IH Platforms: 1010, 1020 (to 2001)
Claas-Lexion Platform: F (HCC Level II Reel)
Honey Bee Platforms: Most Early Models
John Deere Platforms (ASN 625300): 913, 915, 918, 920, 922, 924, 925, 930
Massey Ferguson Platforms: 9700, 9750
New Holland Platforms: 92C, 971, 973, 994, 994D
Replaces Part Number(s):
AH153175, AH136689, 1989438C1, 782226, 71367261, 9842263
New aftermarket replacement part - not remanufactured, not used.
