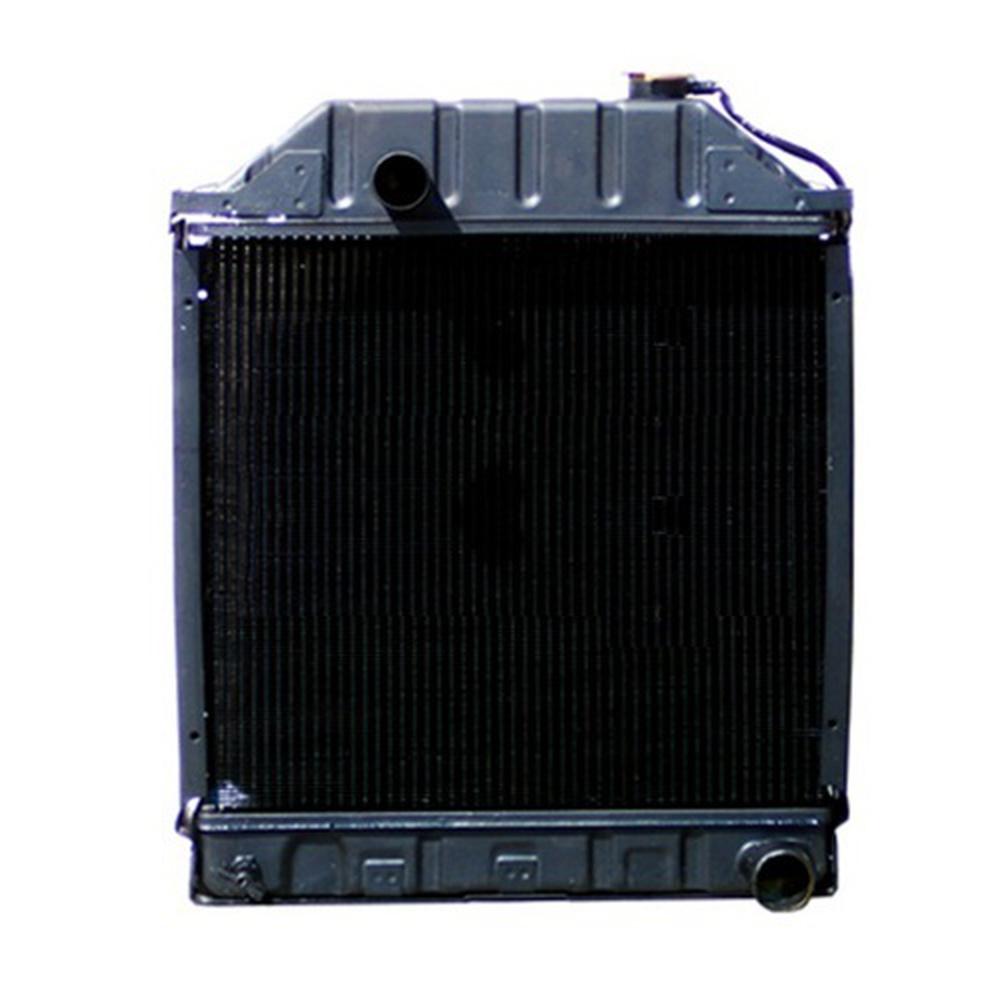

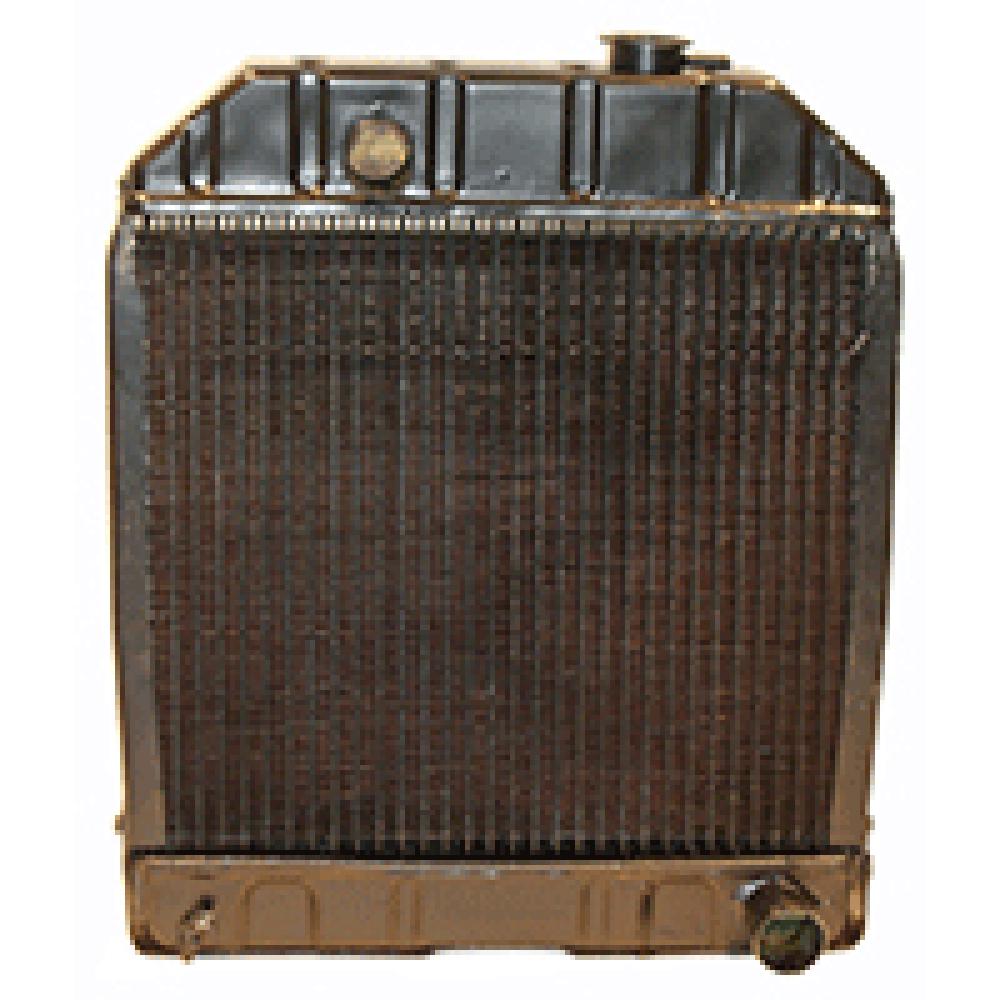

AMD8NN8005PA Radiator

AMD8NN8005PA Radiator

£197.00 GBP
£197.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Replacement Radiator

Fits Ford/New HollandTractors - 250C, 260C, 532 (with Torque Conversion 1975-07/81), 2000 (with 3 Cylinder Engine with Oil Cooler), 2100 (1965 and Later), 2110 (1965 and Later), 2120 (1965 and Later), 2300 (1965 and Later), 2310 (1965 and Later), 3000 (1965 and Later), 3055 (1965 and Later), 3100 (1965 and Later), 3110 (1965 and Later), 3120 (1965 and Later), 3150 (1965 and Later), 3190 (1965 and Later), 3300 (1965 and Later), 3310 (1965 and Later), 3330 (1965 and Later), 3400 (1965 and Later), 4000 (with 3 Cylinder Engine with Oil Cooler), 4100 (1965 and Later) Industrial/Construction - 340A (08/1981 and Later), 340B (08/1981 and Later), 420 (with Torque Conversion 1975-07/81), 445 (Prior to 09/1978), 540 (Prior to 07/1981), 540A (08/1981 and Later), 540B (08/1981 and Later), 3500 (1965 and Later), 3550 (1965 and Later), 4400 (1965 and Later)

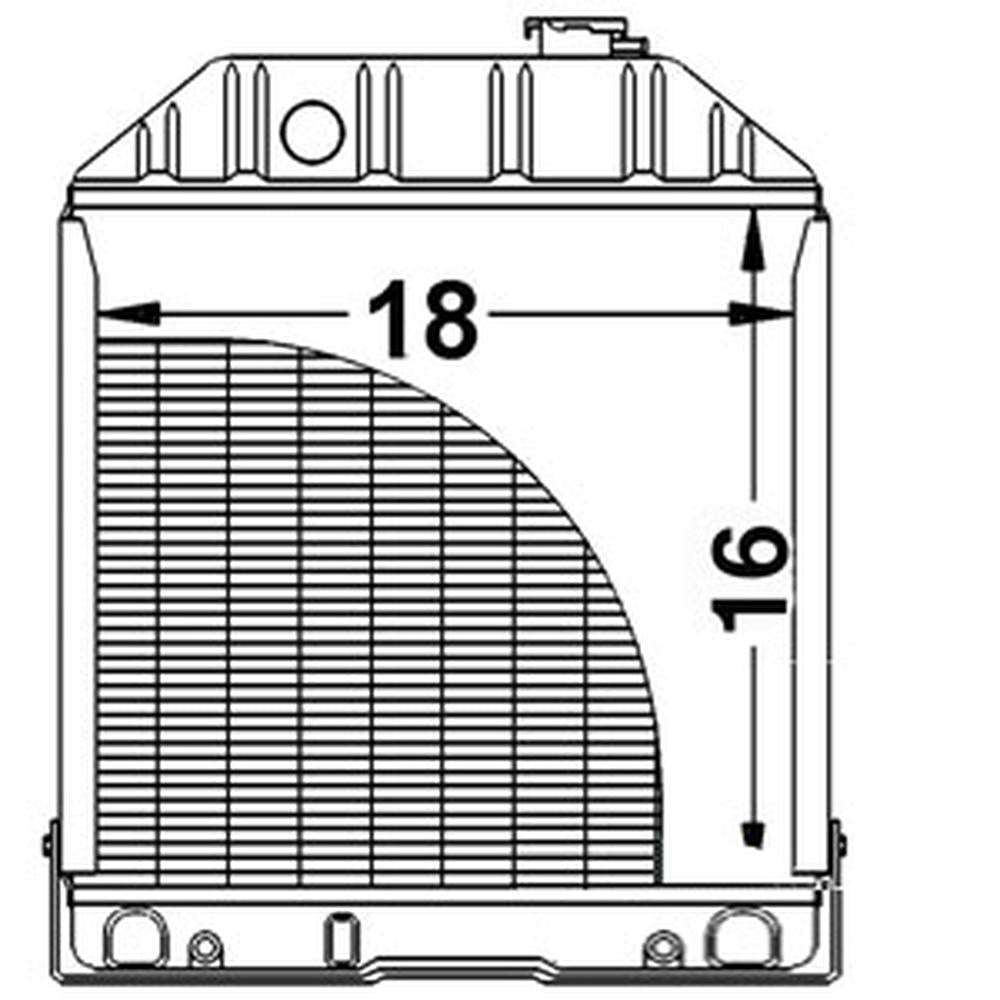

Tech Info:
-Oil Cooler Ports are on the Grille Side
-Overall Height* - 22 1/2"
-Depth - 2.00"
-Core Width - 17 1/4"
-Outlet - 1 3/4"3 Rows, 8 Fins per Inch
-*Note: Overall Height Measurement Does Not Include Filler Neck
-Inlet - 1 1/2"
-Overall Width - 19.00"
-Core Height - 16.00"

Replaces Part Number(s): C5NN8005T, 82847505, E1NN8005AB15M, C7NN8005J

Models This Part Fits:

2600V, 260C, 4200, 3550, 3910R, 4100, 335, 7700, 231, 3900, 3100, 3300, 3310, 4600, 4410, 2600R, 340B, 230A, 2100, 3600V, 3055, 3190, 4330, 233, 334, 445, 4630, 2300, 4340, 3600, 3400, 3930, 3330, 6600, 540A, 2600N, 3000, 2000, 333, 4110NO, 4600NO, 4000, 3600R, 3150, 3110, 420, 4600SU, 3500, 234, 4110, 4110V, 3910V, 4130, 4190, 3430, 3610, 2610, 3910N, 532, 3120, 3910H, 3610NO, 540, 2150, 3600N, 4400, 3230, 4600O, 2610V, 5100, 3610V, 5600, 2600, 545, 540B, 2810, 2110, 340A, 2910, 4110O, 4110N, 531, 5000, 4500, 4610NO, 5200, 2310, 2120, 3910, 5700, 250C

Additional Information:

Copper / Brass Radiator with Oil Cooler on Grill Side. Overall Height: 22-1/2" Overall Width: 19" Core Height: 16" Core Width: 17-1/4" Depth: 2" Rows: 3 Fins Per Inch: 8 Fill Neck Height: 3/4" Inlet: 1-1/2" Outlet: 1-3/4"

Reference Numbers:

D8NN8005PA, E0NN8005MA15M, E0NN8005MB15M, E0NN8005MD15M, E0NN8005LA15M, E0NN8005KA15M
