73445G01 Drive Motor 36 Volt Series Fits EZGO TXT Marathon Golf Cart

73445G01 Drive Motor 36 Volt Series Fits EZGO TXT Marathon Golf Cart

£919.00 GBP
£919.00 GBP
Sale Sold out
Shipping calculated at checkout.

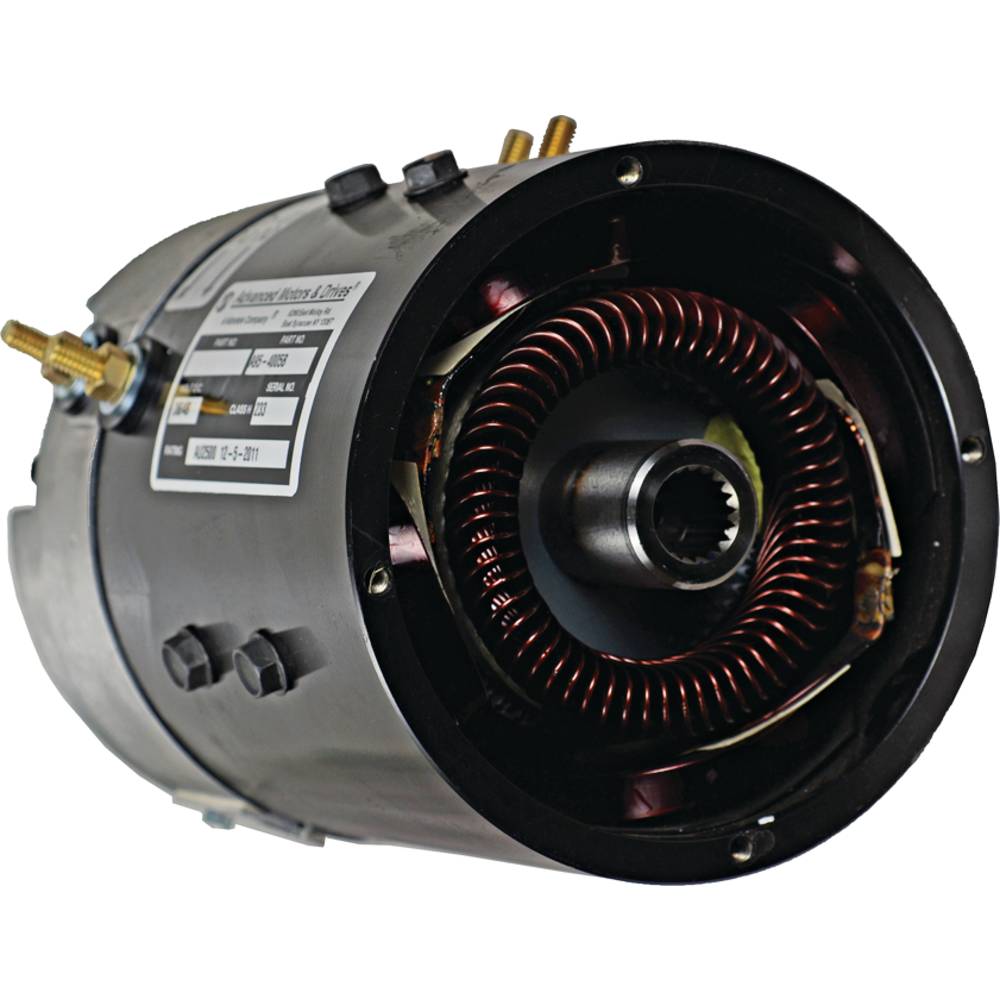

This is a new aftermarket 36 volt series wound DC drive motor for the electric golf cart and utility vehicle, the traction motor that bolts to the rear axle input with a 19 spline coupler.

Specifications

  • Type: series wound DC traction motor
  • Voltage: 36 V (runs on 48 V series systems at higher speed)
  • Output: 2.5 hp at 2800 rpm
  • Shaft: 19 tooth internal spline
  • Terminals: four, 5/16-18 (S1, S2, A1, A2)
  • Frame: 6.65 in OD, 8.98 in long
  • Sold as: each
  • Fitment: Fits EZGO 36 V series drive carts (TXT, Medalist, Marathon, Workhorse, Shuttle, ST) and Cushman 280, MPT 800, Minute Miser, Stock Chaser

Cross reference

  • 73445G01
  • 73124G02
  • 22858G1
  • A02-4012
  • A95-4005A
  • A95-4005B
  • A95-4005BMX

Series drive carts only

This motor fits the 36 volt series drive carts with S1, S2, A1 and A2 terminals and no speed sensor. The DCS and PDS carts (tow run switch on the cart) use separately excited motors that do not interchange. It can run on 48 volt series systems at a higher speed. The 19 spline coupler must match.

Aftermarket replacement part. Not manufactured by, sponsored by or affiliated with any equipment maker named here. All makes, models and numbers are listed for reference only.

Additional Information:

VOLT: 36/48, POWER: 1.840 kw, HP: 2.467, RPM: 2800, CONDITION: New, ROTATION DIRECTION: Reversible, OD: 169 mm, OD: 6.654", SHAFT OD: 1.354", SHAFT OD: 34.400mm, LENGTH: 228 mm, LENGTH: 8.976", TERMINAL 2 SIZE: 5/16-18, TERMINAL 3 SIZE: 5/16-18, TERMINAL 4 SIZE: 5/16-18, TERMINAL 5 SIZE: 5/16-18, SHAFT: 19 Internal Spline, CURRENT TYPE: DC, NUMBER OF FIELDS: 4, Advanced Motors & Drives: A02-4012, A95-4005A, A95-4005B, A95-4005BMX; Arrowhead: A95-4005BMX

Reference Numbers:

AMD-A95-4005BMX
