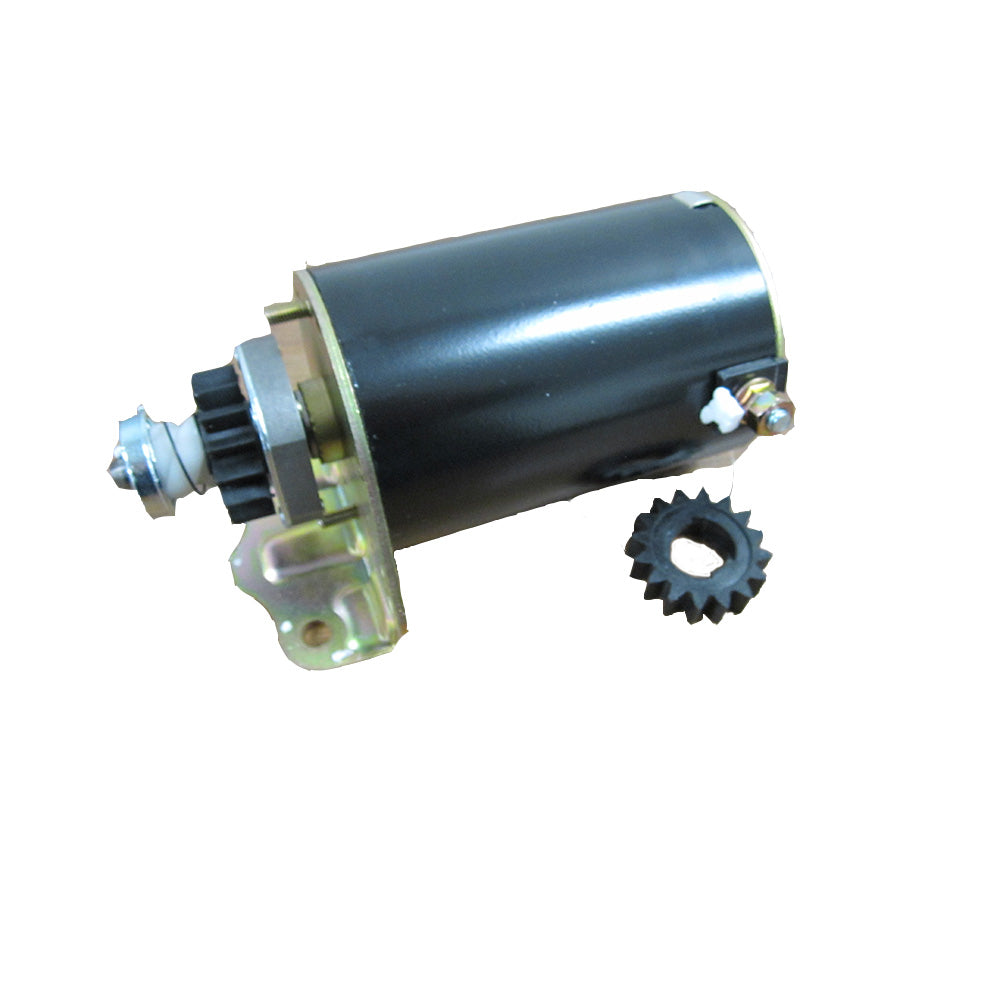

AM122237 Starter with Drive Gear Fits John Deere

AM122237 Starter with Drive Gear Fits John Deere

£53.00 GBP
£53.00 GBP
Sale Sold out
Shipping calculated at checkout.
Aftermarket Starter with Drive Gear

Tech Info:
 -(1) Starter
 -Critical Note for Use with Plastic Flywheels Only
 -Volt 12
 -Rotation Direction Counter Clockwise
 -Electric Starter Type Permanent Magnet Direct Drive (Pmdd)
 -Number of Teeth 16
 -Gear Od 1.598"
 -Gear Od 40.600mm
 -Mount Hole ID 1 8mm
 -Mount Hole 1 Type Unthreaded
 -Mount Hole 2 Type Unthreaded
 -Mount Hole ID 3 8mm
 -Mount Hole 3 Type Unthreaded
 -4.25"/108mm Long Field Fits Case
 -Replaces: LG497595, LG691262, MIA12048, MIU13772, SE501880, 5406K, 691252, 691262, 693054, 795121
 -
 -(1) Starter Drive Gear
 -OD 1 5/8"
 -Teeth 16
 -CW
 -Replaces: M83184, 222-22006, 222-22011, 222-22012, 280104, 4114, 4152, 4194, 693058, 693059, 695708


Fits John Deere:
 Riding Mower Models: 68: 8HP (1975-1983)GX85: 13HPR70: 8HP (1984-1986)R72: 8HP (1984-1986)R92: 11HP (1985-1986)S80: 8HP (1984)S82: 8HP (1984-1986)S92: 11HP (1984-1986)SX85: 13HP
 Replaces Part Number(s): Starter Drive Gear Fits John DeereLG280104, LG280104S, LG693059, LG695708, M150236, M83184StarterFits John DeereAM106883, AM122237, AM122337, AM37352, AM39137, AM39285, BS497595, LG490420, LG497401, LG497595, LG691262, MIA12048, MIU13772, SE501880

 Lawn/Garden Tractor Models: 100: (1975-1978)108: (1979-1985)Europa 1338SGS: 13HPEuropa 1438GS: 14.5HPEuropa 1538HS: 15HPEuropa 1542GS: 15.5HPEuropa 1546GS: 15HPEuropa 1646HS: 16HPL111: 20HPL118: 22HPSabre 1338G: 13HPSabre 1438GS: 14.5HPSabre 1438HS: 14.5HPSabre 1538GS: 15HPSabre 1538HS: 15HPSabre 1542GS: 15.5HPSabre 1542HS: 15.5HPSabre 1546G: 15HPSabre 1646HS: 16HP
 Replaces Part Number(s): Starter Drive Gear Fits John DeereLG280104, LG280104S, LG693059, LG695708, M150236, M83184StarterFits John DeereAM106883, AM122237, AM122337, AM37352, AM39137, AM39285, BS497595, LG490420, LG497401, LG497595, LG691262, MIA12048, MIU13772, SE501880

Models This Part Fits:

100: (1975-1978)108: (1979-1985)Europa 1338SGS: 13HPEuropa 1438GS: 14.5HPEuropa 1538HS: 15HPEuropa 1542GS: 15.5HPEuropa 1546GS: 15HPEuropa 1646HS: 16HPL111: 20HPL118: 22HPSabre 1338G: 13HPSabre 1438GS: 14.5HPSabre 1438HS: 14.5HPSabre 1538GS: 15HPSabre 1538HS: 15HPSabre 1542GS: 15.5HPSabre 1542HS: 15.5HPSabre 1546G: 15HPSabre 1646HS: 16HP, 68: 8HP (1975-1983)GX85: 13HPR70: 8HP (1984-1986)R72: 8HP (1984-1986)R92: 11HP (1985-1986)S80: 8HP (1984)S82: 8HP (1984-1986)S92: 11HP (1984-1986)SX85: 13HP

Additional Information:

(1) Starter Critical Note for Use with Plastic Flywheels Only Volt 12 Rotation Direction Counter Clockwise Electric Starter Type Permanent Magnet Direct Drive (Pmdd) Number of Teeth 16 Gear Od 1.598" Gear Od 40.600mm Mount Hole ID 1 8mm Mount Hole 1 Type Unthreaded Mount Hole 2 Type Unthreaded Mount Hole ID 3 8mm Mount Hole 3 Type Unthreaded 4.25"/108mm Long Field Case Replaces: LG497595, LG691262, MIA12048, MIU13772, SE501880, 5406K, 691252, 691262, 693054, 795121 (1) Starter Drive Gear Outer Diameter: 1 5/8" Teeth: 16 ClockWise For aluminum and plastic ring gears Replaces: M83184, 222-22006, 222-22011, 222-22012, 280104, 4114, 4152, 4194, 693058, 693059, 695708

Reference Numbers:

Starter Drive Gear John DeereLG280104, LG280104S, LG693059, LG695708, M150236, M83184StarterJohn DeereAM106883, AM122237, AM122337, AM37352, AM39137, AM39285, BS497595, LG490420, LG497401, LG497595, LG691262, MIA12048, MIU13772, SE501880
