AL55954 New Steering Motor Fits John Deere 1640 1840 2040 2040S 2140 3040 3140
AL55954 New Steering Motor Fits John Deere 1640 1840 2040 2040S 2140 3040 3140
Couldn't load pickup availability

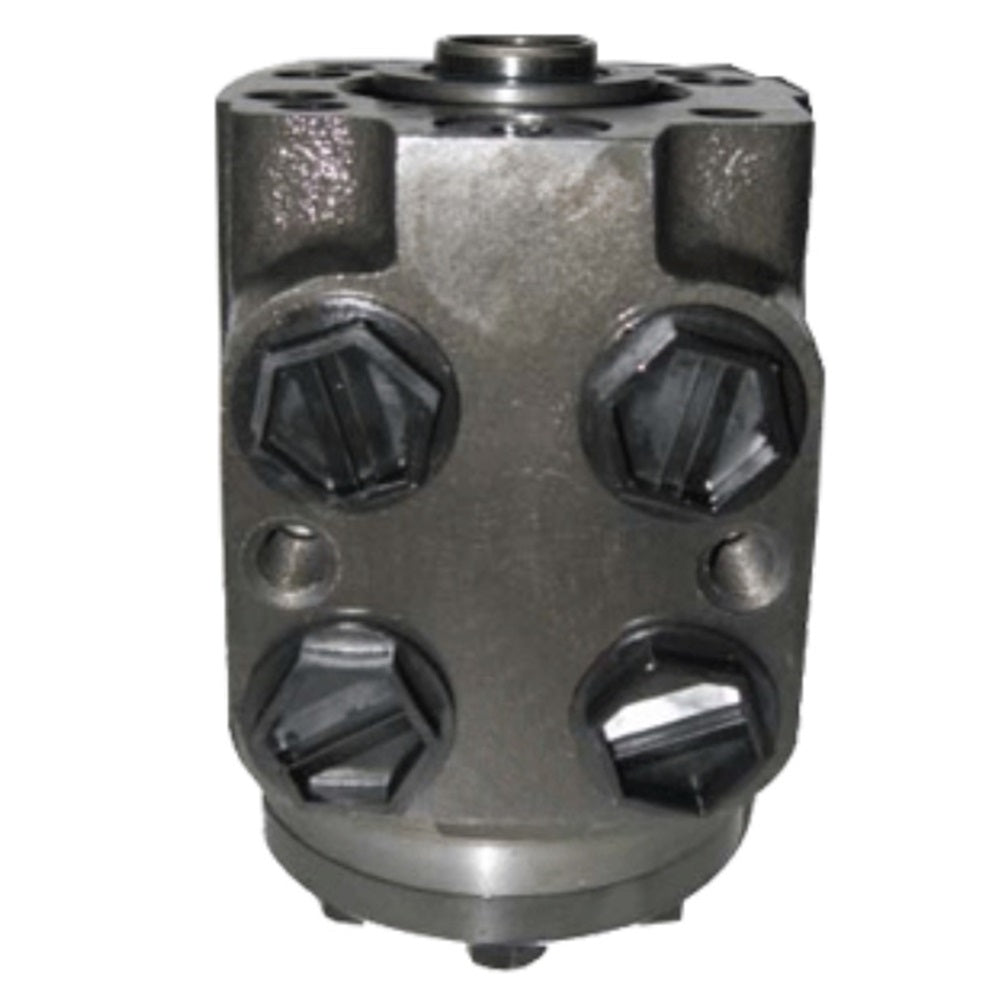

One New Aftermarket Replacement Hydraulic Steering Valve (Steering Motor) Fits John Deere Tractors
This aftermarket replacement hydraulic orbital steering valve (also referred to as a steering motor or steering control unit) is a direct replacement for the Sauer-Danfoss unit used in the hydrostatic steering system on Fits John Deere 40-Series tractors. It features SAE 3/4"-16 UNF port threads and a bolt-on valve block design. IMPORTANT: Fitment depends on serial number. This valve applies to tractors with the factory bolt-on valve block. Later-production models use a steering unit with built-in valving and metric 18mm O-ring ports -- verify your serial number before ordering. Fitment by serial number: 1640, 1840, 2040, 2040S all to S/N 429999; 2140, 3040, 3140 all to S/N 429999 and S/N 430000 and above with cab to S/N 558049 (SG2 Cab); 2940 all S/N up to 376553.
Specifications
- Type: Hydraulic orbital steering valve / steering control unit
- Displacement: 100 cc/rev
- Port Thread: SAE 3/4"-16 UNF
- Manufacturer (OEM unit): Sauer-Danfoss
Compatible Models
Fits John Deere Tractors (Serial Number Restrictions Apply -- See Above): 1640, 1840, 2040, 2040S, 2140, 2940, 3040, 3140
Replaces Part Number(s):
AL55954, AL35832, AL28268, AL28271, AL35833
Aftermarket Interchange Numbers
Sauer-Danfoss / Danfoss: AL28268, AL28271, AL35832, AL35833; OEM reference: 1500173
New aftermarket replacement part - not remanufactured, not used.
