AL37707 New Pressure Plate Fits John Deere 1020 1030 1040 1120 1130 1140 1530 +

AL37707 New Pressure Plate Fits John Deere 1020 1030 1040 1120 1130 1140 1530 +

£224.00 GBP
£224.00 GBP
Sale Sold out
Shipping calculated at checkout.

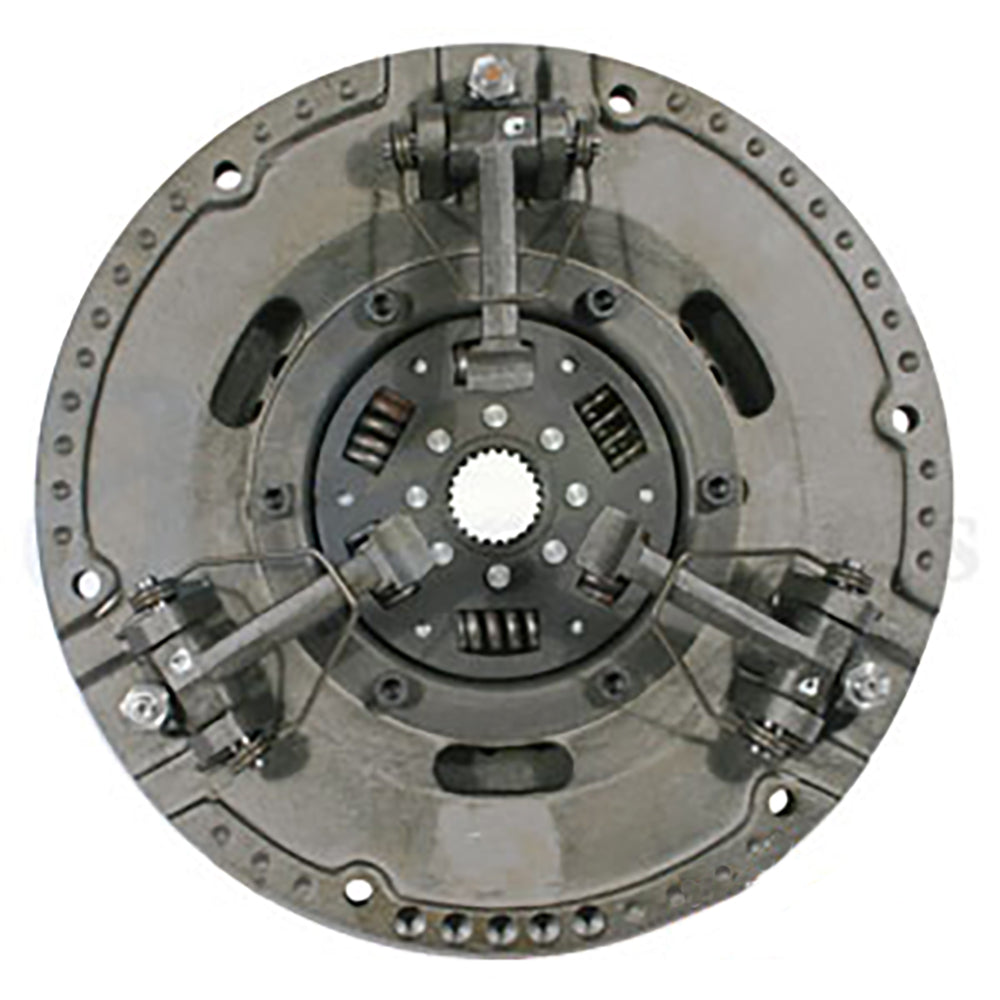

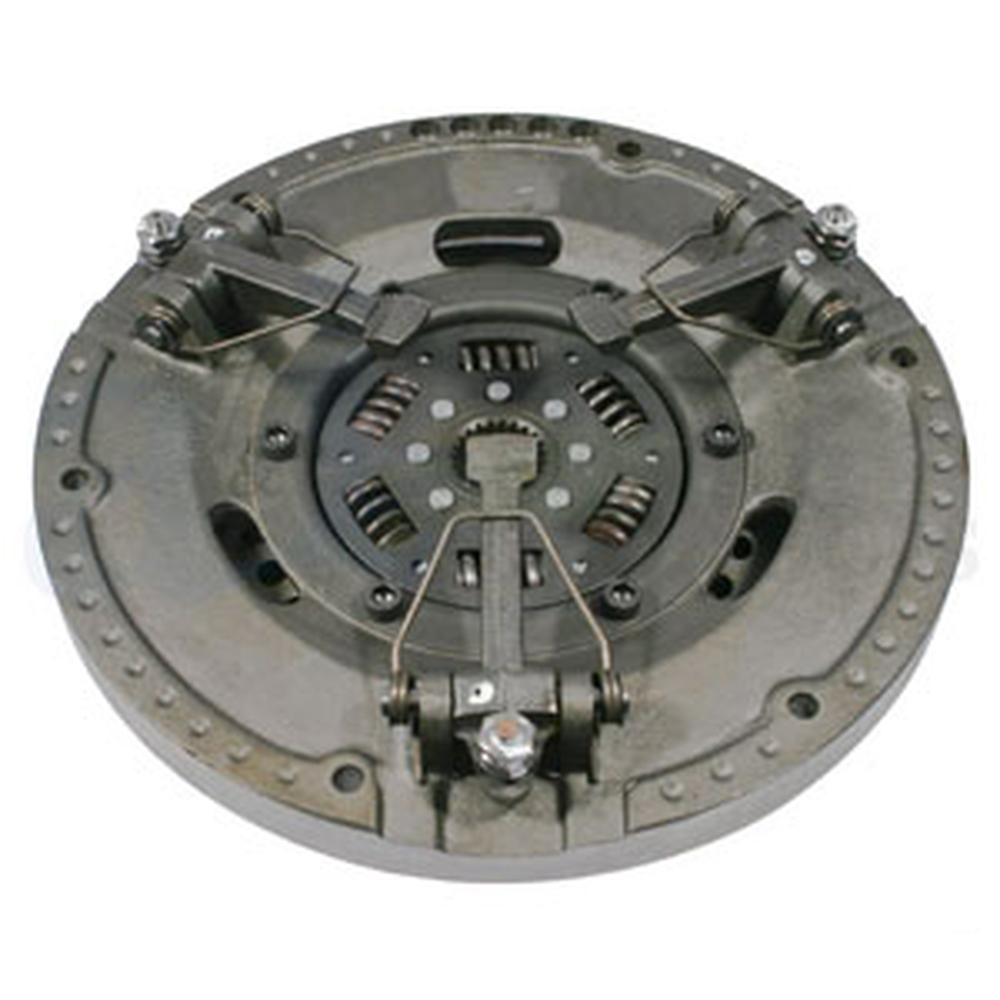

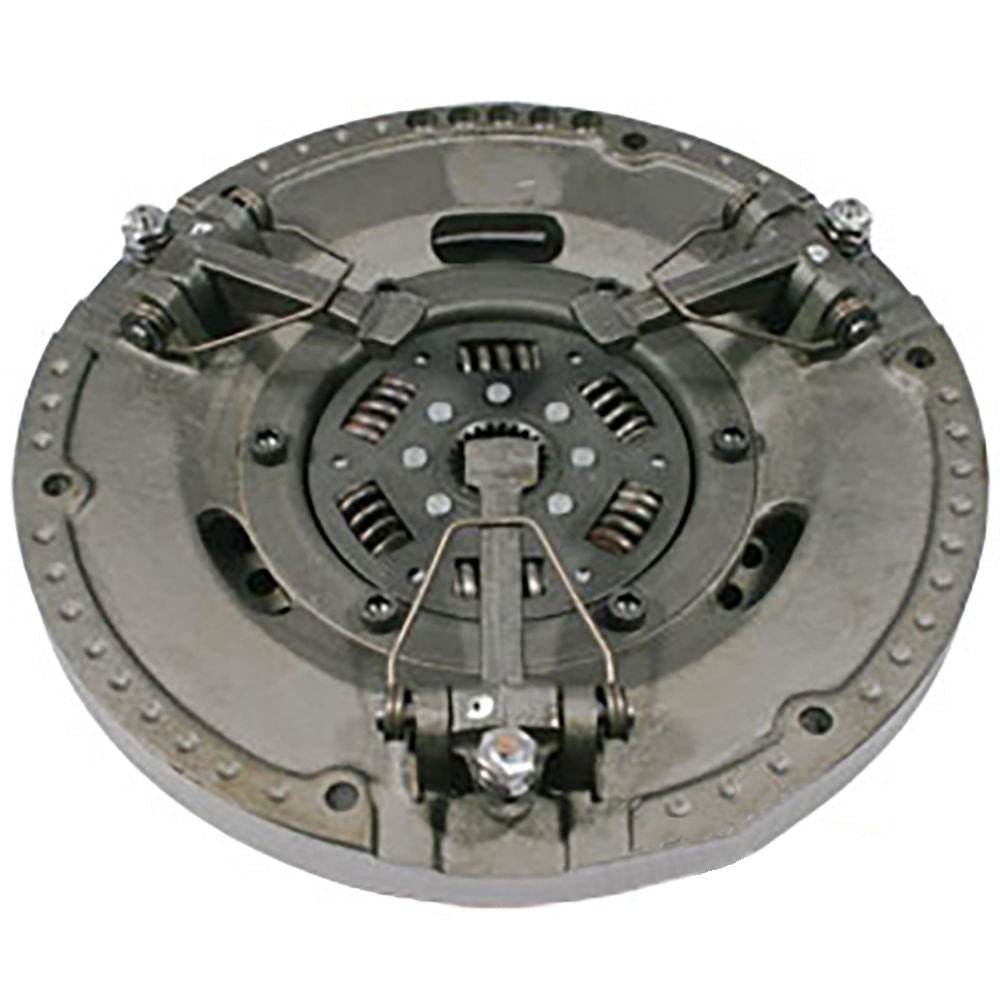

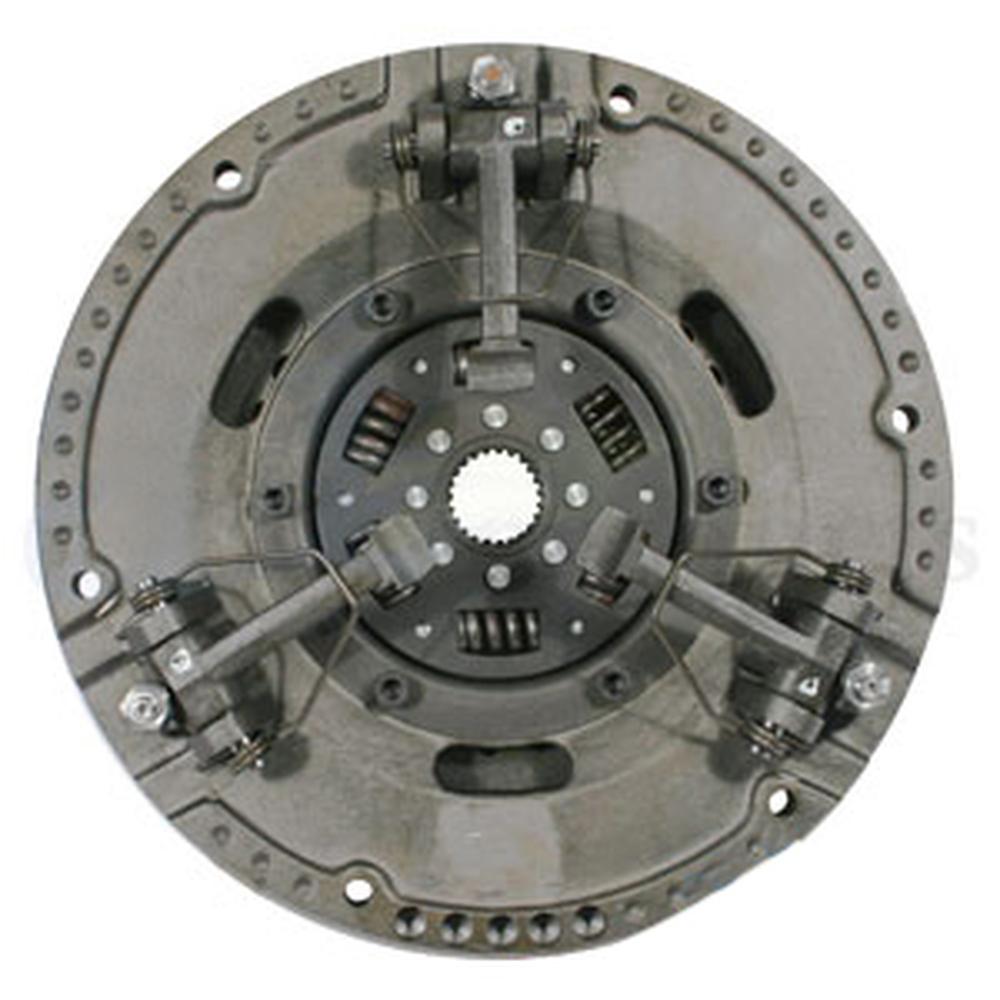

One New Aftermarket Replacement Pressure Plate that Fits John Deere Tractor Models 1020 (European), 1030 (w/ Independent PTO), 1040 (S/N <495151), 1120 (w/ Independent PTO), 1130 (w/ Independent PTO), 1140 (S/N <495151), 1530 (w/ Independent PTO), 1640 (S/N <463068), 1750V (w/ Independent PTO), 1830 (w/ Independent PTO), 1840 (w/ Independent PTO), 1850V (w/ Independent PTO), 2020 (w/ Independent PTO), 2030 (w/ Independent PTO), 2040 (w/ Independent PTO), 2120 (w/ Independent PTO), 2150 (S/N <495151), 2240 (w/ Independent PTO), 2255 (S/N <495151), 2350 (S/N <463068), 840 (w/ Independent PTO), 930 (w/ Independent PTO), 940 (w/ Independent PTO).

Dim A (1) Flywheel step 2.20-2.210

Spline Dia 1.500"

Spline Count 23

Models This Part Fits:

1020, 1035, 2150, 1635EV, 1630OU, 1130, 1630, 2030, 2120, 2240, 830, 1840F, 1750V, 1640, 1035EF, 1635, 1850V, 1030, 1630VU, 1640F, 2020, 1840, 1850, 1950, 2035, 840, 1850F, 1030VU, 1530, 2255, 940V, 1035EV, 1040V, 1120, 940, 1830, 1950F, 2040, 1140F, 930VU, 2040F, 930, 1040, 1140, 1140V, 2350, 1635EF, 2035EF, 1030OU, 2030OU

Additional Information:

Number of Fingers: 16 OD: 11" Spline Count: 23 Spline Diameter: 1.500" Flywheel Step: 2.20-2.210 w/o Release Plate

Reference Numbers:

AL120023, AL19084, AL32965, AL36374, AL37192, AL37707, AL39452, AL39618, AL39935, AL5616, AL56167

Product Category:

Agriculture
