Ignition Tune up Kit Fits Case Tractor Autolite / Prestolite Distributor Tail Ro

One New Aftermarket Replacement Ignition Tune-Up Kit Fits Case / Fits Case IH 4-Cylinder Tractors - Autolite / Prestolite Tail Rotor Distributor

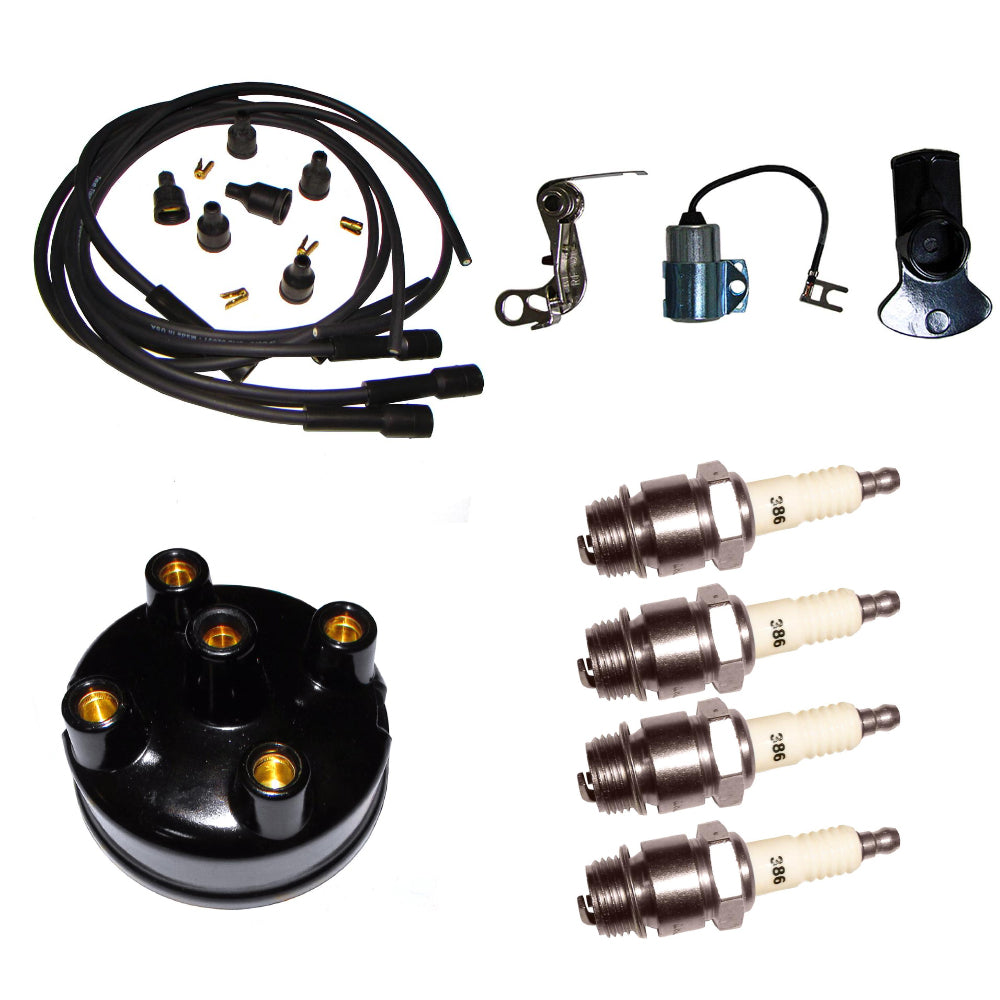

This complete ignition tune-up kit restores reliable spark to 4-cylinder Fits Case and Fits Case IH gasoline tractors equipped with an Autolite or Prestolite distributor with a Tail Rotor. The kit includes everything needed for a full ignition service: distributor cap, point set, vibration-resistant condenser, rotor, spark plug wire set (4-cylinder, non-tailored straight boot), and four spark plugs. The distributor cap features a 3-3/8" outside diameter clip-held design specific to Autolite/Prestolite distributors. Important: This kit does NOT fit distributors with a Round Rotor, nor Model IGZ or IGW distributors, Fits Delco, or WICO distributors. Verify your tractor has the Autolite/Prestolite Tail Rotor distributor before ordering. Verify your tractor requires the AL3116 spark plug (18mm, 1/2" reach) - some models may require a different plug size.

Kit Contents

• (1) Distributor Cap - 3-3/8" O.D., clip-held, for Autolite/Prestolite Tail Rotor distributor
• (1) Ignition Tune-Up Kit - Point Set, Vibration-Resistant Condenser, and Rotor
• (1) Spark Plug Wire Set - 4-Cylinder, Non-Tailored Straight Boot
• (4) Spark Plugs (AL3116 / G44840)

Specifications

• Point Gap: 0.020"
• Distributor Cap O.D.: 3-3/8"
• Spark Plug Thread Size: 18mm
• Spark Plug Reach: 12mm (0.472" / 1/2")
• Spark Plug Hex: 13/16" (20.6mm) | Shoulder Hex: 7/8"
• Spark Plug Seat Type: Gasket
• Spark Plug Gap: 0.028" (0.7mm)
• Spark Plug Heat Range: 2
• Spark Plug Thread Pitch: 1.5mm
• Center Electrode: Nickel, 2.5mm, Non-Projected, Standard
• Ground Electrode: Nickel, Standard
• Terminal Type: Removable Nut | Resistor: No
• Engine Configuration: 4-Cylinder

Compatible Models

Fits Case / Fits Case IH Tractors (4-Cylinder Gasoline with Autolite/Prestolite Tail Rotor Distributor): D, L, V, VA, VAC, VAC-11, VAC-12, VAC-13, VAC-14, VAH, VAI, VAIW, VAIW-3, VAO, VAO-15, VAS, VC, VO, 200, 200B, 210B, 211B, 300, 300B, 301, 310, 310B, 310C, 311, 311B, 312, 312B, 320, 350, 351, 400, 400B, 410, 410B, 411, 411B, 412, 413, 414, 415, 420, 420B, 425, 430, 431, 441, 470, 480, 500, 500B, 510B, 511B, 530, 540, 570, 600B, 610B, 611B, 614B, 630, 630C, 631, 631C, 680, 700, 710B, 711B, 712B, 713B, 715, 730, 730CK, 741, 770, 810, 810B, 811B, 812B, 813B, 830, 830C, 830CK, 840, 841, 870, 900, 930, 970, 1700 Skidder, 1737, 1835, 1835B, 1845, W3, W5, W5A, W9, 310 Crawler, 310D, 310E, 310F, 310G, 420C, 430CK, 480CK, 480 Loader, 530CK, 530 Construction King

Compatible Autolite/Prestolite Distributor Numbers: IAD-6003, IAD-6004, IAD-4101, IAD-4010, IAD-4020, IAD-4023, IAD-4028, IAD-4041, IAD-4043

Replaces Part Number(s):

Distributor Cap: A8368, A8638, IG1324D, IG1324H, IG1324J, G44840

Tune-Up Kit (Points, Condenser, Rotor): IG1324D, IG1324H, IG1324J

Spark Plugs: G44840, 4012405C

Aftermarket Interchange Numbers

IG-1324D, IG-1324AD, IG1324AD, IG1324C, MX0510, 1500290M91, 1500831M91, 3-11, 3-12

New aftermarket replacement part - not remanufactured, not used.
