One New Aftermarket Replacement Evaporator Fits John Deere Tractors
This aftermarket replacement air conditioning evaporator (A/C evaporator) fits a wide range of Fits John Deere (Fits JD) tractors. The evaporator is the heat-exchange core of the cab A/C system, absorbing heat from cabin air to deliver cool, comfortable temperatures for the operator. It mounts inside the cab A/C housing and uses O-ring fittings for leak-free connections.
Specifications

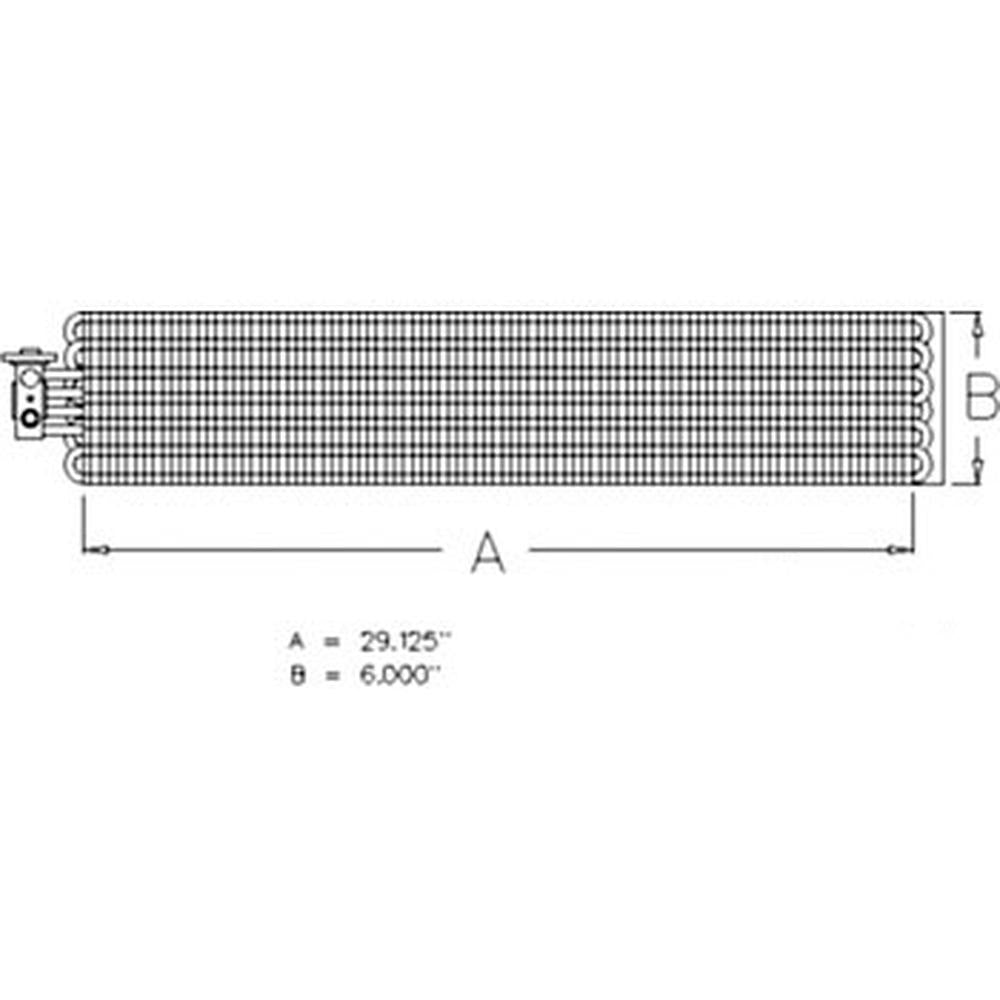

- Overall Dimensions: 32-3/4" x 5-1/4" x 6.00"
- Core Dimensions: 29.00" x 6.00" x 2-1/2"
- Inlet Fitting: #8 O-Ring
- Outlet Fitting: #10 O-Ring
Serial Number Restrictions
- Fits John Deere 5010 / 5020 Series: Serial No. 420001 and above
- Fits John Deere 6020 Series: Serial No. 398655 and above
- Fits John Deere 7220 / 7320: Serial No. 012450 and above
- Fits John Deere 7420 / 7520: Serial No. 398655 and above
Compatible Models
Fits John Deere (Fits JD) 5000 Series Tractors: 5065M, 5070M, 5075M, 5080M, 5080R, 5085M, 5085E, 5083E, 5090M, 5093E, 5095M, 5100M, 5100R, 5101E, 5105M, 5105ML, 5220 (SN 420001+), 5225, 5320 (SN 420001+), 5325, 5420 (SN 420001+), 5425, 5520 (SN 420001+), 5525, 5603, 5620, 5625
Fits John Deere 6000 Series Tractors: 6120, 6220, 6230, 6320, 6320L, 6330, 6420, 6420L, 6430, 6520L (SN 398655+)
Fits John Deere 7000 Series Tractors: 7130, 7220 (SN 012450+), 7230, 7320 (SN 012450+), 7330, 7420 (SN 398655+), 7430, 7520 (SN 398655+)
Fits John Deere Construction Equipment: 210K, 210K EP, 210LJ, 3800, 4630
Replaces Part Number(s):
AL163863, AL160350
Aftermarket Interchange Numbers
Superseded by Fits John Deere OEM number AL219021. This aftermarket part replaces all numbers in the AL160350 / AL163863 / AL219021 supersession chain and is compatible with original-design machines.
New aftermarket replacement part - not remanufactured, not used.
