AH218675 SIEVE FRAME ASSY.; RH
AH218675 SIEVE FRAME ASSY.; RH
Couldn't load pickup availability

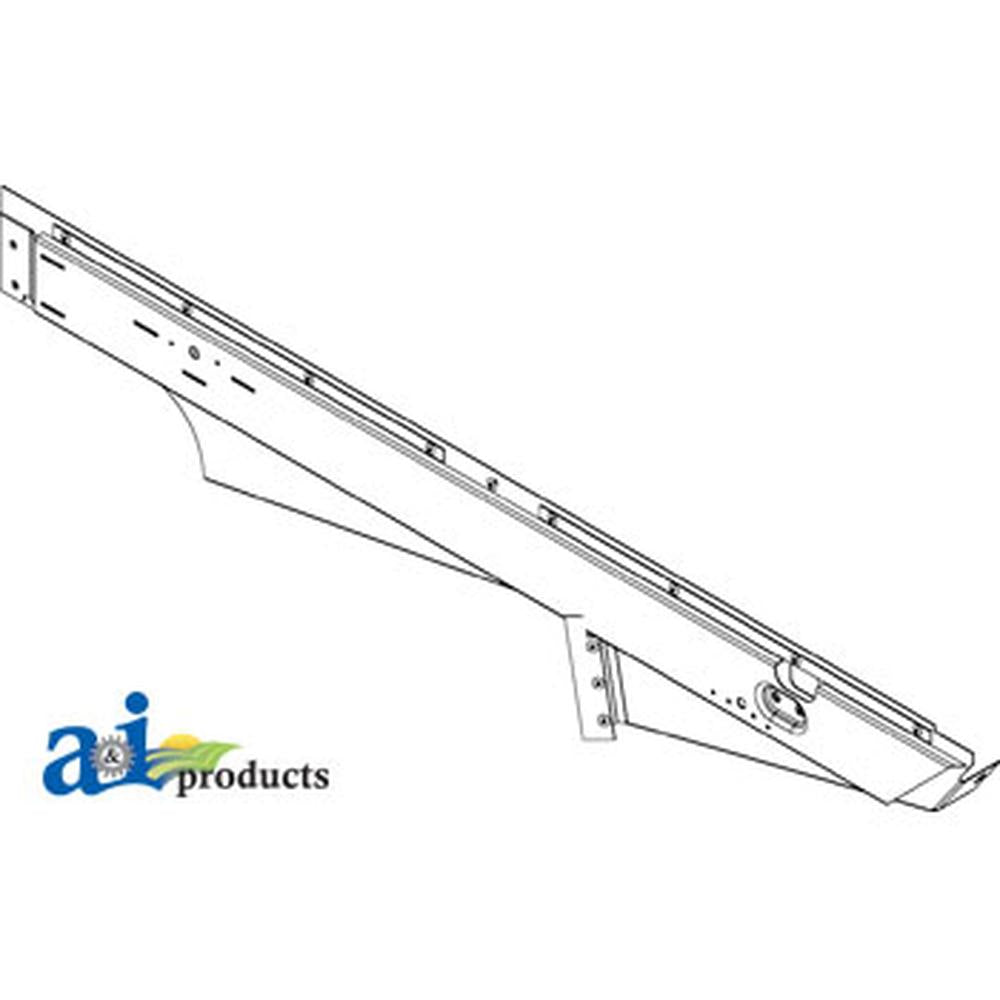

One New Aftermarket Replacement Right-Hand Sieve Frame Assembly Fits John Deere STS and S-Series Combines
This right-hand (RH) sieve frame assembly is a structural component of the cleaning shoe system on Fits John Deere STS and S-Series combines. The sieve frame supports the bottom sieve in the cleaning shoe, where air and sieve action separate grain from chaff and lightweight material after threshing. A damaged or worn sieve frame compromises cleaning efficiency, increases grain loss, and can affect sample quality at the bin.
Specifications
- Side: Right-Hand (RH)
- Application: Combine cleaning shoe - bottom sieve frame
- Dimensions: Approximately 1713 x 285 x 88 mm
- Weight: Approximately 13.8 kg
Compatible Models
Fits John Deere STS Combines: 9560STS, 9650STS, 9660STS, 9750STS, 9760STS, 9860STS, 9670STS, 9770STS, 9870STS, 9880STS, 9880iSTS
Fits John Deere (Fits JD) S-Series Combines: S650, S660, S670, S680, S690
Replaces Part Number(s):
AH218675, AH166671, AH171358, AH202198
New aftermarket replacement part - not remanufactured, not used.
