AH166489 Grain Head Reel Teeth 10 Per Pack

Name: AH166489 Grain Head Reel Teeth 10 Per Pack
SKU: COH70-0041_x10-ITR
Price: 54.0 USD
Availability: InStock

AH166489 Grain Head Reel Teeth 10 Per Pack

£54.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

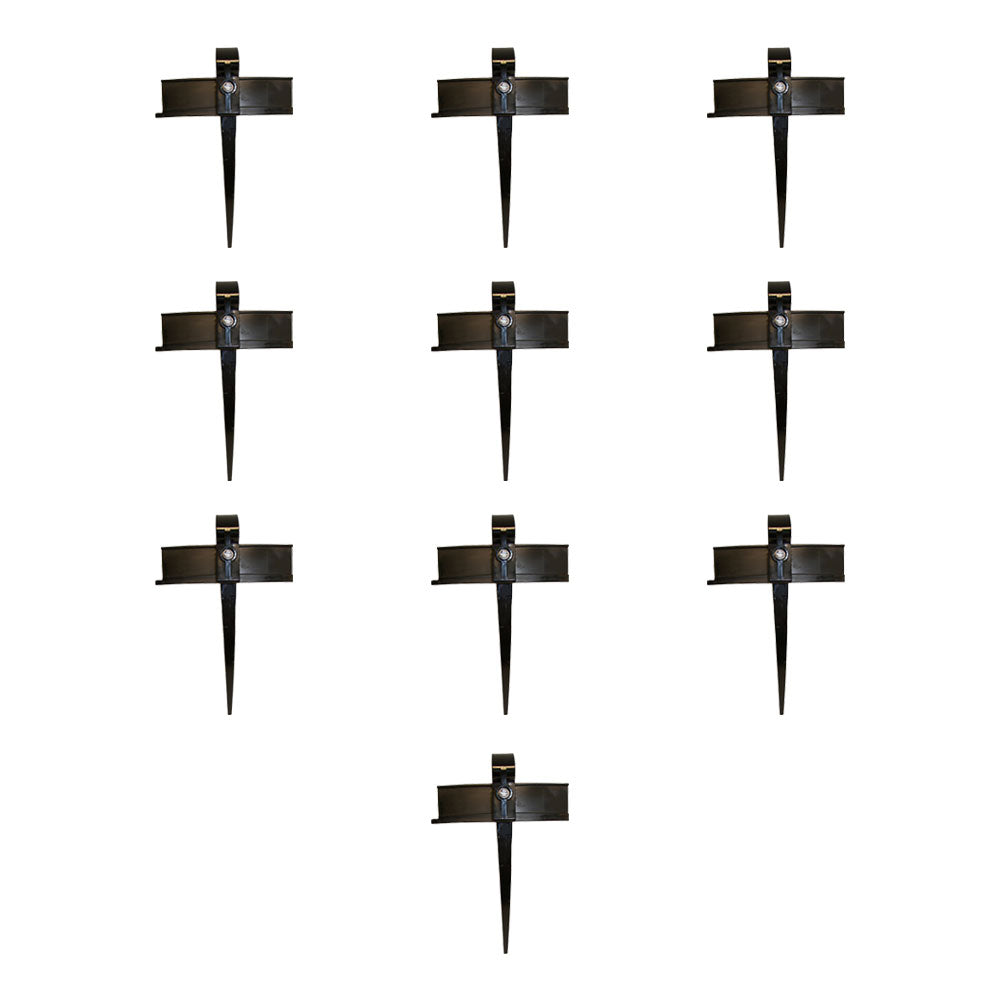

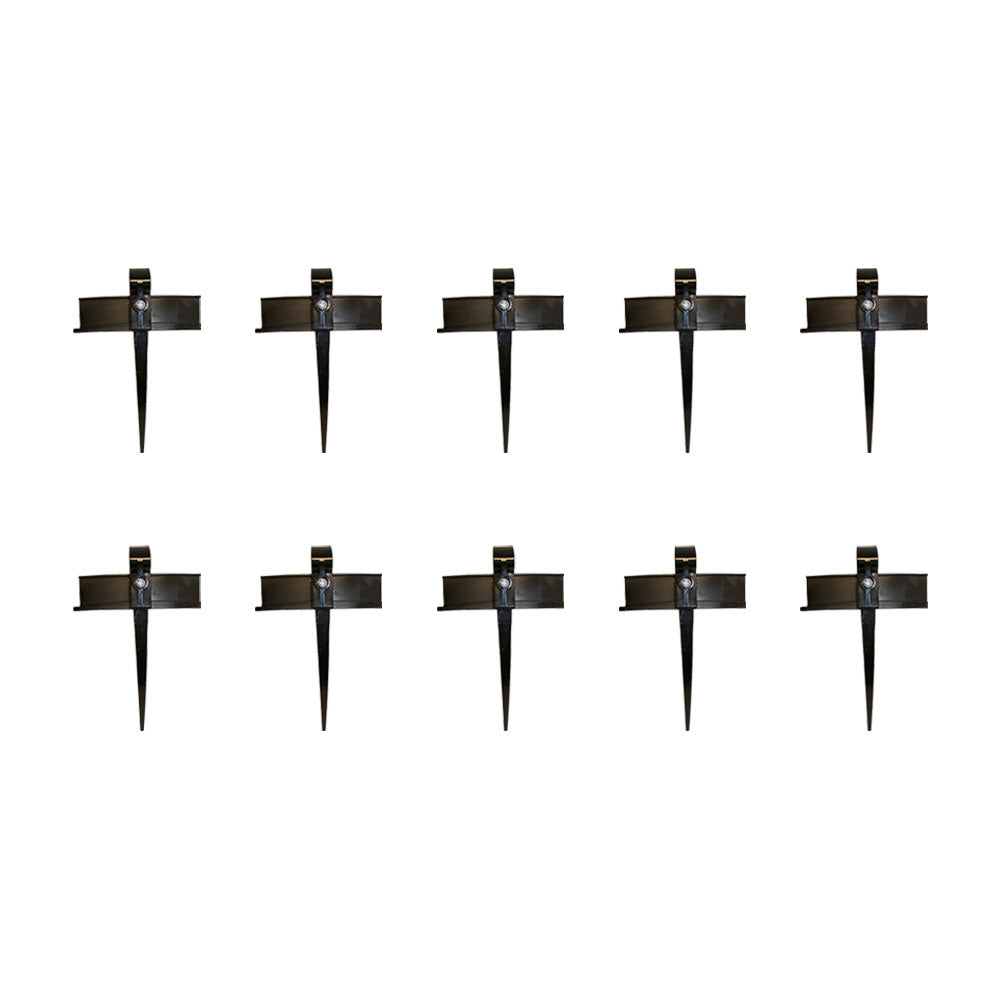

One New Aftermarket Replacement Grain Head Reel Teeth - Pack of 10 Fits John Deere, Fits Case IH, Gleaner, Fits Massey Ferguson, Fits Ford/New Holland, and Fits Caterpillar Combines

This aftermarket replacement grain head reel tine (pickup reel tooth) installs on the pickup reel bat tube of grain cutting platforms. The nylon long double-wing tine snaps into a 0.500-inch hex hole in the reel tube to sweep crop material into the header. This design has been the standard reel tine configuration since 1999/2000. Pack of 10 tines with mounting hardware included.

Specifications

Style: Center, Nylon Long Double Wing
Overall Length: Approximately 11 inches
Overall Width (Double Wing): 6 inches
Reel Tube Diameter: Fits 1.375-inch (35 mm) reel tube
Hex Hole Size: 0.500-inch (12.5 mm) hex hole
Tine Spacing: 6.00-inch (152 mm) hex hole spacing
Weight: Approximately 2.0 lbs per pack
Pack Quantity: 10 tines with hardware

Compatible Models

Fits John Deere Grain Cutting Platforms: 900F (S/N 685101 and up), 900R, 600F, 600R, 615F, 615R, 618F, 618R, 620F, 620R, 622F, 622R, 625F, 625R, 625D, 630F, 630FD, 630R, 630D, 635F, 635FD, 635R, 635D, 640D, 640FD, 913F, 913R, 915F, 915R, 916F, 916R, 918F, 918R, 920F, 920R, 922F, 922R, 924F, 924R, 925F, 925R, 925D, 930F, 930R, 930D, 936D

Fits Case IH Grain Heads: 1010, 1020 (2001 and up), 2010, 2020

AGCO Gleaner Grain Heads: 700, 800, 7000, 8000, 8200

Fits Massey Ferguson Grain Heads: 8000, 8200, 9800, 9850

Fits Ford/New Holland Grain Heads: 71C, 72C, 73C, 74C

Fits Caterpillar/Challenger: Lexion F Series, Challenger Flex Headers, F Series

Note Fits John Deere 900F: Serial number restriction applies - fits S/N 685101 and up only. Verify serial number before ordering.

Replaces Part Number(s):

AH166489, AH166493, 01186, 291310A1, 783597, 410856A1, 783707, T16-0740, T160740

Aftermarket Interchange Numbers

AMX27222 (Abilene Machine), WN-AH166489, 224047, 86608281, 86608282

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

9850, F SERIES, 71C, 72C, 2020, 700, 1020, CHALLENGER FLEX, 74C, 9800, 2010, 900R, 8000, 8200, 900D, 800, LEXION F SERIES, 73C, 900F, 7000

Additional Information:

Overall Length: Approximately 11 inches. Overall Width (Double Wing): 6 inches. Reel Tube Diameter: Fits on a 1.375-inch (35 mm) reel tube. Hex Hole Size: Fits into a 0.500-inch (12.5 mm) hex hole in the tube. Tine Spacing: Designed for reels with 6.00-inch (152 mm) spacing between the hex holes. Weight: Approximately 2.0 lbs. Center, Nylon Long Double Wing Unit, Tines have a hex nub that fits into a hex hole in the tube. Standard since 1999/2000. Includes Hardware.
