One Lift Cylinder AH150349 Fits John Deere 450H Dozer
One Lift Cylinder AH150349 Fits John Deere 450H Dozer
Couldn't load pickup availability

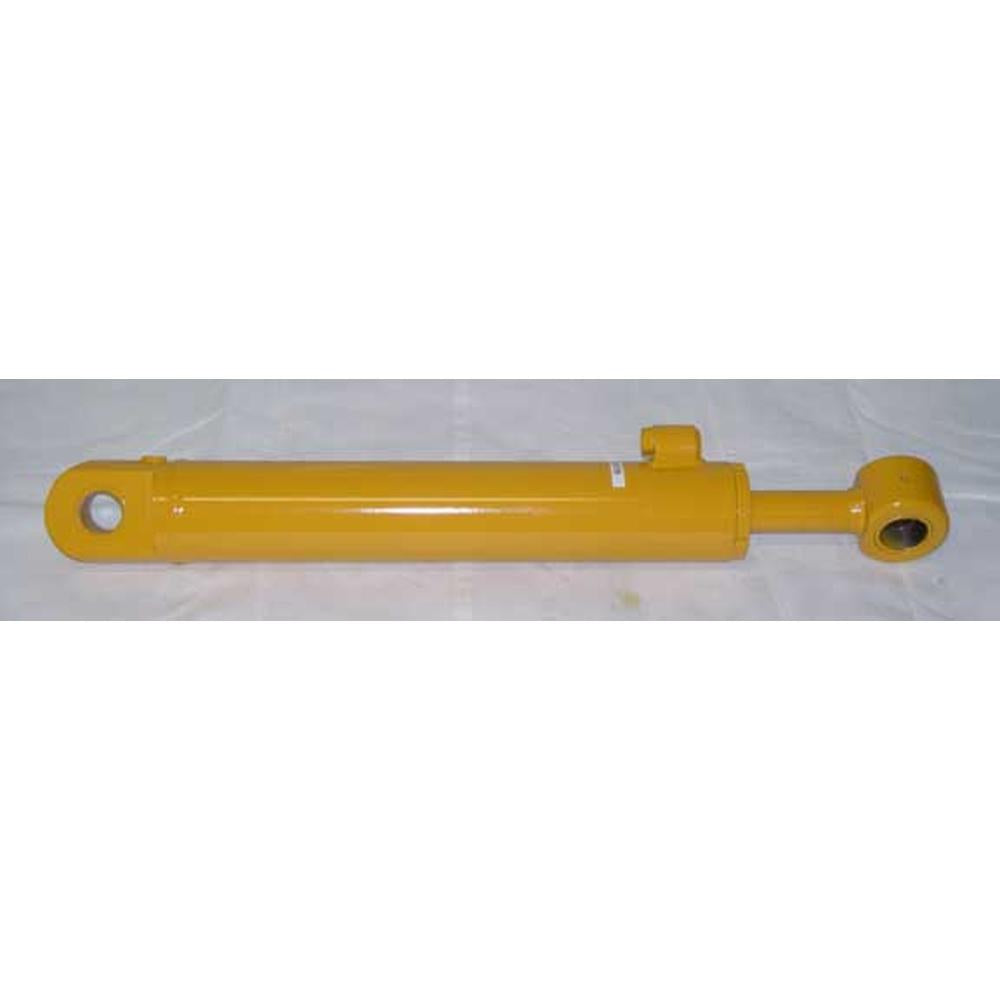

One New Aftermarket Replacement Blade Lift Cylinder Fits John Deere 450H Crawler Dozer
This aftermarket replacement blade lift cylinder (replaces OEM part number AH150349) controls the raising and lowering of the dozer blade on the Fits John Deere 450H crawler dozer. It is a hydraulic welded cylinder that fits either the right-hand or left-hand side of the machine and includes both rod-end and tube-end bushings.
Specifications
- Bore: 80mm
- Rod: 40mm
- Weight: Approx. 58 lbs.
- Bushings: Rod-end and tube-end bushings included
- Application: Blade lift (raises and lowers dozer blade)
Serial Number Restriction
Important: AH150349 applies to Fits John Deere 450H units with serial numbers up to 925555. Units with serial number 925556 and above use cylinder AH210530. Verify your serial number before ordering.
Compatible Models
Fits John Deere Crawler Dozer: 450H (s/n -925555)
Replaces Part Number(s):
AH150349
Aftermarket Interchange Numbers
AH210530 (successor cylinder for s/n 925556+, for reference only - verify serial number)
New aftermarket replacement part - not remanufactured, not used.
