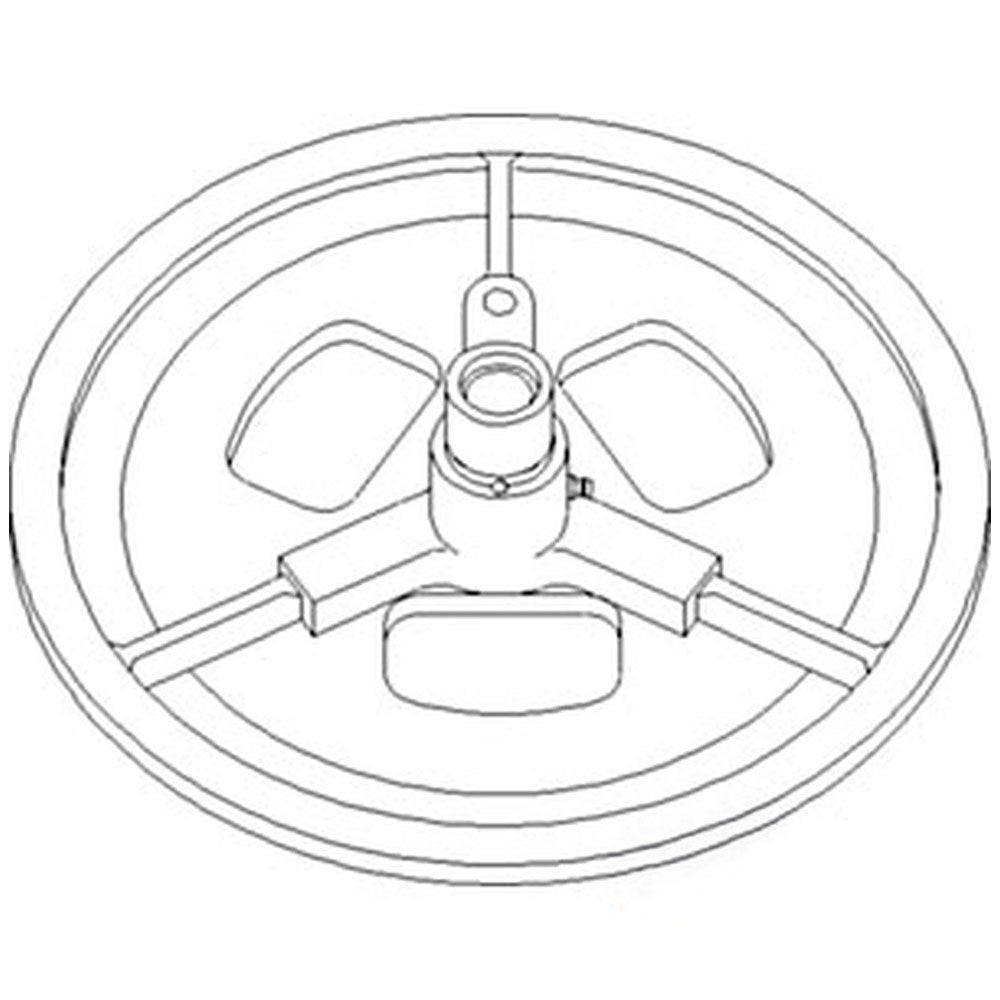

AH146463 Sheave Assy, Outer Drive, Separator Fan
AH146463 Sheave Assy, Outer Drive, Separator Fan
Couldn't load pickup availability
One New Aftermarket Replacement Outer Drive Separator Fan Sheave Assembly Fits John Deere Combines
This outer drive half sheave assembly is part of the variable-speed separator fan drive system on Fits John Deere walker and CTS combines. It controls airflow through the cleaning shoe by varying separator fan speed, and is the outer (drive) half of the sheave pair. Casting number H152110; outside diameter 460 mm (18.11 in); speed range 750-1350 RPM.
Specifications
- Outside Diameter: 460 mm (18.11 in)
- Speed Range: 750-1350 RPM
- Weight: 29.10 lbs (13.20 kg)
- Casting No.: H152110
- Type: Outer Drive Half Sheave
Compatible Models
Fits John Deere Combines: CTS (ASN 670401 and later), CTS II, 9400 (ASN 670101 and later), 9410, 9450, 9500 (ASN 670201 and later), 9500SH (ASN 670201 and later), 9510, 9510SH, 9550, 9550SH, 9560 (BSN 705251 and earlier), 9600 (ASN 670301 and later), 9610, 9650, 9650CTS, 9660 (BSN 705331 and earlier), 9660CTS (BSN 705403 and earlier), 9780CTS (BSN 078555 and later)
Replaces Part Number(s):
AH146463, A-AH146463, A-AH146463-AI
New aftermarket replacement part - not remanufactured, not used.
