109268C2 Tstat Switch IH 986 1086 1486 1586 3088 3688 5088 5288 5488 7288 7488

109268C2 Tstat Switch IH 986 1086 1486 1586 3088 3688 5088 5288 5488 7288 7488

£29.00 GBP
£29.00 GBP
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Thermostatic Switch Fits International Harvester (IH) 86/88 Series Tractors and Combines

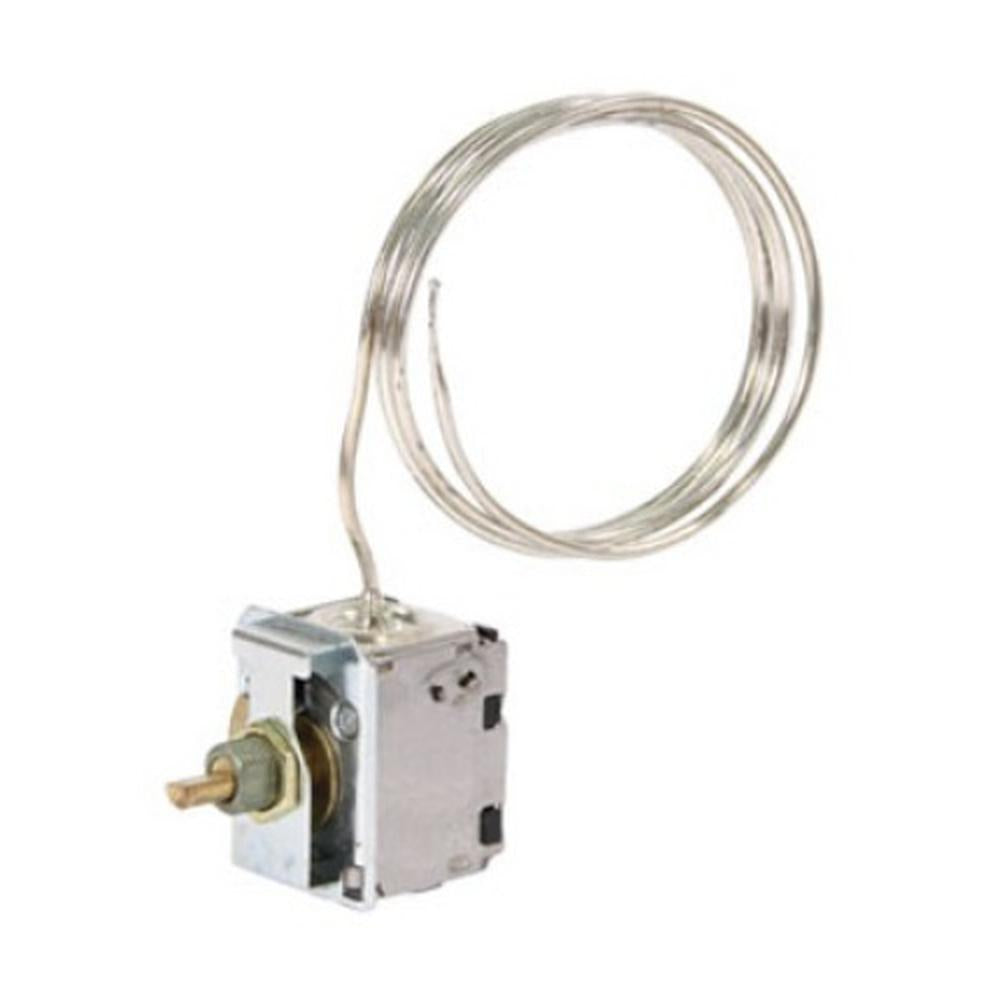

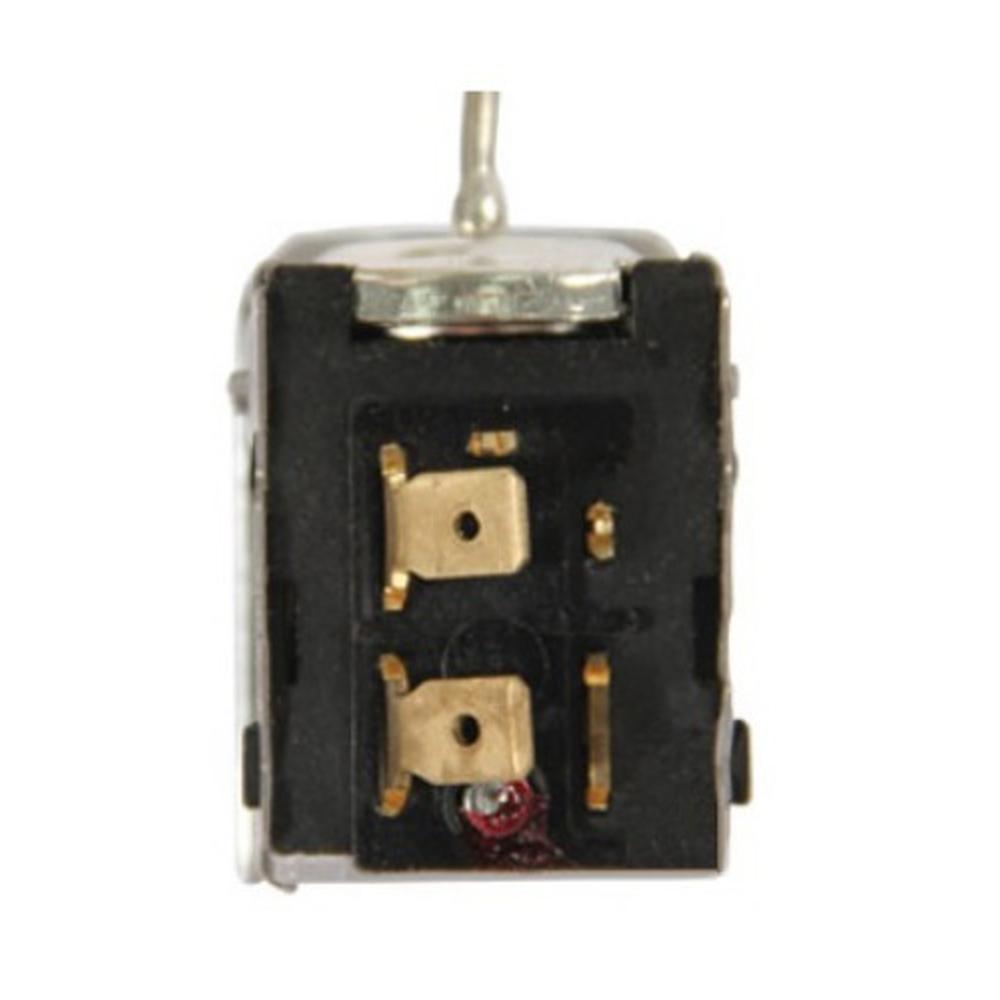

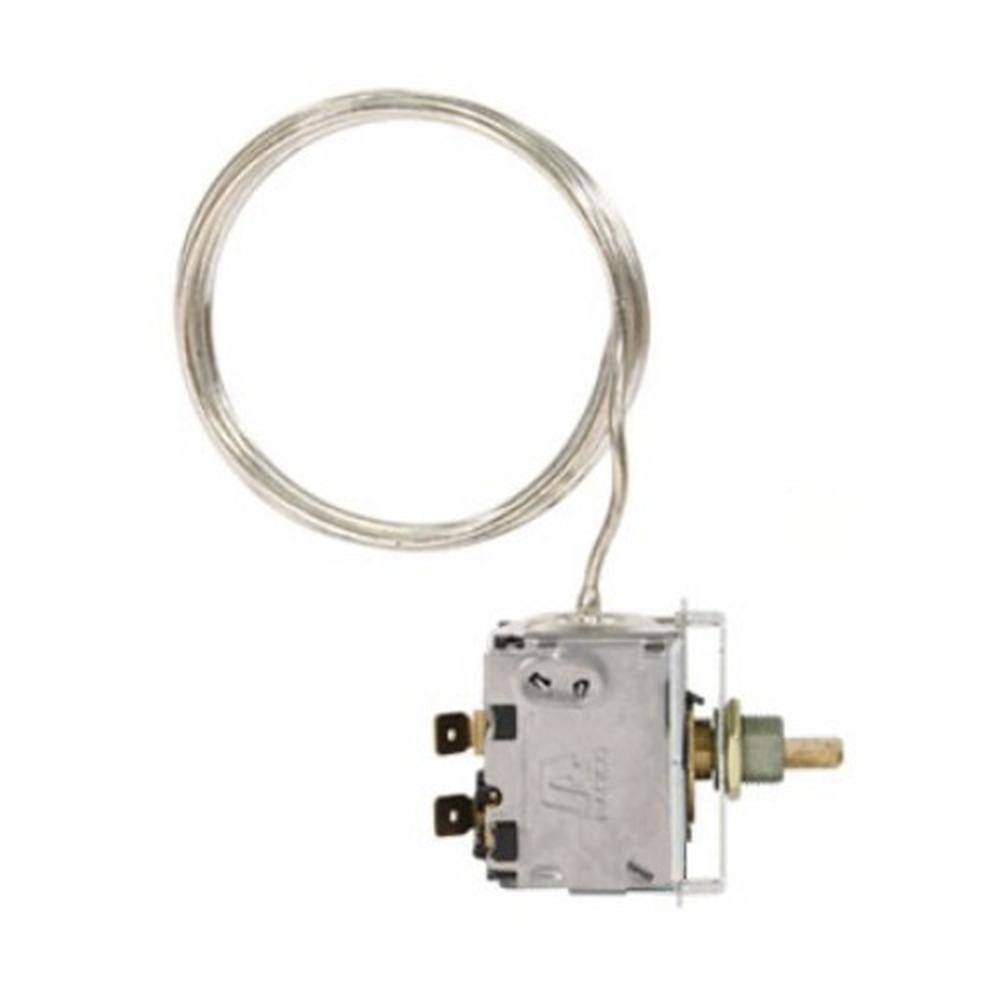

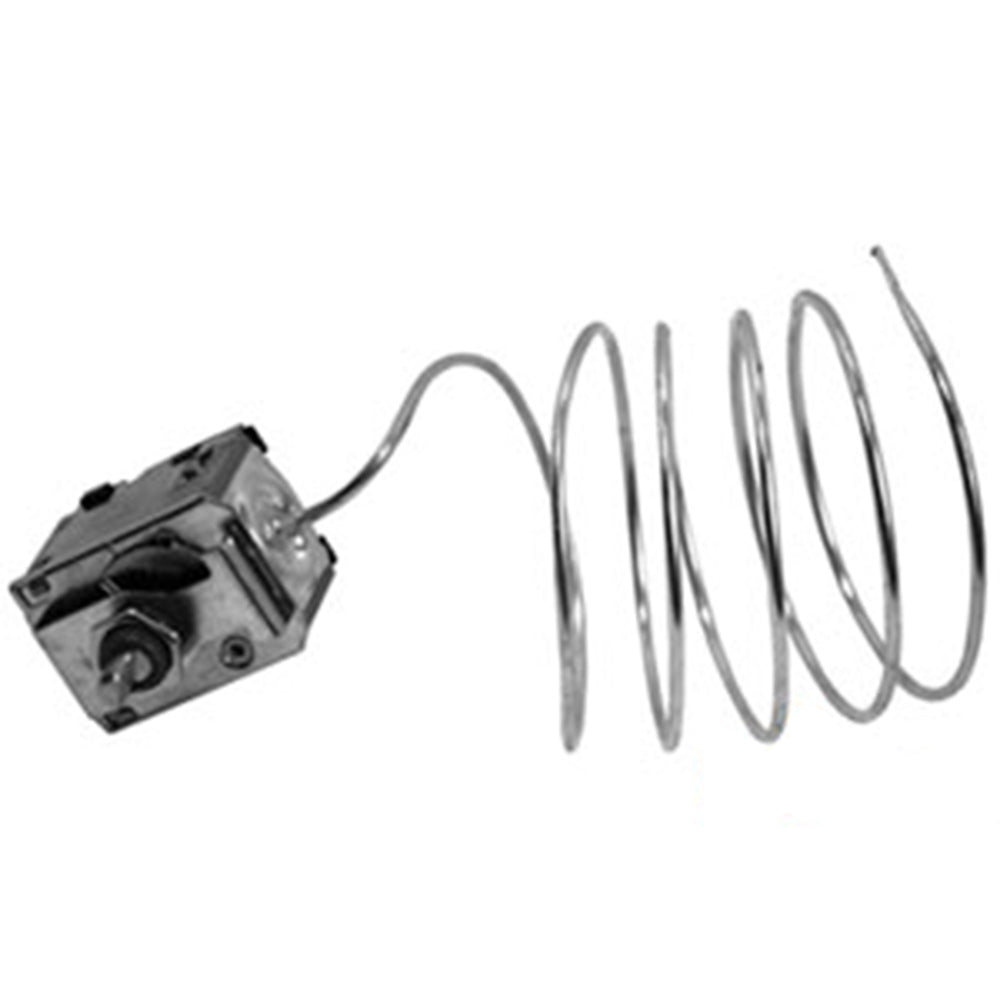

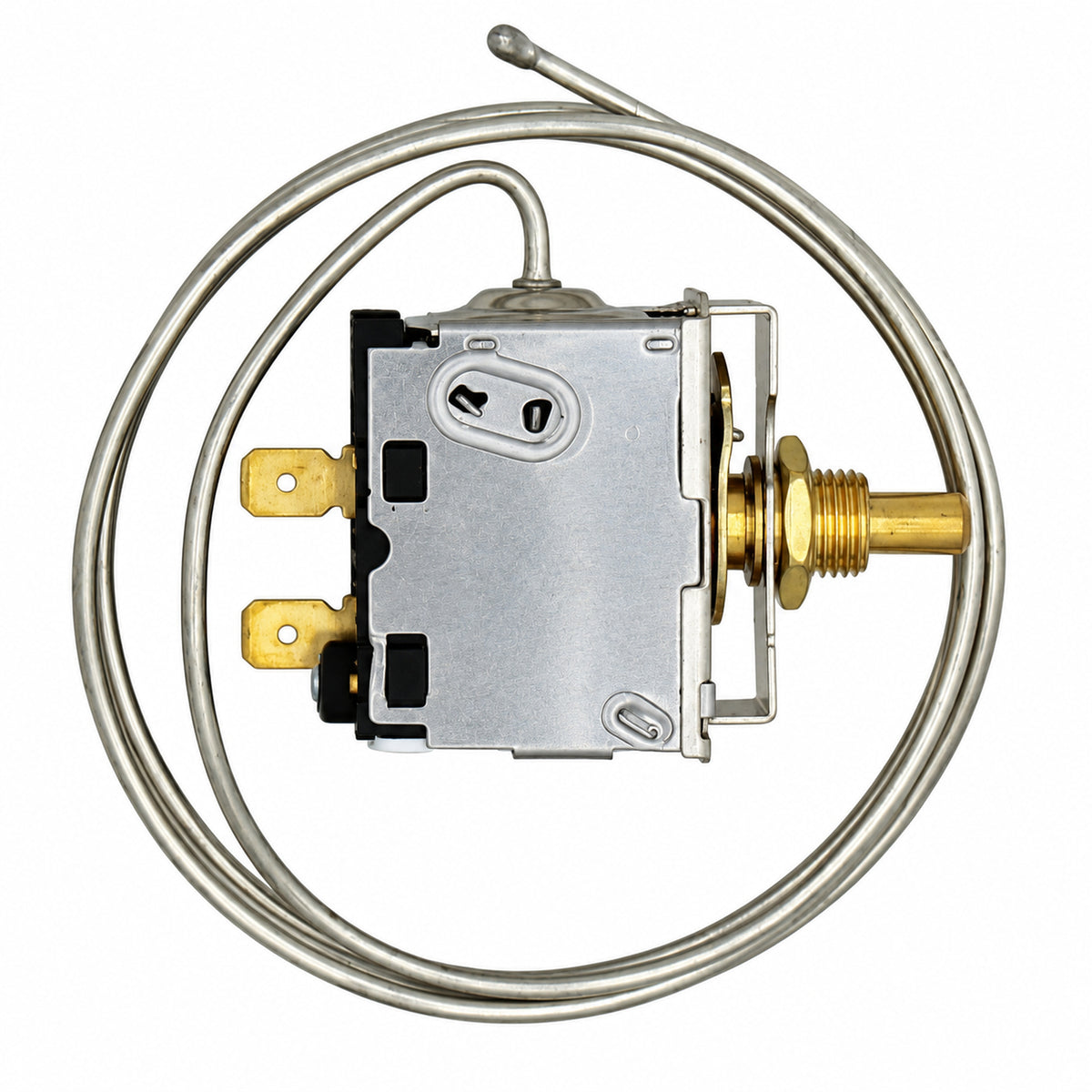

This 12-volt rotary thermostatic switch mounts in the cab A/C system and cycles the compressor clutch to prevent evaporator freeze-up. The 48-inch capillary tube inserts into the evaporator fins to sense temperature, turning the compressor off at 26 degrees F and back on at 33 degrees F. Rated for medium and heavy duty agricultural applications, this vented switch is a direct replacement for IH OEM part number 109268C2 and crosses to equivalent numbers Fits Case IH, Fits Allis Chalmers, Fits John Deere, Fits Massey Ferguson, Fits Ford/New Holland, and other makes.

Specifications

  • Voltage: 12V
  • Switch Type: Rotary
  • Capillary Tube Length: 48 inches
  • Vented design
  • Rated: Medium and Heavy Duty
  • Cold Off: 26 degrees F
  • Cold On: 33 degrees F

Compatible Models

Fits International Harvester (IH) Tractors: Hydro 186, 786, 886, 986, 1086, 1486, 1586, 3088, 3288, 3388, 3488, 3588, 3688, 3788, 4386, 4568, 4586, 4786, 5088, 5288, 5488, 6388, 6588, 6788, 7288, 7488

Fits International Combines: 715, 1420, 1440, 1460, 1470, 1480

Fits International Harvesters: 782, 1400

Fits Case IH Tractors: 585, 595, 685, 695, 795XL, 885, 895, 895XL, 956XL, 995XL, 1056XL, 1255XL, 1455XL, 3220, 3230

Fits Case IH Combines: 1620, 1640, 1644, 1660, 1666, 1670, 1680, 1688

Fits Case IH Harvesters: 782, 1800, 1822, 1844, 2022, 2044, 2055

Fits Allis Chalmers Tractors: 4W-220, 4W-305, 6060, 6070, 6080, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, 7580, 8010, 8030, 8050, 8070, 8550

Fits John Deere: Cross-references via AT61602 and AH80197

Fits Massey Ferguson: 398, 510, 540 (cross-references via 250698M1, 1034565M91, 3320059M2)

Fits Ford/New Holland: Cross-references via D3NN19618A

Replaces Part Number(s):

109268C2, 109268C2-A, 92101C1, 92101C1-A, 8022337, 841445, 7022163, 303133680, 30-3133680, 1034565M91, 250698M1, 250698M1-A, 3320059M2, 3320059M2-A, L73646, A73646, L73617, AH80197, AH80197-A, AR49960, AR49960-A, AR59779, AR59779-A, AL59879, 220-256, 220-256-A, 220256, 220-214, 270-35, 270-44, 70272229, 70272229-A, 72162641, 72162641-A, 71162474, 71162474-A, 925602, 925620, D3NN19618A, D3NN19618A-A, V31505, V53620, 9672323, 9672323-A, 70268476, 0034221, 0034221-A

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

4-175, 4-210, MX120, 115-90DT, 8550, MTX110, 160, 2090, 1130, CX90, 4030, Hydro 186, CX70, 1805, 145 Workhorse, 8240, XTX200, 715, 2-135, Panther, Field Boss 185, 5410, MC115, 4960, XTX215, 70-90, 4555, 8070, 8200, 8450, 4440, MTX155, 180-90, Lion 1000 Powershift, MC100, 55-90DT, D8500, 4455, D8006, KM Series IV, 55-90, 100-90DT, 8440, 9600, CX80, 2805, CX95, 4560, 5300, 1486, 1690, 1155, 160-90, MTX150, 100, 8340, 4230, MTX175, 4630, 8650, 180-90DT, 1666, 8630, 2940, 5210, 8820, 1080, MC105, 4640, 1896, 5020, 1085, 4520, 2-105, 5400, 6215, 115-90, CX60, 1640, MX90C, 8400, 7840, 90-90, 8010, MTX135, 1644, D6200, 90-90DT, 2-88, 5310, 4-180, 9700, 5510, 60 American, 4055, MTX185, 410, 1800, Bearcat/Cougar 1000 Power, 9000, 6144, 6195, CM Series IV, 2-180, 1460, 8640, 1670, 1135, 510, 1100, 4040, MX80C, 390T, 9200, 1086, Panther 1000, 4240, MC120, 7700, 1500, 4755, MTX140, MTX125, 8050, 4420, 398, MX135, 1620, Lion, 6620, 8700, 2290, 1480, 1490, CX85, 2096, 4620, CX75, 285, 4250, 3525, 5200, D6600, 140-90DT, 3505, 4840, 2745, 4850, 80 American, 6600, 2-110, XTX185, 2640, Panther 1000 Powershift, CX100, D7007C, CA-Industrial Series, 4430, 2-155, 540, CS Series, 1440, MC80, D10006, 8430, 7720, 383, Cougar 1000 Series, 396, 393, 2675, 4050, 1586, 5500, MC135, CU-Industrial Series, MX170, 4650, 698, 375, D7500, MX100, 699, 6175, 1660, MX150, 2094, 1420, MC95, 7580, 4450, 100-90, MTX165, 140, 170 Workhorse, MTX200, 120, MX100C, 4255, 125 Workhorse, 2705, 8600, 3545, 2775, MC90, 1150, CX50, 2-85, 8000, SM Series IV, 2294, 1688, 1105, MX110, 1505, 140-90, 2-150, 4760, 390, 399, D13006, 6124, 195 Workhorse, 4955, MTX120, 6145, 1680, 760, CX1045, 750, 80-90

Additional Information:

Volt: 12 Capillary Length: 48" Switch Type: Rotary Vented Rated Medium & Heavy Duty

Reference Numbers:

L73646, A73646, L73617, 109268C2, 92101C1, D3NN19618A, V31505, V53620, 9672323, 220-256, 220256, 0034221, 220-214, 270-35, 270-44, 70272229, 72162641, 925602, 925620, 8022337, 841445, 7022163, 1034565M91, 250698M1, 3320059M2, 303133680, 30-3133680, AH80197, AR49960, AR59779, AL59879, 70268476, 71162474
