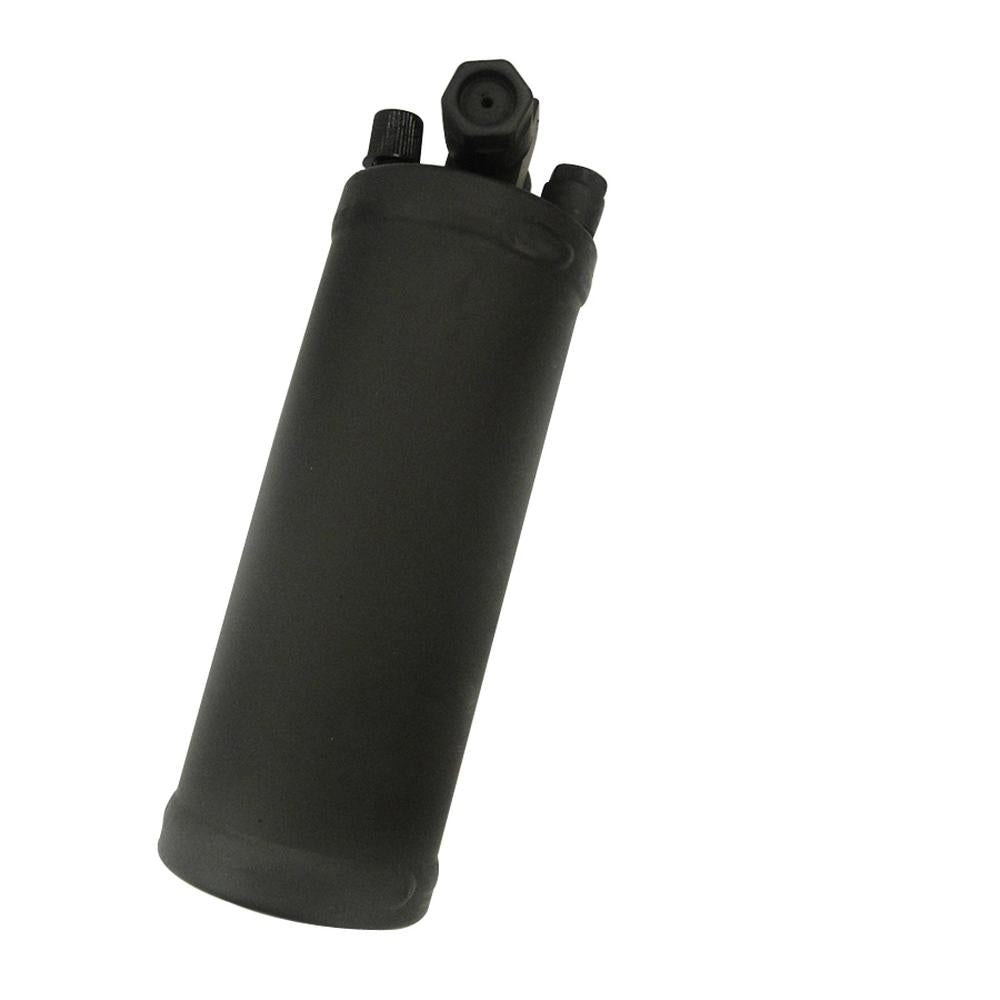

One New Aftermarket Replacement Receiver Drier for Fendt FARMER Series Tractors
This aftermarket A/C receiver drier is a direct replacement for the Fendt FARMER series cab air conditioning system. Located on the high-pressure side of the A/C loop between the condenser and the expansion valve, the receiver drier collects and stores liquid refrigerant, removes moisture via an internal desiccant, and filters contaminants from the system to protect the compressor and maintain cooling performance. The receiver drier should be replaced any time the A/C system is opened or serviced.
Specifications
- Diameter: 2.5 in.
- Overall Height: 8 in.
- Fitting Inlet: #6 Male O-Ring
- Fitting Outlet: #6 Male O-Ring
- Male Switch Port: 1, 7/16 x 20 Flare
- Female Switch Port: 1, 3/8 in. - 24 O-Ring
- Top Sight Glass
Compatible Models
Fendt FARMER Series: FARMER 303, FARMER 304, FARMER 305, FARMER 306, FARMER 307, FARMER 308, FARMER 309, FARMER 311LSA
Replaces Part Number(s):
D45070017, F205550060100
Aftermarket Interchange Numbers
Also replaces: Fits Case IH 75251998, 149944A1, 75325647; Fits Bobcat 5436662004; Highway Automotive 42011001 (UVD027)
New aftermarket replacement part - not remanufactured, not used.
