Clutch Rebuild Kit Fits John Deere A AO AR
Clutch Rebuild Kit Fits John Deere A AO AR
Couldn't load pickup availability
One New Aftermarket Replacement Clutch Rebuild Kit
Fits John Deere Tractor Models: A, AO, AR

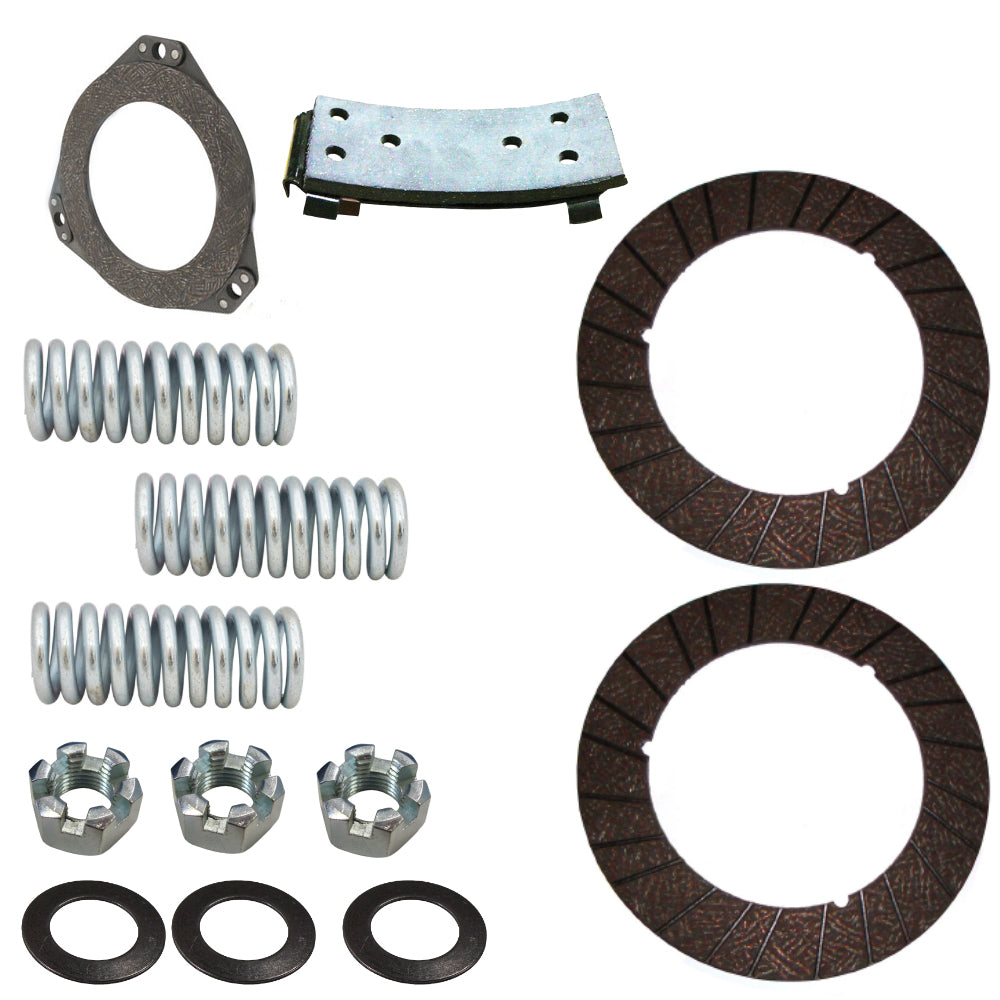

Kit Contains:
(1) Facing Clutch Pulley
10" disc outside diameter
0.393" thick
Replaces Part Numbers: AA5082R, AA6129
(1) Brake Pad Pulley
Non-asbestos lining with countersunk brass rivets
Replaces Part Numbers: AB4748R, AF4748R, RE29790
(2) Facing Clutch Disc
10" outside diameter
6-3/4" inside diameter
0.150" thick
The side with the grooves faces the driving disc
1-5/8" lining width
Replaces Part Numbers: R90215, C614R
(3) Clutch Disc Adjusting Spring
1.915" long
0.740" outside diameter
0.500" inside diameter
0.120" wire thickness
The clutch disc adjusting spring mounts to the outer cast iron adjusting disc
3 springs used per tractor
Replaces Part Numbers: A352R
(3) Clutch Adjusting Nut
1/2" - 20 NF
Grade 5
Zinc
Slotted hex nut, 1/2"
3 used per tractor
Replaces Part Numbers: B3279R, AA4967R, A335R, 14H994
(3) Clutch Pressure Plate Spring (Fits Belleville) Washer
0.572" inside diameter
0.937" outside diameter
0.035" thick
Spring steel
Torque initially to 15 FT pounds, then adjust as needed
Use to smooth out the hand clutch engagement
3 used per tractor
Replaces part Numbers: JDS1626
Part Details:
The pulley clutch disc are 0.393" thick. One is needed per tractor.
The floating clutch facing discs are 10" (OD) x 0.15" (thick) with an inner diameter of 6.75". Two are needed per tractor.
The belt pulley brake lining is a non-asbestos lining with countersunk brass rivets.
The clutch disc adjusting spring mounts to the outer cast iron adjusting disc. They are 1.915" long and the wires are 0.120" thick. There are 3 used per tractor.
The clutch adjusting nuts are 1/2" slotted hex nuts, 20 NF, Grade 5 and three are used per tractor. They are made of Zinc.
