RH Tie Rod End Fits Case/International Harvester Replaces A39119

RH Tie Rod End Fits Case/International Harvester Replaces A39119

£27.00 GBP
£27.00 GBP
Sale Sold out
Shipping calculated at checkout.

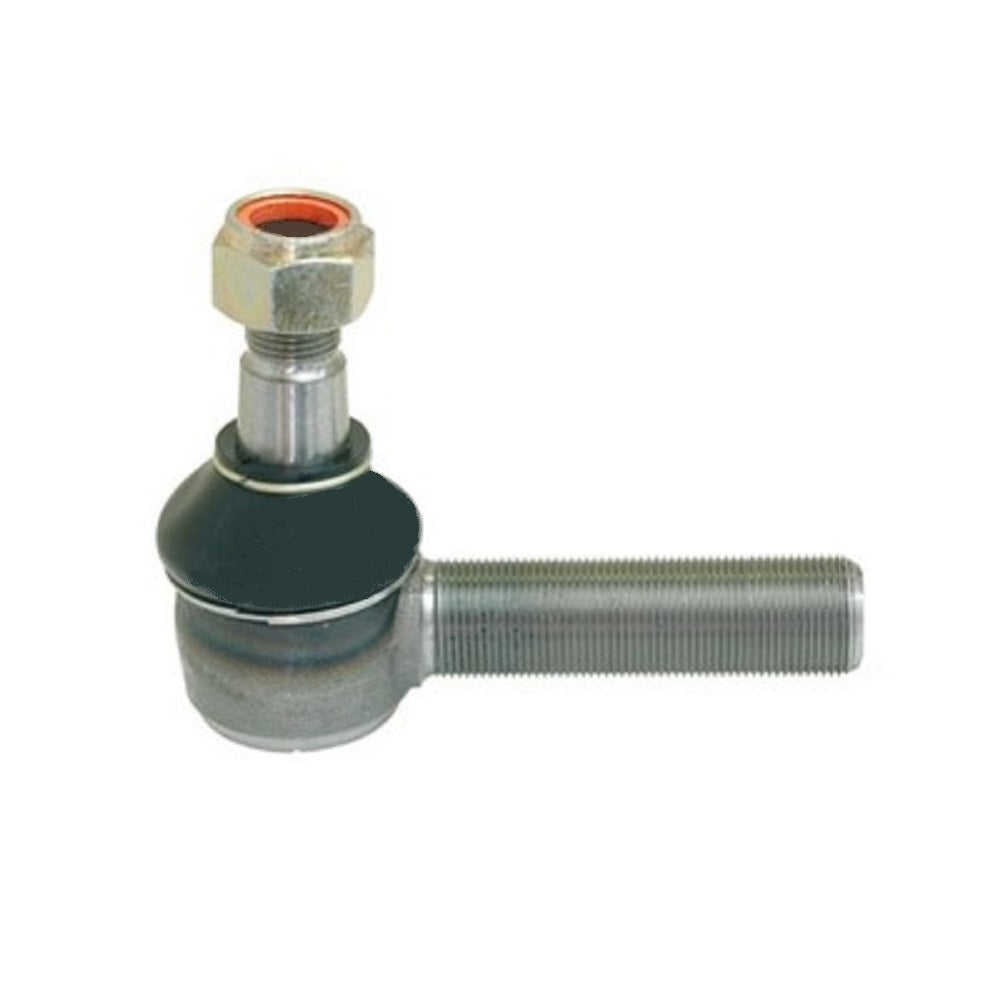

One New Aftermarket RH Tie Rod End



Tech Info:
Right Hand

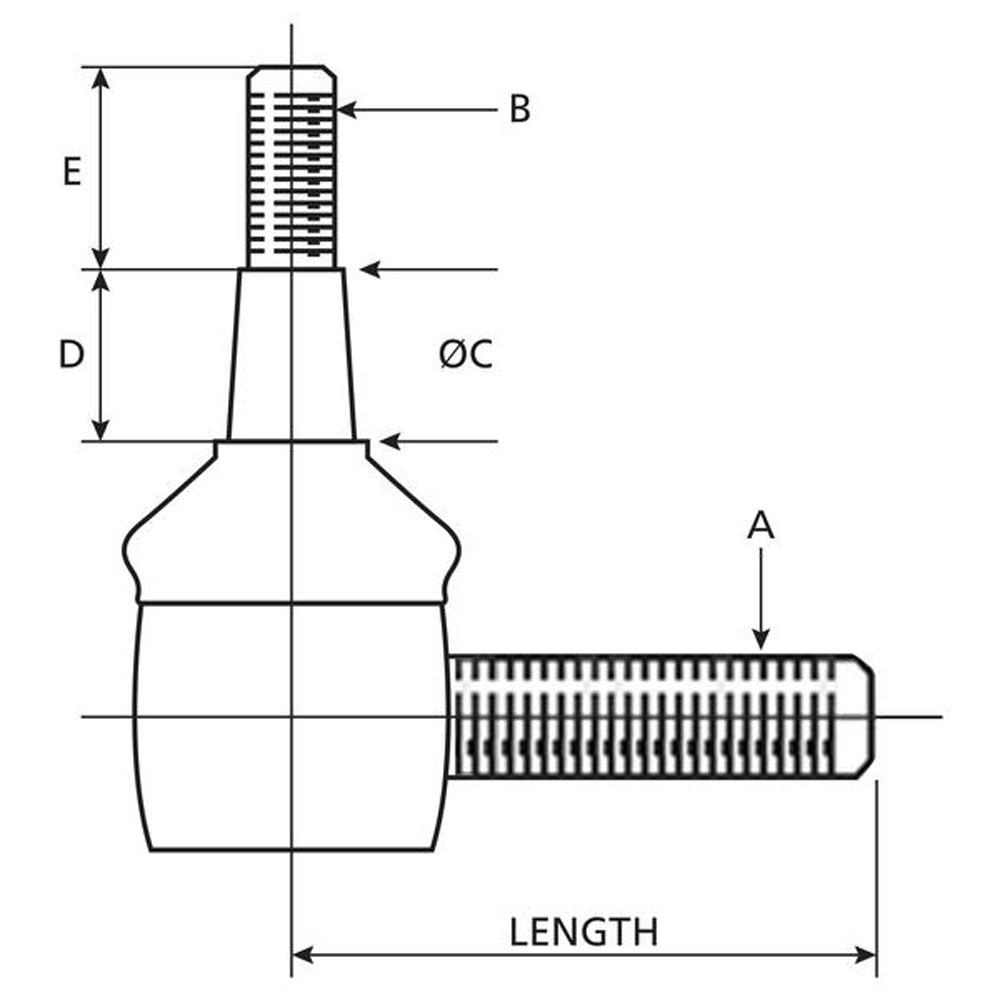

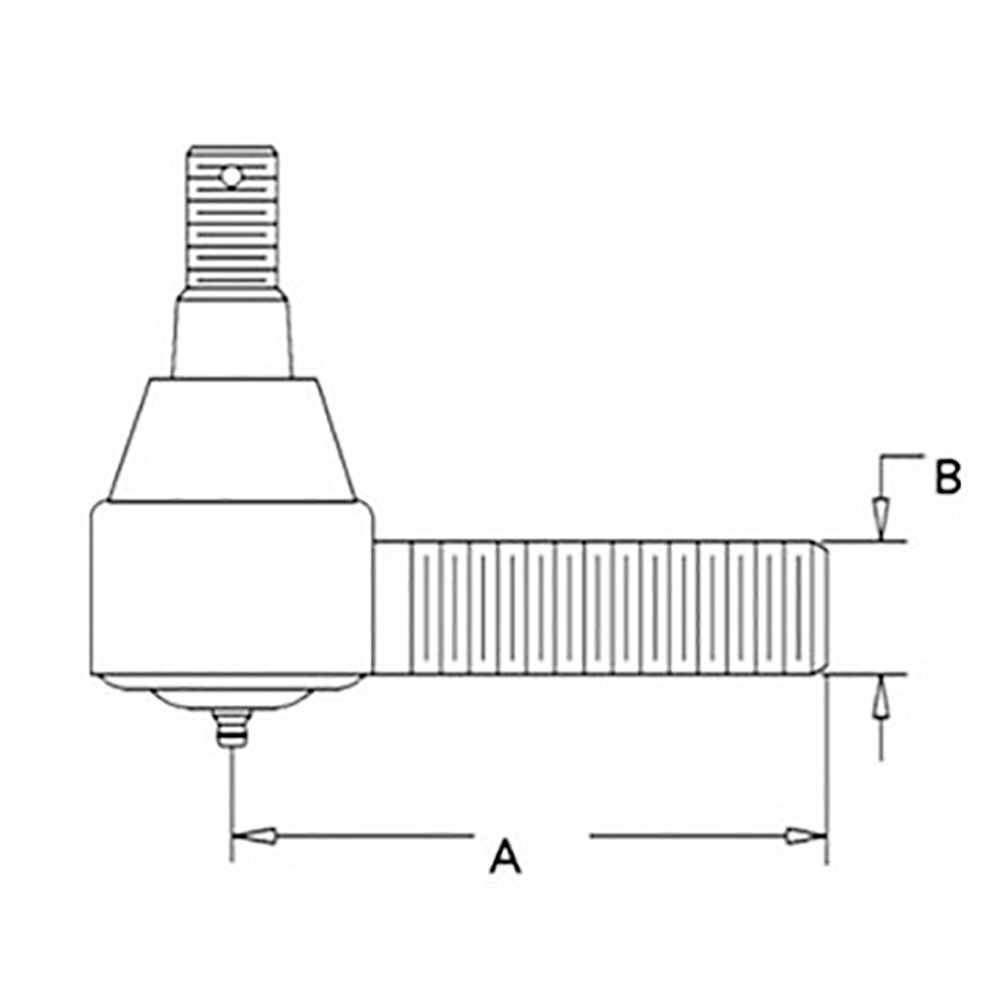

Thread size (major diameter of the male thread): M24 x 1.5
Thread size (stud thread/upper threaded portion): M18 x 1.5
Taper diameter (large end of the tapered stud): 21.6-20mm/ 0.85" - 0.79"
Taper length (length of the tapered section): 16.5mm/0.65"



Made to Fits Case/International Harvester:
 Models: 480B, 480C, 480D, 480E, 580, 580 SUPER D, 580B, 580C, 580D, 580E, 580F, 580G, 580SE, 584D, 584E, 584FL, 585D, 585E, 586D, 586E, 586FL
 Replaces Part Number(s): K260254, K262982, G45368, A39119, K262888, K262809


Models This Part Fits:

480C, 586D, 480E, 480B, 580E, 586E, 585E, 580B, 580F, 586FL, 580, 584E, 585D, 584FL, 584D, 580G, 580C, 580SE, 580 SUPER D, 580D, 480D

Additional Information:

Right Hand Thread size (major diameter of the male thread): M24 x 1.5 Thread size (stud thread/upper threaded portion): M18 x 1.5 Taper diameter (large end of the tapered stud): 21.6-20mm/ 0.85" - 0.79" Taper length (length of the tapered section): 16.5mm/0.65"

Reference Numbers:

K260254, K262982, G45368, A39119, K262888, K262809
