A147121 Steering Arm Right Hand Fits Case 2090 2290 2294 2390 2590 Tractors
A147121 Steering Arm Right Hand Fits Case 2090 2290 2294 2390 2590 Tractors
Couldn't load pickup availability

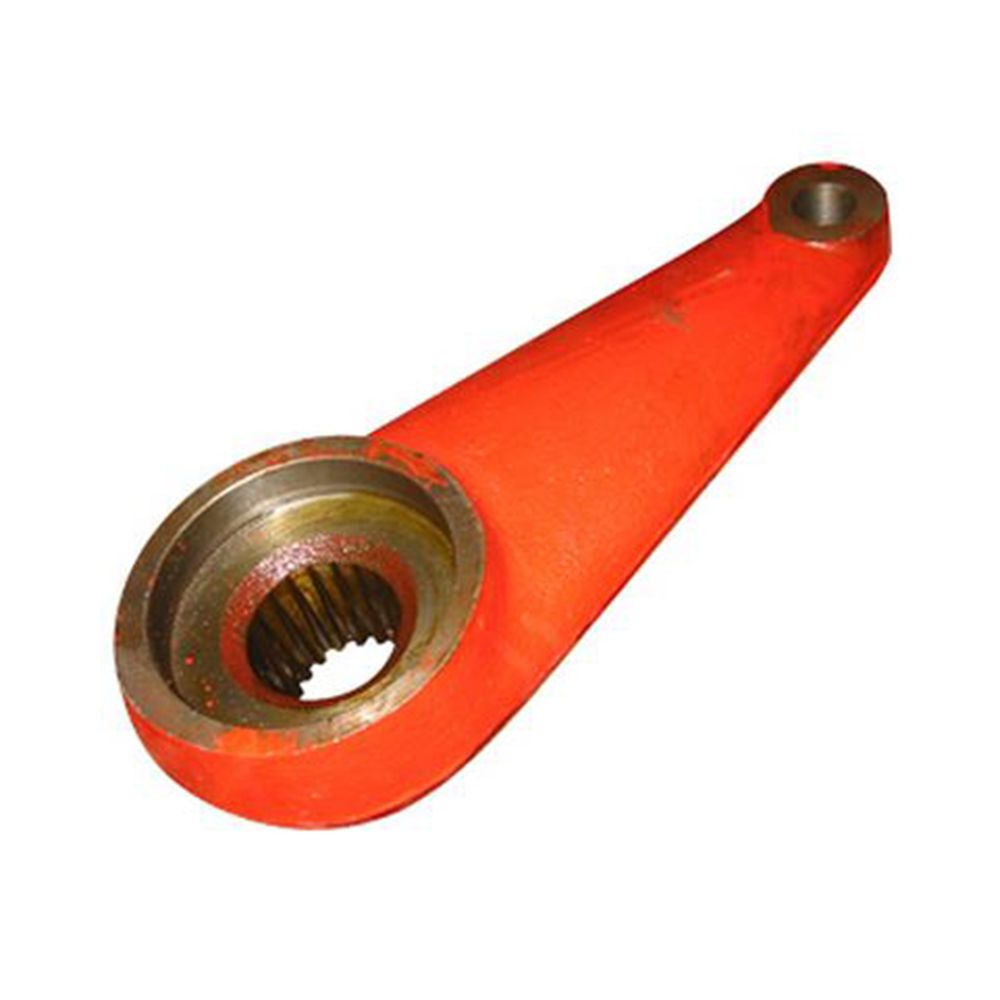

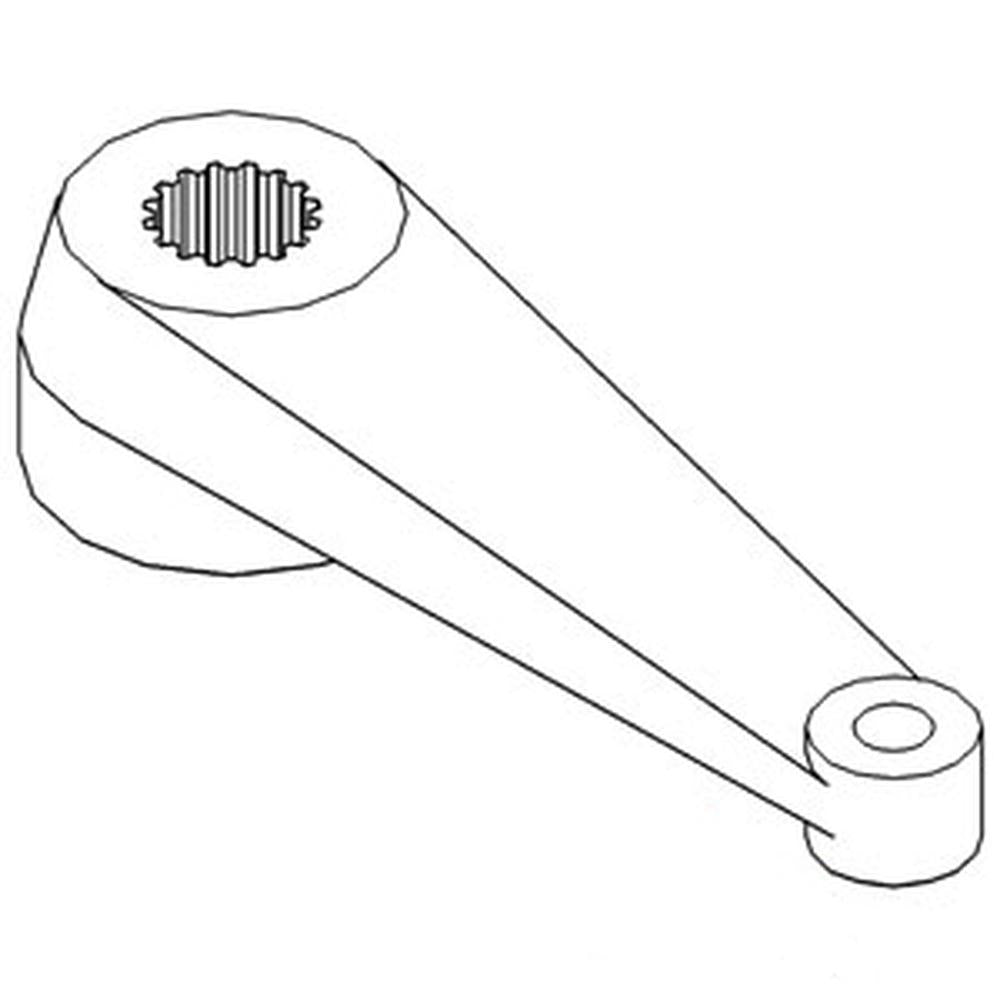

One New Aftermarket Replacement Right Hand Steering Arm Fits Case and Fits Case IH Tractors
This right hand (RH) steering arm is a direct aftermarket replacement for the front axle steering assembly on Fits Case and Fits Case IH two-wheel drive (2WD) tractors. The arm features a 20-tooth tapered spline hole and measures 11.5 inches in length. Note: On 2090, 2290, and 2294 models, this arm fits tractors equipped with the 110-inch (heavy duty) wheel base front axle. The 2390, 2394, 2590, and 2594 used only the heavy duty axle. Verify your front axle type before ordering.
Specifications
- Side: Right Hand (RH)
- Spline Count: 20 Teeth, Tapered
- Length: 11.5 inches
- Weight: 11 lbs
- Drive Type: 2WD front axle
Compatible Models
Fits Case / Fits Case IH Tractors: 2090 (110-inch wheel base), 2290 Late (110-inch wheel base), 2294, 2390, 2394, 2590, 2594
Replaces Part Number(s):
A147121
Aftermarket Interchange Numbers
AMA147121 (Abilene Machine), A-A147121 (A&I Products), 100339
New aftermarket replacement part - not remanufactured, not used.
