A-W33-AI Bearing (14276)

Name: A-W33-AI Bearing (14276)
SKU: A-W33-AI
Price: 28.0 USD
Availability: InStock

A-W33-AI Bearing (14276)

£28.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

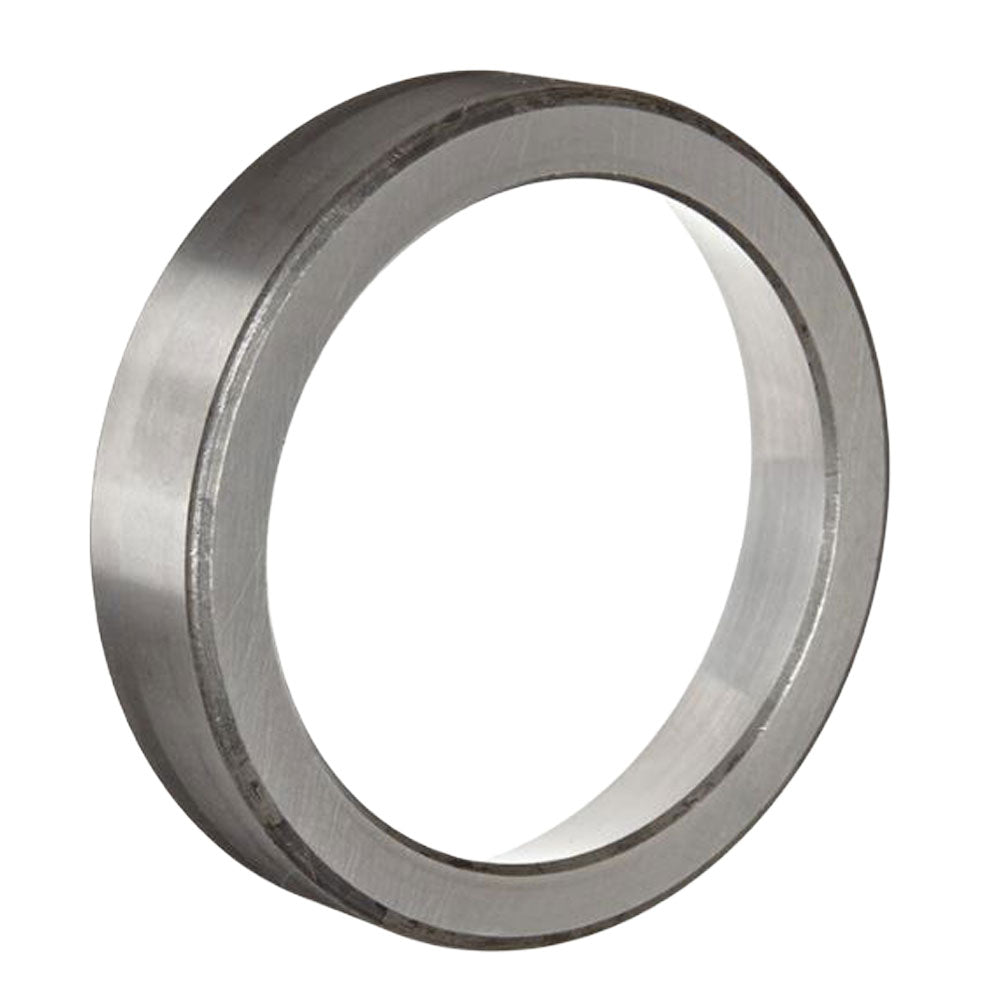

One New Aftermarket Replacement Tapered Roller Bearing Cup (14276) for Agriculture and Construction Equipment

This aftermarket replacement bearing cup (outer race) is a tapered roller bearing cup in the Timken 14000 series, designed to serve as the outer ring in a single-row tapered roller bearing assembly. It pairs with a matching cone (inner ring assembly) and handles both radial and axial loads in wheel, axle, and shaft applications across a wide range of agricultural equipment, construction equipment, and other machinery. When replacing, both the cup and cone should be replaced together for maximum reliability and service life.

Specifications

Type: Single Tapered Roller Bearing Cup (Outer Race)
Series: Timken 14000
Outside Diameter: 2.717 in.
Cup Width: 0.625 in.
Bearing Width: 0.7813 in.
Fillet Radius: 0.05 in.
Material: Chrome Steel / Fits Case Carburized Steel
Lubrication Hole: None
Finish: Uncoated
Compatible Cones: 14116, 14117A, 14118, 14118AS, 14124, 14125A, 14130, 14131, 14137A, 14138A, 14139

Compatible Models

Fits Case/International Harvester Combines: 1400, 1640, 1644, 1660, 1666, 1680, 1688, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588

Fits Case/International Harvester Cotton Pickers: 82, 84, 95

Fits Case/International Harvester Other: 303, 335, 403, 403F, 403G, 445, 503, 503I, 504C, 504F, 504G, 504H, 504I, 504I SILAGE, 504L, 505I, 505L, 555XL, 554XL, 602, 604J, 604K, 604L, 604XL, 605F, 605G, 605H, 605J, 605K, 605L, 605XL, 615, 670, 715, 815

Minneapolis-Moline: 5 STAR, G1000, JET STAR 3, JET STAR 4, M5, R-21, R-23

Fits John Deere: 5400 REBEL, 5500 REBEL

GEHL: 4901-4938

Additional Compatible Brands: Fits Allis Chalmers, Vermeer, Amco, Fits Massey Ferguson, Riverside Tractor, Kewanee, Taylorway, Hesston, Rhino, Fits Ford/New Holland, Krause, Fits Woods, Bush Hog, Fits Caterpillar -- see ref_numbers for applicable cross-references.

Replaces Part Number(s):

14276, 14276TIM, W33, 710350, 70209890, 74253284, 80105, 9N744, 116210, W10A7575, 526WD, 7069WD, 520031, 1715019, 203021, 8J0422, X5623, 54628A, 016234X1, 113BH, JD7409, 70025, A29977, 10261

Aftermarket Interchange Numbers

BR14276, TIM14276, TRB14276, BT14276, TWD14276, 14276TI, 760-14276TIM, E-TM14276, SBN 14276TRB, 144083C1, 184077C1, 204749C1, 565212R1, 659839R1, 706821R1, 54628H, JD34962, A26996, D21444, D31970

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1666, 815, 605G, 504I SILAGE, 605K, 403F, JET STAR 4, 5 STAR, 2577, 5400 REBEL, 504F, 335, 303, 1660, 715, 95, 403, 604L, 1640, 503I, R-23, G1000, 2377, M5, 503, 2344, 1400, 602, 2588, 605J, 2166, 82, 555XL, JET STAR 3, 504H, 1644, 504L, 2366, 5500 REBEL, Outer Ring Of A Tapered Roller Bearing, 554XL, 504G, 604J, 1688, 615, 605F, R-21, 4901-4938, 604XL, 505L, 445, 605XL, 403G, 505I, 605H, 670, 605L, 84, 504C, 2188, 504I, 1680, 604K, 2388

Additional Information:

Outside Diameter 2.717" Radius .05" Width .625"

Reference Numbers:

70025, W33, 14276, A29977, 526WD, 7069WD, 70209890, 74253284, 113BH, 54628A, 9N744, 116210, 710350, 520031, JD7409, X5623, 1715019, 016234X1, 80105, 203021, 10261, 14276TIM, 8J0422, W10A7575
